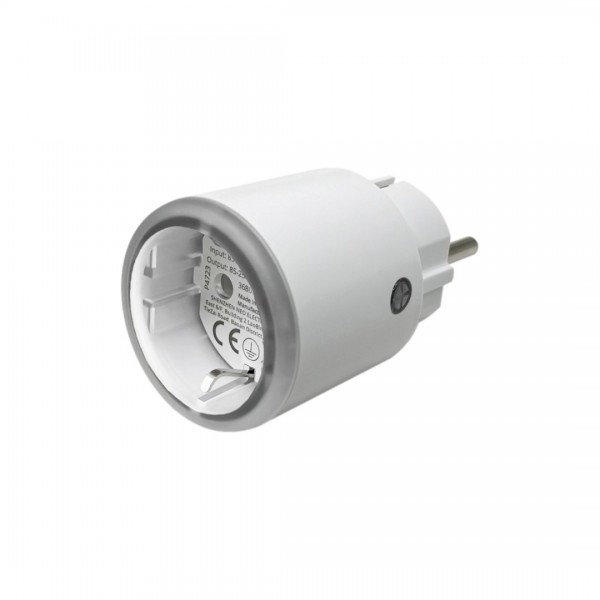

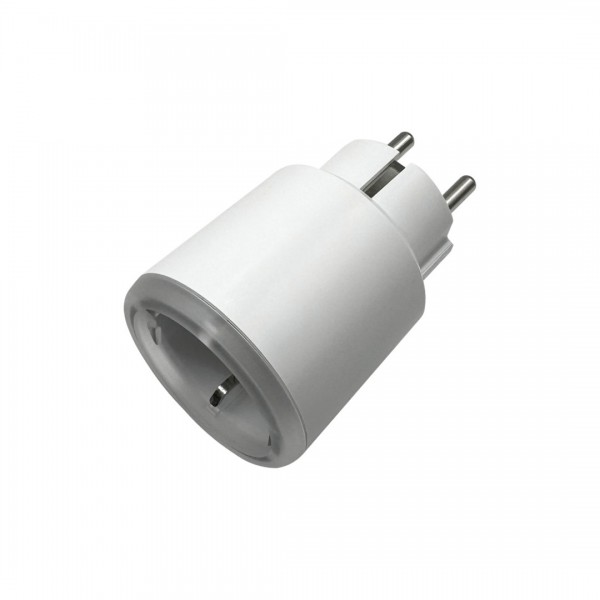

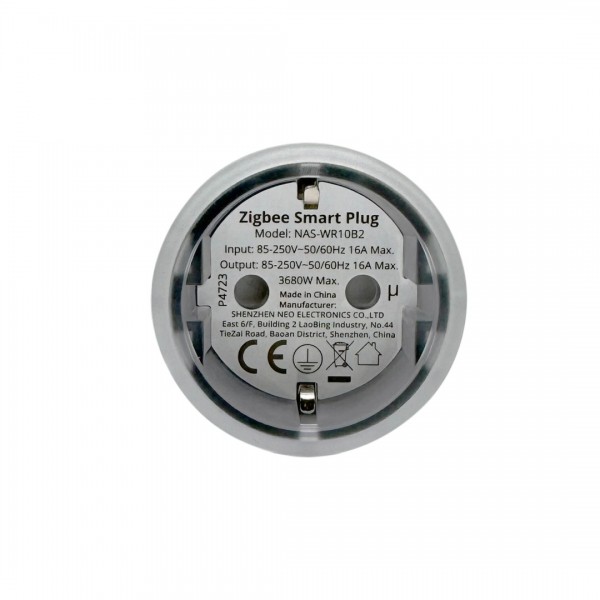

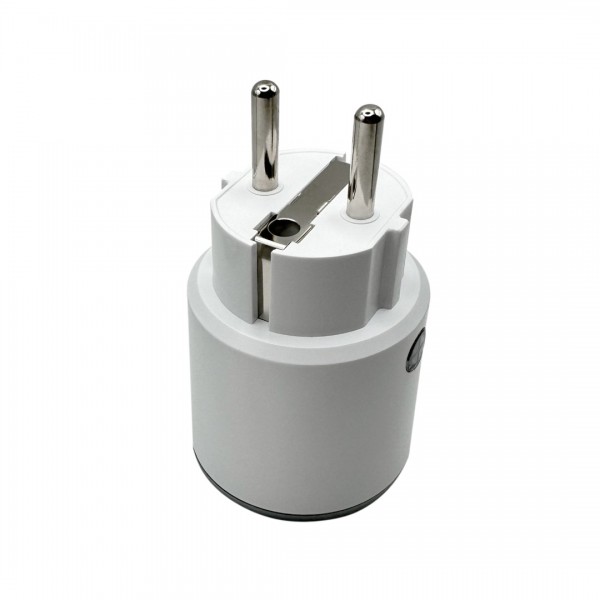

NEO Zigbee Smart Power Plug with Energy Meter - 16A

NEO Zigbee Smart Power Plug with Energy Meter - 16A
NEO Zigbee Smart Power Plug with Energy Meter - 16A
NEO Zigbee Smart Power Plug with Energy Meter - 16A
NEO Zigbee Smart Power Plug with Energy Meter - 16A
NEO Zigbee Smart Power Plug with Energy Meter - 16A
NEO Zigbee Smart Power Plug with Energy Meter - 16A
NEO Zigbee Smart Power Plug with Energy Meter - 16A
NEO Zigbee Smart Power Plug with Energy Meter - 16A
NEO Zigbee Smart Power Plug with Energy Meter - 16A
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005819
€10.50
Ex Tax: €8.68
5 or more €10.00
10 or more €9.50
20 or more €9.00
50 or more €8.75
100 or more €8.50

With this wireless Zigbee plug you can easily switch devices in the house on and off and the built-in energy meter also gives you useful insight into the power consumption of the device. The energy meter offers insight in the mains voltage, current, power and energy consumption. In addition, the plug can also measure generated energy by, for example, a solar panel (the measured current and power values are always positive so the difference between generation and consumption cannot be measured). The plug can be used with various Home Automation platforms, including Tuya and Home Assistant. This does require a Zigbee bridge/gateway/coordinator. You also have the option to use the button on the smart plug to switch it on or off, with an LED indicating the status.

See the files under the tab "Downloads" for, among other things, the user manual.

Note: The plug may not be compatible with all Home Automation platforms, we have tested the plug with Tuya and Home Assistant (via the ZHA integration). Also with Philips Hue, however, only on-off switching works (not the energy measurement).

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over NEO Zigbee Smart Power Plug with Energy Meter - 16A

This product has 6 review(s) in total.

Specifications

General
Brand NEO
Manufacturer model/SKU NAS-WR10B2
Norm conformity RoHS
CE
Minimum operating humidity [%R.H.] 20
Maximum operating humidity [%R.H.] 85
Minimum operating temperature [°C] 0
Maximum operating temperature [°C] 40
Features Electric switch
Current sensor
Enclosure
General physical appearance
Main color White
Weight [g] 81
Dimension X [mm] 50
Dimension Y [mm] 50
Dimension Z [mm] 48
(excl. plug)
Form factor Module (general)
General electrical properties
Minimum supply voltage [V AC] 85
Maximum supply voltage [V AC] 250
Wireless communication
Interface(s) Zigbee
Maximum communication distance [m] 25
Zigbee frequency [GHz] 2.4
Zigbee device type(s) Router
Current sensor
Number of channels 1
Suitable current AC
Minimum measuring range [A] 0.0
Maximum measuring range [A] 16
Switch
Switching method Electrical
Switch type Mechanical relay
Number of channels/gangs 1
Contact(s) NO (normally open)
Maximum switching voltage [V AC] 250
Switching voltage equal to supply voltage Yes
Maximum switching current per channel (resistive load) [A] 16
Connectors
Power supply connector(s) Socket Type E and F male (CEE 7/7)
Switch connector(s) Socket Type F female (CEE 7/3)
Measure pin connector(s) Socket Type F female (CEE 7/3)
Zigbee antenna connector Built-in antenna
Package contents
Package contents 1x Smart plug
