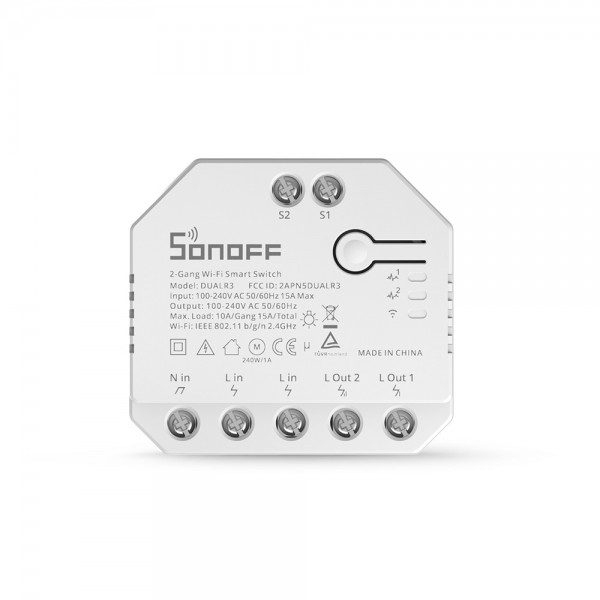

Sonoff Dual R3 - Wi-Fi Switch with Power Meter

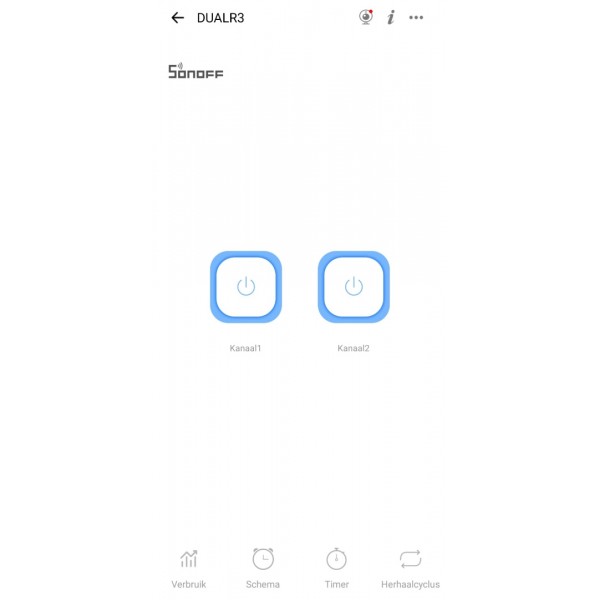

The Sonoff Dual R3 is a very handy double Wi-Fi switch with timer and energy meter for IoT applications. It can be controlled with Android or iOS with the eWeLink app. This Wi-Fi switch is also compatible with Amazon Alexa, Google Assistant, IFTTT and Google Nest. In addition to the wireless control, it is also possible to operate the module with an existing (double) mains switch. Due to its small size, the device can be built into a flush-mounted box, and it can also be mounted on a DIN rail with the supplied attachment.

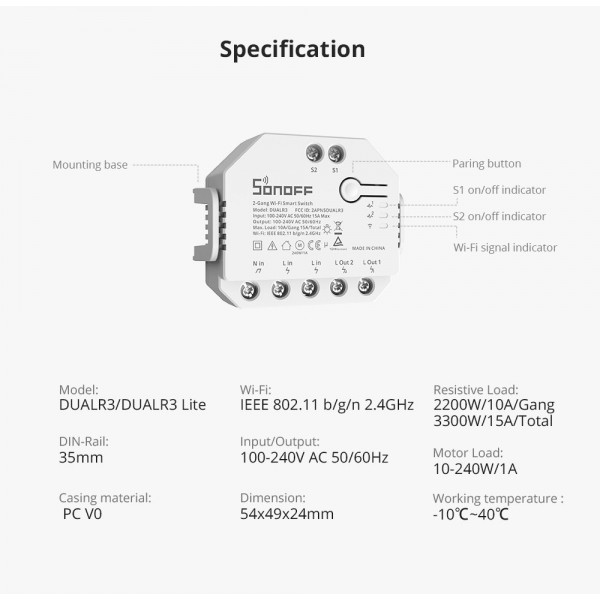

Specifications:

• Supply voltage: 100 - 240V AC (50/60Hz)
• Switching voltage: 100 - 240V AC (same as supply voltage)
• Maximum switching current per channel: 10A (resistive load), 1A (inductive load, a motor for example)
• Maximum switching current combined: 15A
• Maximum switching power per channel: 2200W (resistive load), 240W (inductive load, a motor for example)
• Maximum switching power combined: 3300W
• Number of channels: 2
• Wireless standard: 802.11b/g/n
• Security mechanism: WPA-PSK/WPA2-PSK
• Operating temperature: -10 - 40ºC
• Suitable DIN rail type: EN60715 (TS35/7.5 and TS35/15)
• Dimensions: 54 x 49 x 24mm

Package contents:

• 1x Sonoff Dual R3
• 1x Mounting piece
• 1x Quick installation guide

See the following page for more information: Sonoff Dual R3 Manuals
