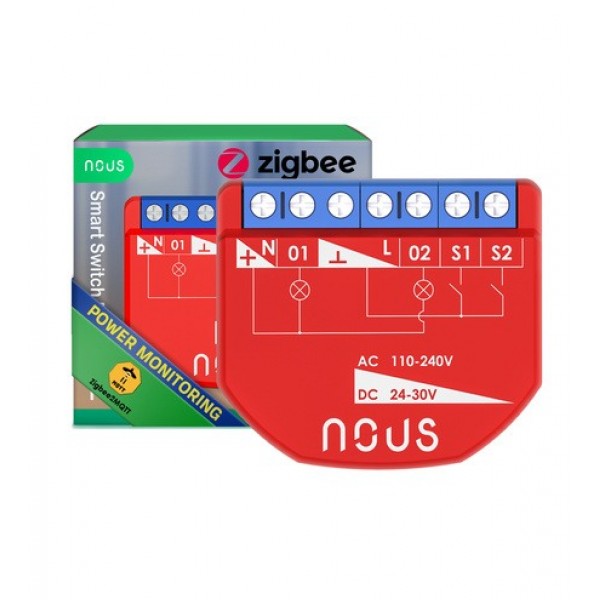

Nous B3Z Zigbee Smart Switch Module - 2 Channels - with Power Monitoring

New

Nous B3Z Zigbee Smart Switch Module - 2 Channels - with Power Monitoring

Availability: Directly available from warehouse in Eindhoven
SKU: 007426

Based on 0 review(s) - Write a review

€22.25

Ex Tax: €18.39

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

The Nous B3Z is a versatile and smart Zigbee switch with 2 channels and power monitoring. The module can be powered by both AC voltage and DC voltage (not simultaneously).

See the following page for more information: Manufacturer page

Note: A Zigbee bridge is required, for example: Sonoff ZBDongle-E (in combination with, for example, Home Assistant).

Please login or register to review

Reviews Over Nous B3Z Zigbee Smart Switch Module - 2 Channels - with Power Monitoring

Average Rating:

This product has 0 review(s) in total.

Tags: Nous B3Z Zigbee Smart Switch Module - 2 Channels - with Power Monitoring , NS-B3Z , Energy

Specifications

General
Brand	NOUS
Manufacturer model/SKU	B3Z
Norm conformity	RoHS CE
Minimum operating temperature [°C]	0
Maximum operating temperature [°C]	40
Features	Electric switch Current sensor Enclosure Voltage sensor
General physical appearance
Main color	Red
Weight [g]	28
Dimension X [mm]	42
Dimension Y [mm]	37
Dimension Z [mm]	16
Water and dust protection	IP20
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V AC]	100
Maximum supply voltage [V AC]	240
Minimum supply voltage [V DC]	24
Maximum supply voltage [V DC]	30
Wireless communication
Interface(s)	Zigbee
Zigbee frequency [GHz]	2.4
Zigbee device type(s)	Router
Current sensor
Number of channels	2
Suitable current	AC DC
Minimum measuring range [A]	0.0
Maximum measuring range [A]	10
Switch
Switching method	Electrical
Switch type	Mechanical relay
Number of channels/gangs	2
Contact(s)	NO (normally open)
Maximum switching voltage [V AC]	240
Maximum switching voltage [V DC]	30
Switching voltage equal to supply voltage	Yes
Maximum switching current per channel (resistive load) [A]	10
Maximum switching current (channels combined) [A]	16
Connectors
Power supply connector(s)	Screw terminal
Switch connector(s)	Screw terminal
Measure pin connector(s)	Screw terminal
Zigbee/Thread antenna connector	Built-in antenna
Enclosure
Material	Polycarbonate (PC) V0
Package contents
Package contents	1x Switch module
