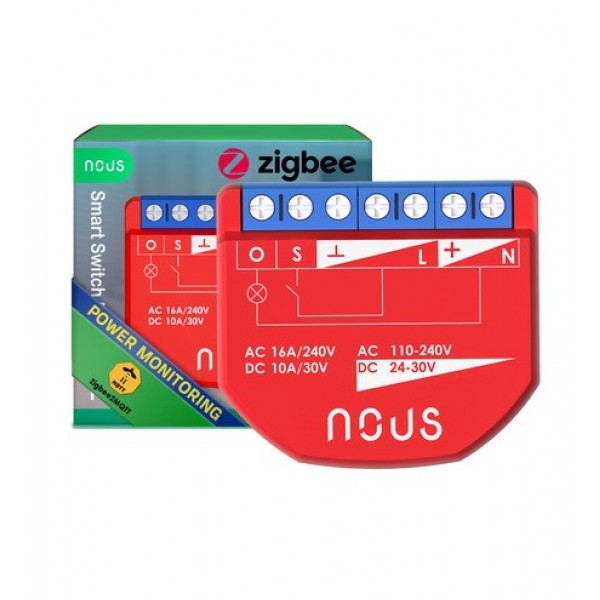

Nous B2Z Zigbee Smart Switch Module - 1 Channel - with Power Monitoring

Nous B2Z Zigbee Smart Switch Module - 1 Channel - with Power Monitoring
New 2-4 Weeks
Nous B2Z Zigbee Smart Switch Module - 1 Channel - with Power Monitoring
  • Availability: 2-4 Weeks
  • SKU: 007423
Based on 0 review(s) - Write a review
€19.75
Ex Tax: €16.32
Add to Cart
Add to wishlist

The Nous B2Z is a versatile and smart Zigbee switch with power monitoring. The module can be powered by both AC voltage and DC voltage (not simultaneously).

See the following page for more information: Manufacturer page

Note: A Zigbee bridge is required, for example: Sonoff ZBDongle-E (in combination with, for example, Home Assistant).

Please login or register to review

Reviews Over Nous B2Z Zigbee Smart Switch Module - 1 Channel - with Power Monitoring

This product has 0 review(s) in total.

Tags: Nous B2Z Zigbee Smart Switch Module - 1 Channel - with Power Monitoring , NS-B2Z , Energy

Specifications

General
Brand NOUS
Manufacturer model/SKU B2Z
Norm conformity CE
RoHS
Minimum operating temperature [°C] 0
Maximum operating temperature [°C] 40
Features Enclosure
Current sensor
Voltage sensor
Electric switch
General physical appearance
Main color Red
Weight [g] 27
Dimension X [mm] 42
Dimension Y [mm] 37
Dimension Z [mm] 16
Water and dust protection IP20
Form factor Module (general)
General electrical properties
Minimum supply voltage [V AC] 100
Maximum supply voltage [V AC] 240
Minimum supply voltage [V DC] 24
Maximum supply voltage [V DC] 30
Wireless communication
Interface(s) Zigbee
Zigbee frequency [GHz] 2.4
Zigbee device type(s) Router
Current sensor
Number of channels 1
Suitable current AC
DC
Minimum measuring range [A] 0
Maximum measuring range [A] 16
Switch
Switching method Electrical
Switch type Mechanical relay
Number of channels/gangs 1
Contact(s) NO (normally open)
Maximum switching voltage [V AC] 240
Maximum switching voltage [V DC] 30
Switching voltage equal to supply voltage Yes
Maximum switching current per channel (resistive load) [A] 16
(@240V AC)
10A
(@30V DC)
Connectors
Power supply connector(s) Screw terminal
Switch connector(s) Screw terminal
Measure pin connector(s) Screw terminal
Zigbee/Thread antenna connector Built-in antenna
Enclosure
Material Polycarbonate (PC) V0
Package contents
Package contents 1x Switch module
