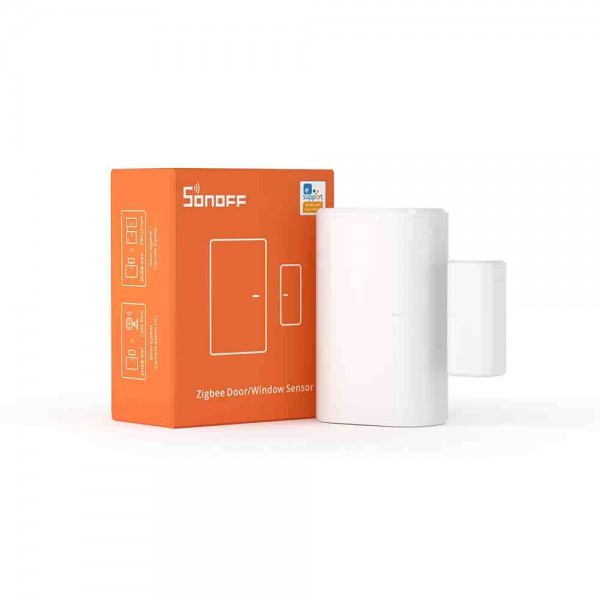

Sonoff SNZB-04P - Wireless Door/Window Sensor - Zigbee

Sonoff SNZB-04P - Wireless Door/Window Sensor - Zigbee
Sonoff SNZB-04P - Wireless Door/Window Sensor - Zigbee
Sonoff SNZB-04P - Wireless Door/Window Sensor - Zigbee
Sonoff SNZB-04P - Wireless Door/Window Sensor - Zigbee
Sonoff SNZB-04P - Wireless Door/Window Sensor - Zigbee
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006372
Based on 0 review(s) - Write a review
€11.50
Ex Tax: €9.50
Add to Cart
Add to wishlist

The SNZB-04P from Sonoff is the improved version of the SNZB-04. With this device it is easy to send a signal to other devices when a door or window is opened in order to turn on a lamp, for example. It can be controlled using Android or iOS with the eWeLink app. The sensor can also be used with other home automation platforms such as Home Assistant.

Note: A Zigbee bridge is required, for example: Sonoff ZB Bridge-P (in combination with eWeLink) or Sonoff ZBDongle-E (in combination with, for example, Home Assistant).

See the following page for more information: Manufacturer page

Please login or register to review

Reviews Over Sonoff SNZB-04P - Wireless Door/Window Sensor - Zigbee

This product has 0 review(s) in total.

Tags: Sonoff , Zigbee , Sonoff SNZB-04P - Wireless Door/Window Sensor - Zigbee , 006372 , Sonoff , SNZB-04P , Battery holder , Object detection sensor , Enclosure , Zigbee

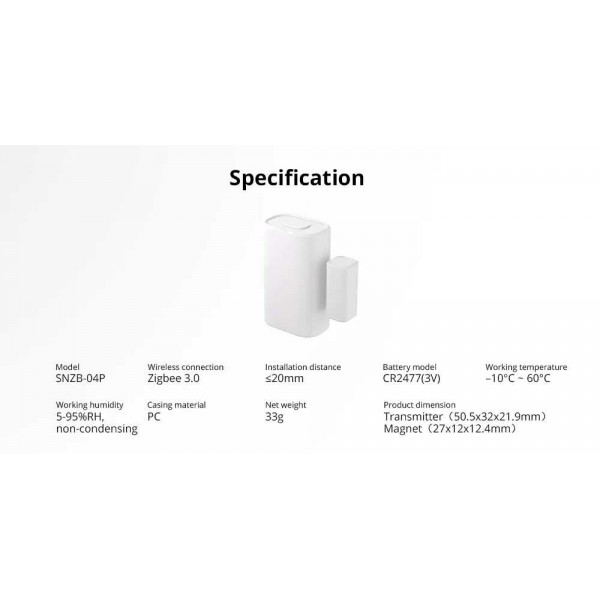

Specifications

General
Brand Sonoff
Manufacturer model/SKU SNZB-04P
Norm conformity CE
FCC
RoHS
Minimum operating humidity [%R.H.] 5
Maximum operating humidity [%R.H.] 95
Minimum operating temperature [°C] -10
Maximum operating temperature [°C] 60
Features Enclosure
Battery holder
Object detection sensor
General physical appearance
Main color White
Weight [g] 33
(complete set)
Dimension X [mm] 51
(sensor)
27
(magneet)
Dimension Y [mm] 32
(sensor)
12
(magneet)
Dimension Z [mm] 20
(sensor)
12
(magneet)
Mounting options Adhesive layer
Form factor Module (general)
General electrical properties
Maximum supply voltage [V DC] 3
(via battery)
Wireless communication
Interface(s) Zigbee
Zigbee chip/SoC EFR32MG22
Zigbee frequency [GHz] 2.4
Zigbee device type(s) End device
Object detection sensor
Type Magnetic
Detection type Threshold
Adjustable detection distance No
Adjustable sensitivity No
Minimum measuring range [cm] 2
Maximum measuring range [cm] 2
Battery holder
Suitable battery form factor Button cell 2477
Suitable number of batteries 1
Connectors
Zigbee/Thread antenna connector Built-in antenna
Enclosure
Material Polycarbonate (PC)
Package contents
Package contents 1x SNZB-04P sensor
1x SNZB-04P detection magnet
1x CR2477 battery
