Sonoff SNZB-02WD - Waterproof Temperature and Humidity Sensor with Display - Zigbee

Sonoff SNZB-02WD - Waterproof Temperature and Humidity Sensor with Display - Zigbee
Sonoff SNZB-02WD - Waterproof Temperature and Humidity Sensor with Display - Zigbee
Sonoff SNZB-02WD - Waterproof Temperature and Humidity Sensor with Display - Zigbee
Sonoff SNZB-02WD - Waterproof Temperature and Humidity Sensor with Display - Zigbee
Sonoff SNZB-02WD - Waterproof Temperature and Humidity Sensor with Display - Zigbee
Sonoff SNZB-02WD - Waterproof Temperature and Humidity Sensor with Display - Zigbee
Sonoff SNZB-02WD - Waterproof Temperature and Humidity Sensor with Display - Zigbee
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007588
Based on 0 review(s) - Write a review
€17.75
Ex Tax: €14.67
Add to Cart
Add to wishlist

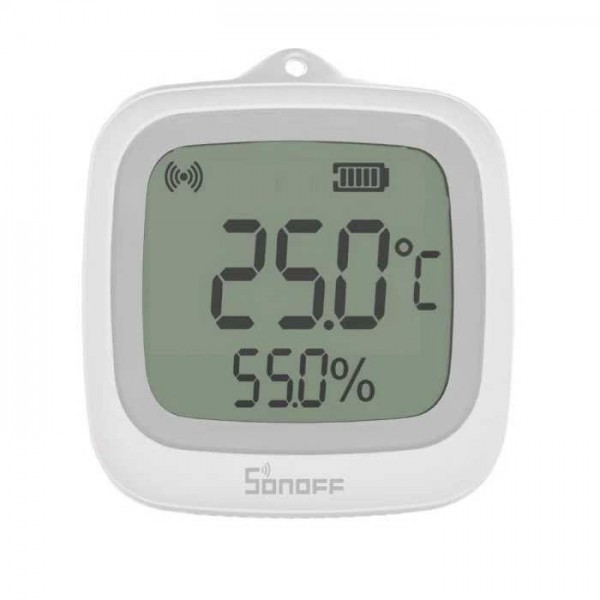

The Sonoff SNZB-02WD is a very handy temperature and humidity sensor and works with the Zigbee wireless protocol. With this sensor module, the temperature and humidity can easily be transmitted to other devices to, for example, turn on an air conditioner. This sensor also has a screen, which allows you to view the temperature, humidity and battery status. It can be controlled with Android or iOS using the eWeLink app.

Note: A Zigbee bridge is required, for example: Sonoff ZB Bridge-P (in combination with eWeLink) or Sonoff ZBDongle-E (in combination with, for example, Home Assistant).

See the following page for more information: Wiki

Please login or register to review
Tags: Air , Humidity , Sonoff SNZB-02WD - Waterproof Temperature and Humidity Sensor with Display - Zigbee , 007588 , Sonoff , SNZB-02WD , Display , Battery holder , Temperature sensor , Humidity sensor , Enclosure , Zigbee

Specifications

General
Brand Sonoff
Manufacturer model/SKU SNZB-02WD
Norm conformity CE
FCC
RoHS
Minimum operating humidity [%R.H.] 0
Maximum operating humidity [%R.H.] 100
Minimum operating temperature [°C] -20
Maximum operating temperature [°C] 60
Features Display
Enclosure
Battery holder
Humidity sensor
Temperature sensor
General physical appearance
Main color White
Weight [g] 65
Dimension X [mm] 63
Dimension Y [mm] 59
Dimension Z [mm] 22
Water and dust protection IP65

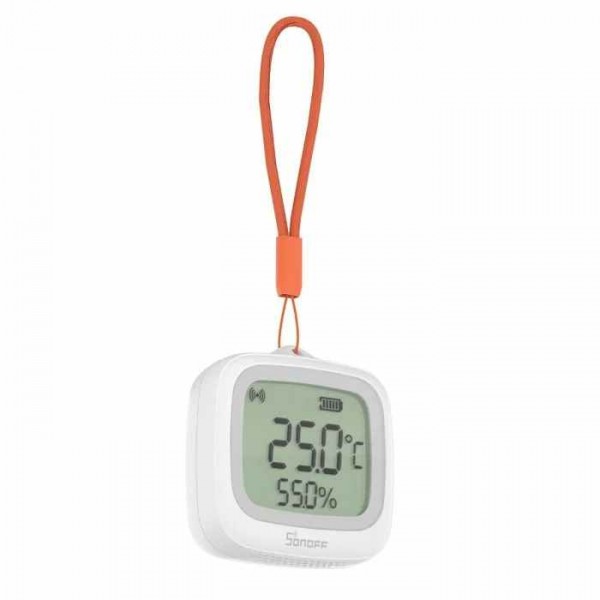

Mounting options Cord
Magnets
Form factor Module (general)
General electrical properties
Maximum supply voltage [V DC] 3
(via battery)
Wireless communication
Interface(s) Zigbee
Zigbee chip/SoC TLSR8656
Zigbee frequency [GHz] 2.4
Zigbee device type(s) End device
Display
Type LCD
Screen diagonal [inch] 2.2
Display shape Rectangular
Pixel colors Black
Backlight color None
Temperature sensor
Minimum measuring range [°C] -20
Maximum measuring range [°C] 60
Accuracy [±°C] 0.2
Humidity sensor
Minimum measuring range [% R.H.] 0
Maximum measuring range [% R.H.] 100
Accuracy [±%] 2.0
Battery holder
Suitable battery form factor Button cell 2477
Suitable number of batteries 1
Connectors
Zigbee/Thread antenna connector Built-in antenna
Enclosure
Material ABS
Polycarbonate (PC)
Package contents
Package contents 1x SNZB-02WD
1x CR2477 battery
1x Quick guide
1x Cord
1x Reset pin
