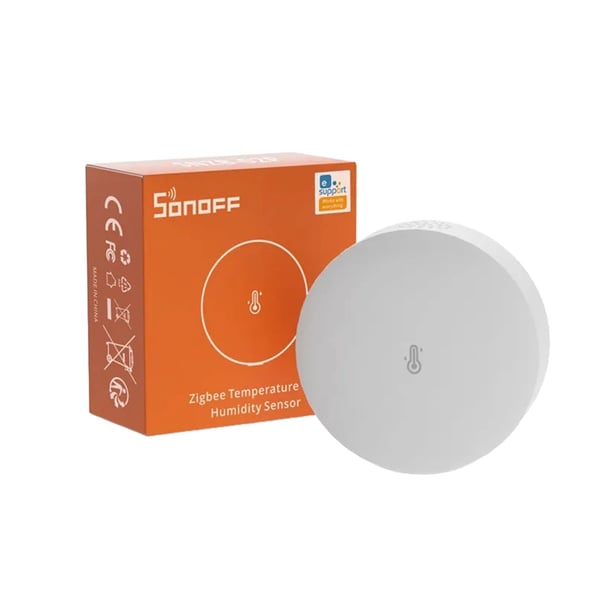

Sonoff SNZB-02P - Temperature and Humidity Sensor - Zigbee

Sonoff SNZB-02P - Temperature and Humidity Sensor - Zigbee
Sonoff SNZB-02P - Temperature and Humidity Sensor - Zigbee
Sonoff SNZB-02P - Temperature and Humidity Sensor - Zigbee
Sonoff SNZB-02P - Temperature and Humidity Sensor - Zigbee
Sonoff SNZB-02P - Temperature and Humidity Sensor - Zigbee
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005714
€13.00
Ex Tax: €10.74
5 or more €12.75
10 or more €12.50
20 or more €12.25
50 or more €12.00
100 or more €11.75

The Sonoff SNZB-02P is a very handy and compact temperature and humidity sensor that works with the wireless ZigBee protocol. With this sensor module, you can easily transmit the temperature and humidity to other devices to turn on an air conditioner/fan, for example. This sensor can be controlled with Android or iOS using the eWeLink app. The sensor can also be used with other domotica platforms such as Home Assistant.

Note: A ZigBee bridge is required, the following bridge, among others, is suitable for this: Sonoff ZB Bridge-P

See the following page for more information: Manufacturer page

Please login or register to review

Reviews Over Sonoff SNZB-02P - Temperature and Humidity Sensor - Zigbee

This product has 0 review(s) in total.

Specifications

General
Brand Sonoff
Manufacturer model/SKU SNZB-02P
Norm conformity RoHS
CE
FCC
Minimum operating humidity [%R.H.] 5
Maximum operating humidity [%R.H.] 95
Minimum operating temperature [°C] -10
Maximum operating temperature [°C] 60
Features Battery holder
Temperature sensor
Humidity sensor
Enclosure
General physical appearance
Main color White
Weight [g] 27
Dimension X [mm] 45
Dimension Y [mm] 45
Dimension Z [mm] 18
Mounting options Mounting hole(s)
Adhesive layer
Magnets
Form factor Module (general)
General electrical properties
Maximum supply voltage [V DC] 3
(via battery)
Wireless communication
Interface(s) Zigbee
Zigbee chip/SoC EFR32MG22
Zigbee frequency [GHz] 2.4
Zigbee device type(s) End device
Temperature sensor
Sensor (chip) SHT40
Minimum measuring range [°C] -10
Maximum measuring range [°C] 60
Smallest resolution [°C] 0.1
Accuracy [±°C] 0.2
Humidity sensor
Sensor (chip) SHT40
Minimum measuring range [% R.H.] 0
Maximum measuring range [% R.H.] 100
Smallest resolution [%R.H.] 0.1
Accuracy [±%] 2.0
Battery holder
Suitable battery form factor Button cell 2477
Suitable number of batteries 1
Connectors
Zigbee antenna connector Built-in antenna
Enclosure
Material Polycarbonate (PC)

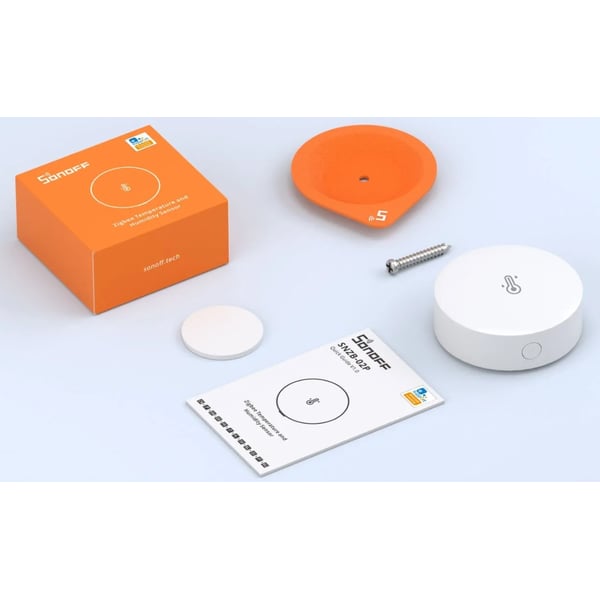

Package contents
Package contents 1x Sonoff SNZB-02P
1x CR2477 battery
1x Icon sticker sheet
1x 3M adhesive
1x Instruction manual
1x 16mm screw
1x Metal mounting plate
