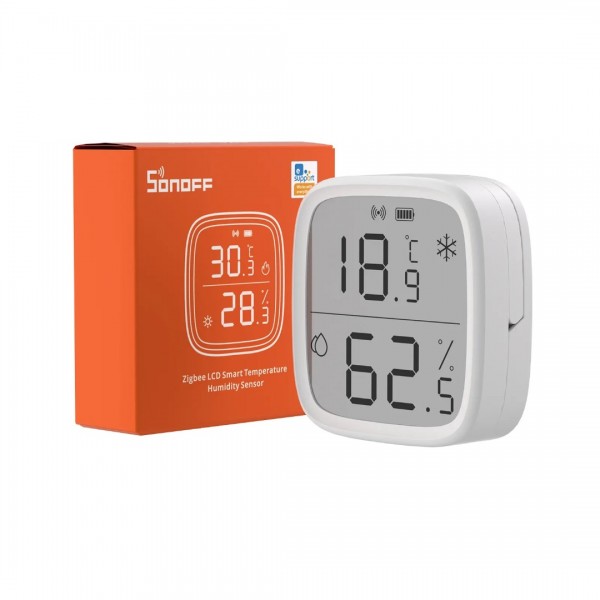

Sonoff SNZB-02D - Temperature and Humidity Sensor with Display - Zigbee

Sonoff SNZB-02D - Temperature and Humidity Sensor with Display - Zigbee
Sonoff SNZB-02D - Temperature and Humidity Sensor with Display - Zigbee
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 004947
Based on 1 review(s) - Write a review
€13.25
Ex Tax: €10.95
5 or more €13.10
10 or more €13.00
20 or more €12.90
50 or more €12.80
100 or more €12.70
Add to Cart
Add to wishlist

The Sonoff SNZB-02D is a very handy temperature and humidity sensor that works with the wireless Zigbee protocol. With this sensor module, you can easily transmit the temperature and humidity to other devices to turn on an air conditioner/fan, for example. This sensor also has a display that allows you to view the temperature, humidity and battery status. It can be controlled with Android or iOS using the eWeLink app. A Sonoff Zigbee Bridge is required to use the SNZB-02D. The sensor can also be used with other domotica platforms such as Home Assistant.

See the following page for more information: Manufacturer page

Please login or register to review

Reviews Over Sonoff SNZB-02D - Temperature and Humidity Sensor with Display - Zigbee

This product has 1 review(s) in total.

Tags: Sonoff , Zigbee , Sonoff SNZB-02D - Temperature and Humidity Sensor with Display - Zigbee , 004947 , Sonoff , SNZB-02D , Humidity sensor , Temperature sensor , Battery holder , Enclosure , Display , Zigbee

Specifications

General
Brand Sonoff
Manufacturer model/SKU SNZB-02D
Norm conformity CE
FCC
RoHS
Minimum operating humidity [%R.H.] 5
Maximum operating humidity [%R.H.] 95
Minimum operating temperature [°C] -5
Maximum operating temperature [°C] 40
Features Display
Enclosure
Battery holder
Humidity sensor
Temperature sensor
General physical appearance
Main color White
Weight [g] 70
(including wall mount)
56
(without wall mount)
Dimension X [mm] 63
Dimension Y [mm] 60
Dimension Z [mm] 19
Mounting options Magnets
Adhesive layer
Form factor Module (general)
General electrical properties
Maximum supply voltage [V DC] 3
(via battery)
Wireless communication
Interface(s) Zigbee
Zigbee chip/SoC EFR32MG22
Zigbee frequency [GHz] 2.4
Display
Type LCD
Screen diagonal [inch] 2.8
(2.5'' functional)
Display shape Square
Pixel colors Black
Backlight color None
Temperature sensor
Smallest resolution [°C] 0.1
Accuracy [±°C] 0.2
Humidity sensor
Smallest resolution [%R.H.] 0.1
Accuracy [±%] 2.0
Battery holder
Suitable battery form factor Button cell 2450
Suitable number of batteries 1
Connectors
Zigbee/Thread antenna connector Built-in antenna
Enclosure
Material Polycarbonate (PC)
Package contents
Package contents 1x Sonoff SNZB-02D
1x Wall mount
1x Quick start guide
