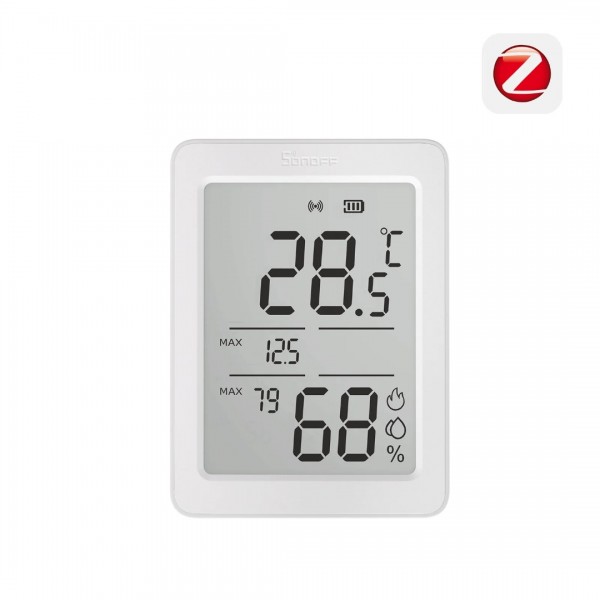

Sonoff AirGuard TH - SNZB-02DR2 - Temperature and Humidity Sensor with Display - Zigbee

Sonoff AirGuard TH - SNZB-02DR2 - Temperature and Humidity Sensor with Display - Zigbee
Sonoff AirGuard TH - SNZB-02DR2 - Temperature and Humidity Sensor with Display - Zigbee
Sonoff AirGuard TH - SNZB-02DR2 - Temperature and Humidity Sensor with Display - Zigbee
Sonoff AirGuard TH - SNZB-02DR2 - Temperature and Humidity Sensor with Display - Zigbee
Sonoff AirGuard TH - SNZB-02DR2 - Temperature and Humidity Sensor with Display - Zigbee
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007655
Based on 0 review(s) - Write a review
€21.50
Ex Tax: €17.77
Add to Cart
Add to wishlist

The Sonoff SNZB-02DR2 is a very handy temperature and humidity sensor that works with the wireless Zigbee protocol. With this sensor module, you can easily transmit the temperature and humidity to other devices to turn on an air conditioner/fan, for example. It is also possible to display data from external sensors. This sensor also has a display that allows you to view the temperature, humidity and battery status. It can be controlled with Android or iOS using the eWeLink app. The sensor can also be used with other domotica platforms such as Home Assistant.

Note: A Zigbee bridge is required, for example: Sonoff ZB Bridge-P (in combination with eWeLink) or Sonoff ZBDongle-E (in combination with, for example, Home Assistant).

See the following page for more information: Wiki

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review
Tags: Air , Humidity , Sonoff AirGuard TH - SNZB-02DR2 - Temperature and Humidity Sensor with Display - Zigbee , 007655 , Sonoff , SNZB-02DR2 , Display , Battery holder , Temperature sensor , Humidity sensor , Enclosure , Zigbee

Specifications

General
Brand Sonoff
Manufacturer model/SKU SNZB-02DR2
Norm conformity CE
RoHS
Minimum operating humidity [%R.H.] 5
Maximum operating humidity [%R.H.] 95
Minimum operating temperature [°C] -20
Maximum operating temperature [°C] 60
Features Display
Enclosure
Battery holder
Humidity sensor
Temperature sensor
General physical appearance
Main color White
Weight [g] 98
(with batteries)
Dimension X [mm] 95
Dimension Y [mm] 70
Dimension Z [mm] 18
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 4.3
Form factor Module (general)
General electrical properties
Maximum supply voltage [V DC] 3
(via battery)
Wireless communication
Interface(s) Zigbee
Zigbee chip/SoC TLSR8656
Zigbee frequency [GHz] 2.4
Display
Type LCD
Screen diagonal [inch] 3.6
Display shape Rectangular
Pixel colors Black
Backlight color None
Temperature sensor
Smallest resolution [°C] 0.1
Accuracy [±°C] 0.2
Humidity sensor
Smallest resolution [%R.H.] 0.1
Accuracy [±%] 2.0
Battery holder
Suitable battery form factor AAA
Suitable number of batteries 2
Connectors
Zigbee/Thread antenna connector Built-in antenna
Enclosure
Material Polycarbonate (PC)
Package contents
Package contents 1x Sonoff SNZB-02DR2
1x Quick start guide
