Radiator Fan USB PD Controller - ESP32-S3

2-4 Weeks

Radiator Fan USB PD Controller - ESP32-S3

Availability: 2-4 Weeks
SKU: 006650

Based on 0 review(s) - Write a review

€15.75

Ex Tax: €13.02

Qty

Add to Cart

Add to wishlist

Not in stock

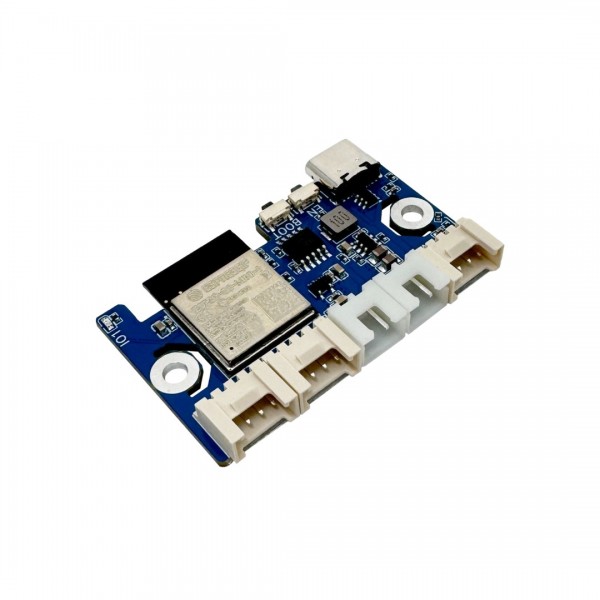

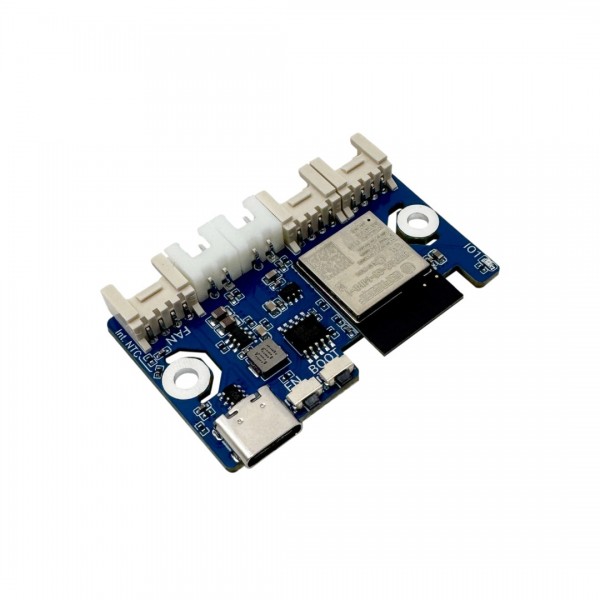

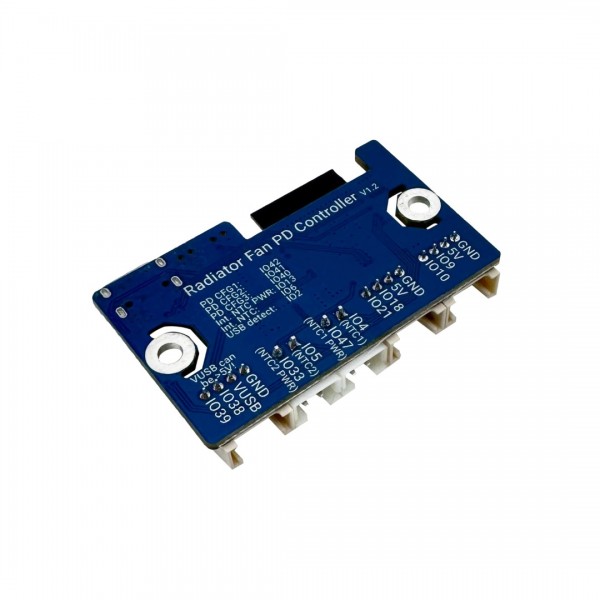

A development board based on an ESP32-S3 (with Wi-Fi and Bluetooth), which is specially made to use with the Universal Fan Mount for Radiators to easily switch the fans on and off. Unique to this module is the built-in USB PD (USB Power Delivery) trigger. In combination with a USB PD power supply, you can easily set different voltages. This allows you to make the fans run faster (but louder) or slower (but quieter). For example, you can let them run at maximum speed when there is no one in the room for optimal radiator efficiency, or slower and more quiet when there is someone in the same room so that they do not disturb.

In addition to controlling the fans, this module also offers the possibility to connect two NTCs to, for example, monitor the temperature of the inlet and outlet of the radiator. There is also a built-in NTC in the module to detect whether the radiator is on. This works best if the module is mounted directly to the radiator with, for example, two magnetic spacers. Finally, the module also has two Grove connections to connect additional sensors (or actuators).

See the following page for more information: GitHub

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Radiator Fan USB PD Controller - ESP32-S3

Average Rating:

This product has 0 review(s) in total.

Schematic: 006650_Schematic_Radiator-Fan-USB-PD-Controller_V1.2.pdf

ESPHome example: 006650_Radiator-Fan-USB-PD-Controller-ESPHome.yaml

Tags: Radiator Fan USB PD Controller - ESP32-S3 , FANPDCTRL , With Bluetooth

Specifications

General
Brand	LEOTRO
Norm conformity	RoHS
Minimum operating temperature [°C]	-25
Maximum operating temperature [°C]	60
Features	Temperature sensor Microcontroller (MCU)
General physical appearance
Main color	Blue
Weight [g]	9
Dimension X [mm]	50
Dimension Y [mm]	30
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3.2
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	20
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	40
Maximum IO-pin sink current [mA]	28
MCU
Manufacturer	Espressif
Chip series	ESP32-S3
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	512
PSRAM [MB]	0
Flash memory [MB]	8
EEPROM type	Emulated
Communication
Hardware interface(s)	ADC I2C I2S PWM SPI GPIO UART Analog USB CDC Native USB
Number of IO-pins	6 (excl. NTC pins)
Maximum available hardware PWM channels	6
Maximum available analog input pins (ADC)	3
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	1
USB to serial converter	Integrated into microcontroller
USB PD controller	CH224K
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32-S3
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32-S3
Bluetooth version	5.0
Supported Bluetooth standard(s)	LE
Temperature sensor
Accuracy [±%]	- (internal NTC can only be used for indicative purposes due to self heating)
B (Beta) value	3950
Connectors
Power supply connector(s)	USB-C female
IO-connector(s)	USB-C female HY2.0 (Grove) male JST-XH (compatible) male
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Package contents
Package contents	1x Radiator Fan USB-PD Controller
