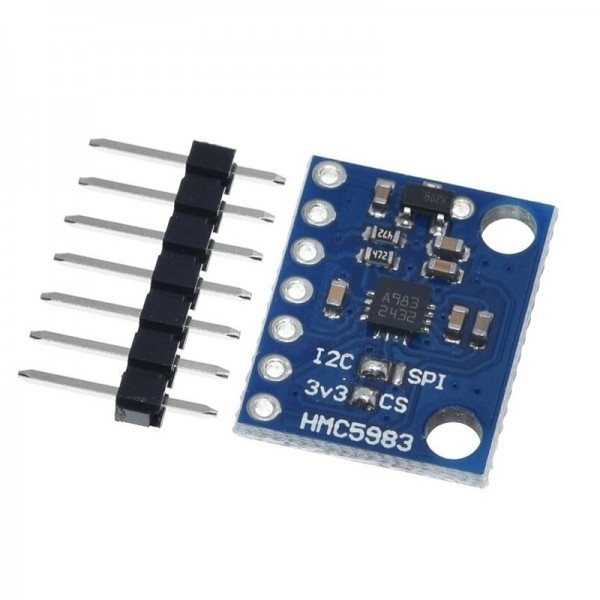

HMC5983 3-Axis Compass Magnetometer Sensor Module

A compass module to determine, for example, the direction of a moving vehicle. Compared to the HMC5883L module, this module has the newer HMC5983 chip. One of the advantages of the HMC5983 is that the output data is temperature compensated.

Specifications:

• Supply voltage: 3.3-5V DC
• Signal voltage: 3.3V
• Chip: HMC5983
  • Maximum measuring frequency: 220Hz
  • Accuracy of heading angle: 1-2°
  • Magnetic field measuring range: ±8Oe

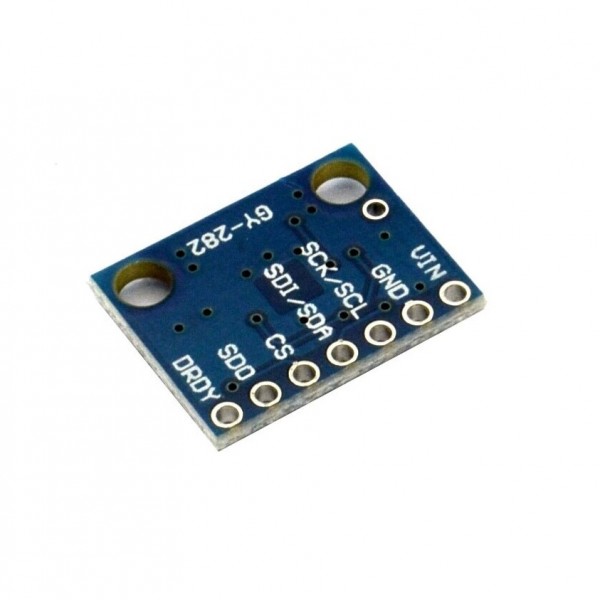

• Communication:
  • I2C: Connect I2C solder bridge and 3v3-CS solder bridge
    • I2C address: 0x1E
  • SPI: Connect SPI solder bridge

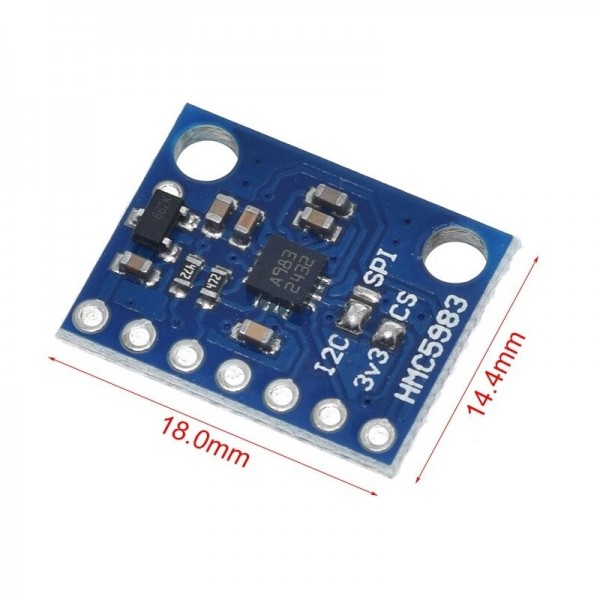

• Dimensions: See images

Package contents:

• 1x HMC5983 3-Axis Magnetometer Module
• 1x Male header set

Check the tab "Downloads" for more information and/or downloads.
