Excamera I2CDriver

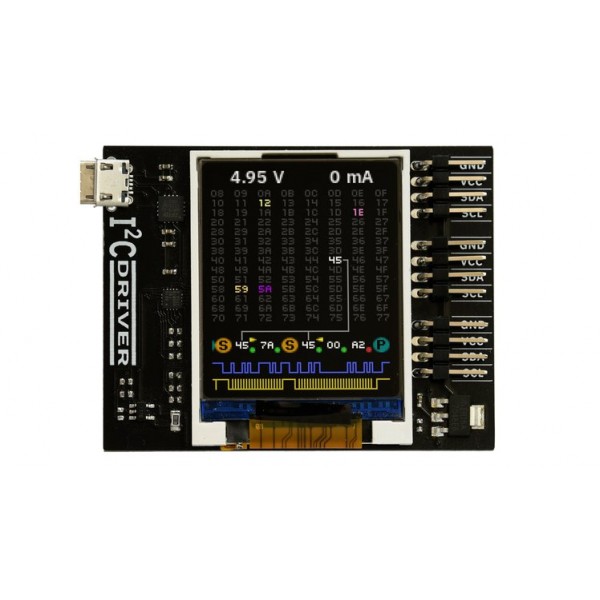

The I2CDriver from Excamera is a tool to easily read out and control I2C devices via USB (micro USB cable not included). The board works with Windows, Mac and Linux. The board also has a built-in display that shows all I2C activity.

Specifications:

• 3x I2C connection
• Supply voltage: 5V DC via micro USB
• Signal voltage: 3.3V (5V tolerant)
• Max. output current: 470mA
• Built-in current sensors for the I2C connections
• Programmable I2C pull-up resistors
• I2C features:
  • 7- and 10-bit I2C addressing
  • Clock stretching
  • Bus arbitration
• Dimensions: 61 x 49 x 6mm

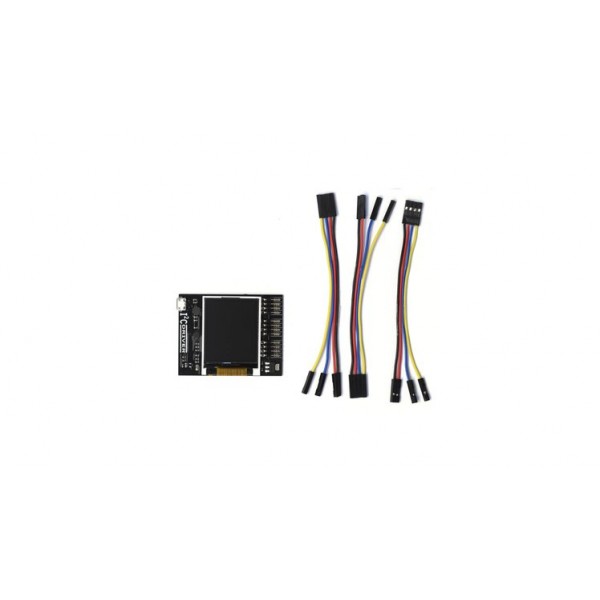

Package contents:

• 1x I2CDriver
• 3x DuPont cable

For more information and to get started with the board, see the following page: I2CDriver
