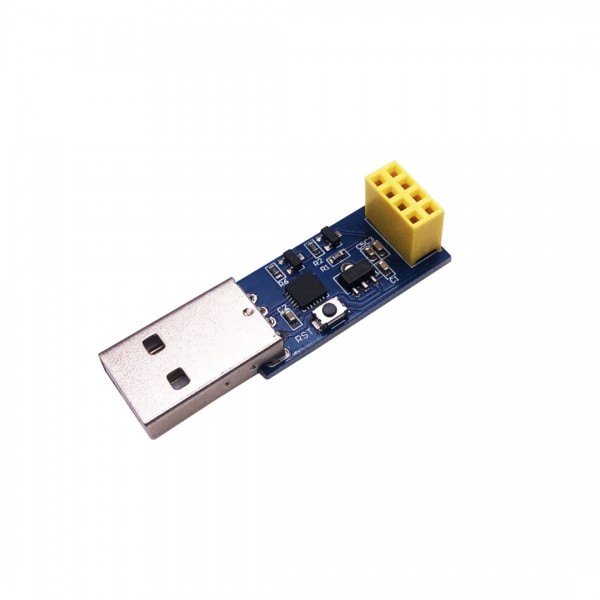

ESP LINK V2.0 - ESP8266 ESP-01(S) Programmer

This ESP LINK can be used for firmware upgrades, serial port debugging and programming an ESP8266 ESP-01(S). This ESP LINK is supported by the "Arduino IDE", "ESP8266Flasher" and "Espressif Flash Download Tools". The ESP8266 ESP-01(S) plugs directly into the Link's 2x 4p Female headers, so there is no need to use cables. The Link can be connected to a computer via the USB-A connector.

Compared to the V1.0 module, it is slightly smaller because the male header pins are missing, in addition, the ESP-01(S) must be placed the other way around.

Note: The ESP-01 module must be placed such that the antenna points away from the USB connector.
