Name: Waveshare 7.9 inch HDMI IPS-TFT-LCD Display 1280*400 Pixels with Touchscreen - Raspberry Pi Compatible - WS-17916
Brand: Waveshare
SKU: 004797
Price: 75 EUR
Availability: InStock

Waveshare 7.9 inch HDMI IPS-TFT-LCD Display 1280*400 Pixels with Touchscreen - Raspberry Pi Compatible

Availability: Directly available from warehouse in Eindhoven
SKU: 004797

Based on 0 review(s) - Write a review

€75.00

Ex Tax: €61.98

Qty

Add to Cart

Add to wishlist

Only 7 pieces in stock

Description
Reviews

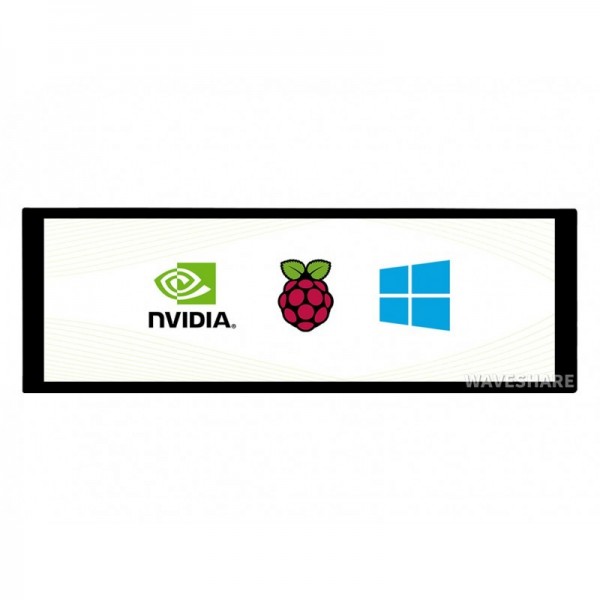

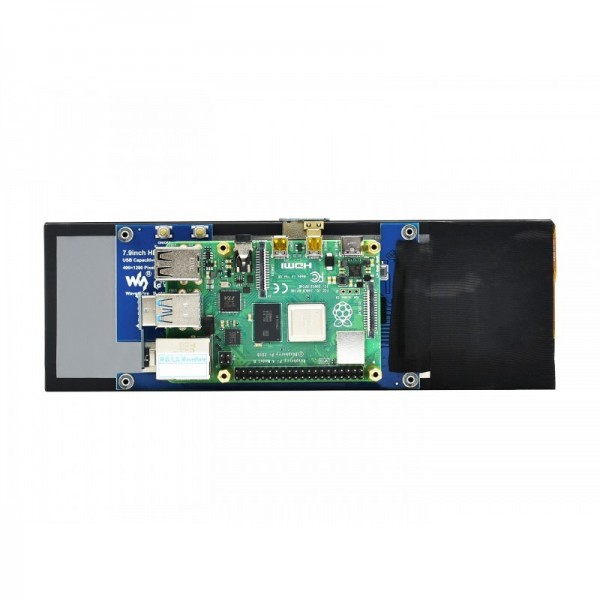

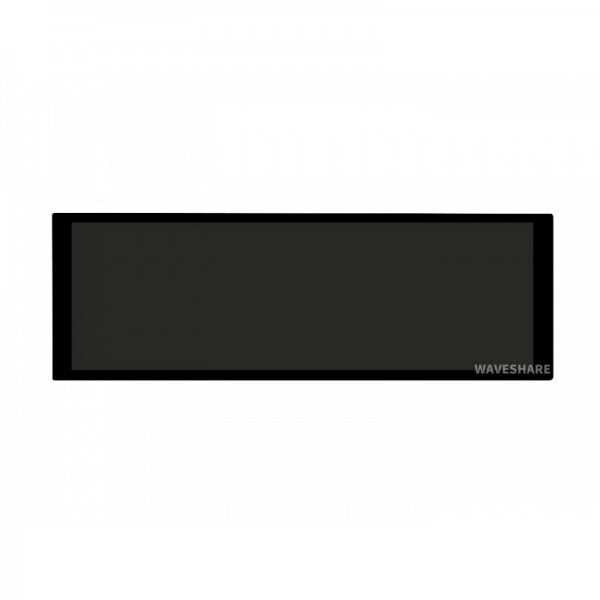

This Waveshare display with touchscreen connects via HDMI and micro USB and can be used with Raspberry Pi. The front panel is made from toughened glass.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare 7.9 inch HDMI IPS-TFT-LCD Display 1280*400 Pixels with Touchscreen - Raspberry Pi Compatible

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare 7.9 inch HDMI IPS-TFT-LCD Display 1280*400 Pixels with Touchscreen - Raspberry Pi Compatible , WS-17916 , TFT

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	17916
Features	Display Touchscreen
General physical appearance
Main color	Black
Weight [g]	202

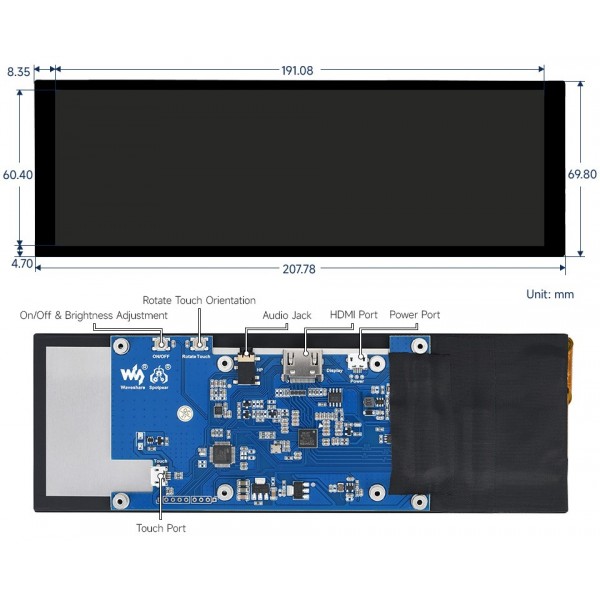

Dimension X [mm]	208
Dimension Y [mm]	70
Mounting options	Screw thread
Form factor	Module (general) Raspberry Pi SBC layout/HAT
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Communication
Hardware interface(s)	HDMI USB
Display
Type	IPS
Screen diagonal [inch]	7.9
Number of pixels long side	1280
Number of pixels short side	400
Display shape	Rectangular
Pixel colors	RGB
Touchscreen
Touch type	Capacitive
Multi-touch support	Yes
Connectors
Power supply connector(s)	Micro USB female
IO-connector(s)	Micro USB female HDMI female Audio jack 3.5mm female

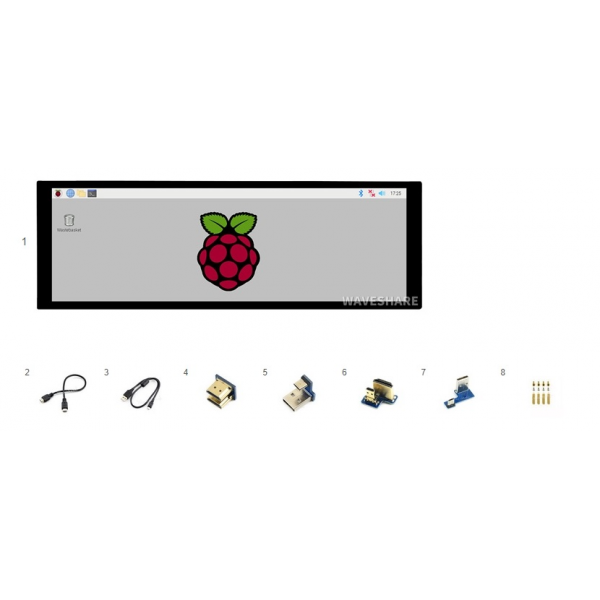

Package contents
Package contents	1x Display module 1x Mounting material 1x HDMI Cable 1x Micro USB Cable 1x HDMI Adapter (B) 1x USB Adapter (B) 1x HDMI Adapter (C) 1x USB Adapter (C)
