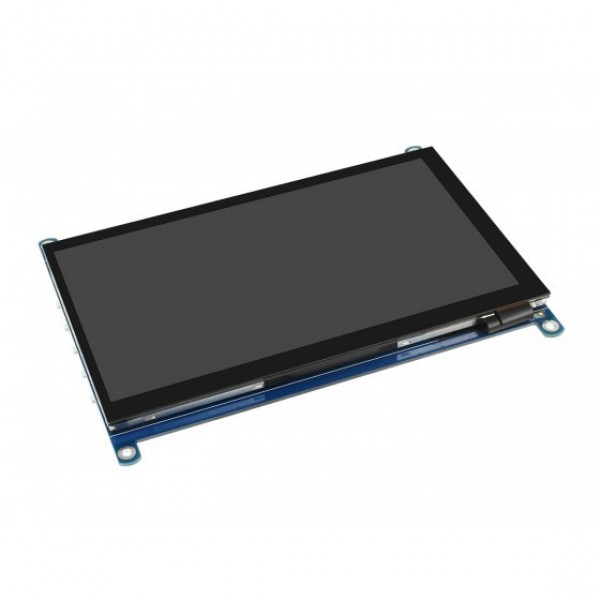

Waveshare 7 inch HDMI QLED Display 1024*600 pixels with Touchscreen
- Availability: Directly available from warehouse in Eindhoven
- SKU: 004745
€64.00
Ex Tax: €52.89
Your shopping cart is empty!
This Waveshare QLED display can be used via HDMI.
See the following page for more information: Wiki
This product has 0 review(s) in total.
| General | |
| Brand | Waveshare |
| Manufacturer model/SKU | 18625 |
| Features | Display Touchscreen Audio amplifier |
| General physical appearance | |
| Main color | Blue |

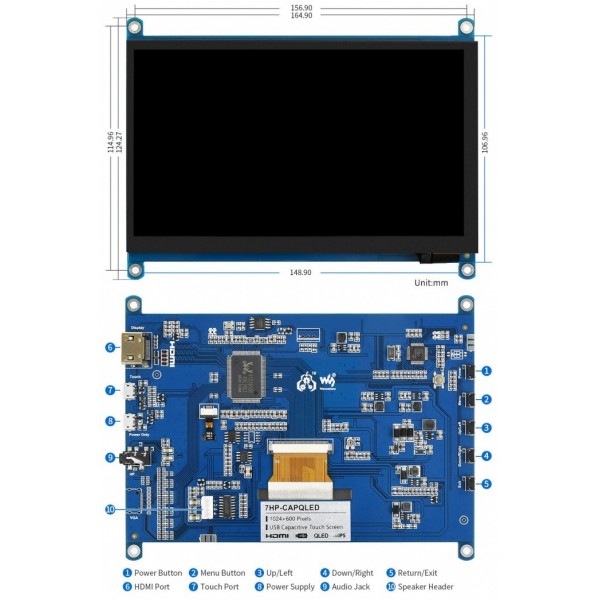

| Dimension X [mm] | 165 |
| Dimension Y [mm] | 125 |
| Mounting options | Mounting hole(s) |
| Diameter mounting hole(s) [mm] | 3.2 |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Communication | |
| Hardware interface(s) | USB HDMI |
| Display | |
| Type | QLED |
| Screen diagonal [inch] | 7 |
| Number of pixels long side | 1024 |
| Number of pixels short side | 600 |
| Display shape | Rectangular |
| Pixel colors | RGB |
| Touchscreen | |
| Touch type | Capacitive |
| Multi-touch support | Yes |
| Audio amplifier | |
| Amplifier chip | APA2068 |
| Number of (normal) channels | 2 |
| Maximum power per (normal) channel [W] | 2.6 (@4Ω) |
| Minimum speaker impedance per (normal) channel [Ω] | 3 |
| Maximum speaker impedance per (normal) channel [Ω] | 8 |
| Connectors | |
| Power supply connector(s) | Micro USB female |
| IO-connector(s) | HDMI female Micro USB female Audio jack 3.5mm female |
| Speaker connector(s) | JST-PH (compatible) male |
| Package contents | |
| Package contents | 1x Display module 1x USB power cable 1x HDMI to HDMI cable 1x HDMI to Micro HDMI adapter 4x Spacer 4x Bolt |
