Name: Waveshare 7 inch HDMI IPS-TFT-LCD Display 1024*600 pixels with Touchscreen - Raspberry Pi Compatible - WS-12104
Brand: Waveshare
SKU: 002615
Price: 60 EUR
Availability: InStock

Waveshare 7 inch HDMI IPS-TFT-LCD Display 1024*600 pixels with Touchscreen - Raspberry Pi Compatible

Availability: Directly available from warehouse in Eindhoven
SKU: 002615

Based on 0 review(s) - Write a review

€60.00

Ex Tax: €49.59

Qty

Add to Cart

Add to wishlist

Only 9 pieces in stock

Description
Reviews

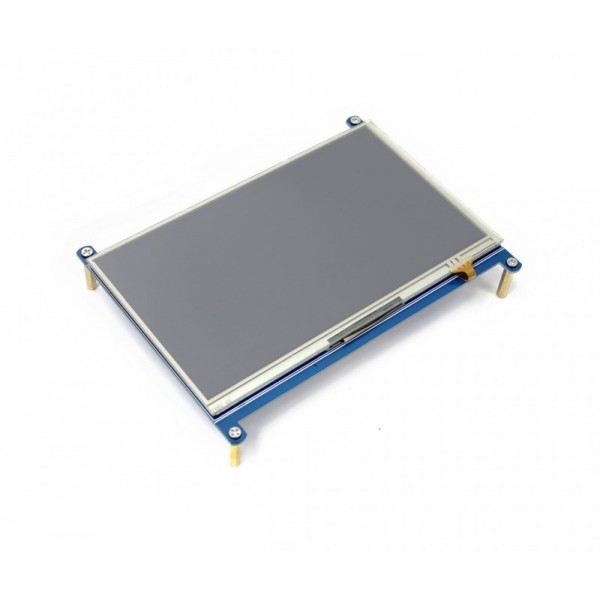

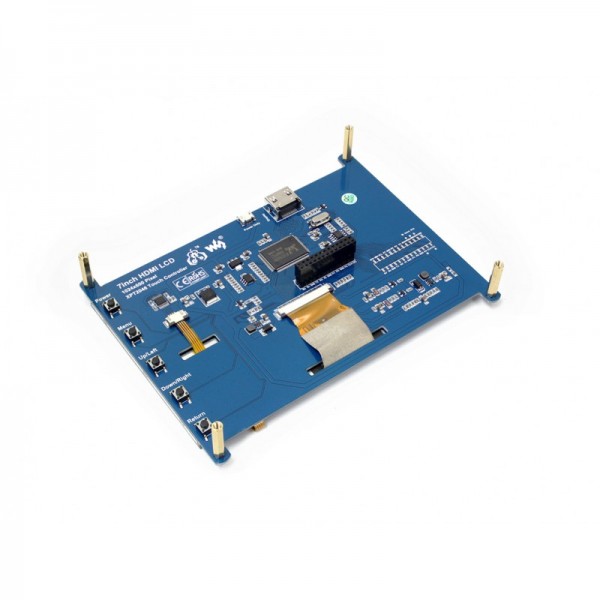

This 7 inch Waveshare display with touchscreen is connected via HDMI and the GPIO pins of a Raspberry Pi.

For more information, see the following page: 7 inch HDMI LCD

Please login or register to review

Reviews Over Waveshare 7 inch HDMI IPS-TFT-LCD Display 1024*600 pixels with Touchscreen - Raspberry Pi Compatible

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare 7 inch HDMI IPS-TFT-LCD Display 1024*600 pixels with Touchscreen - Raspberry Pi Compatible , WS-12104 , TFT

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	12104
Features	Display Touchscreen
General physical appearance
Main color	Blue
Weight [g]	215

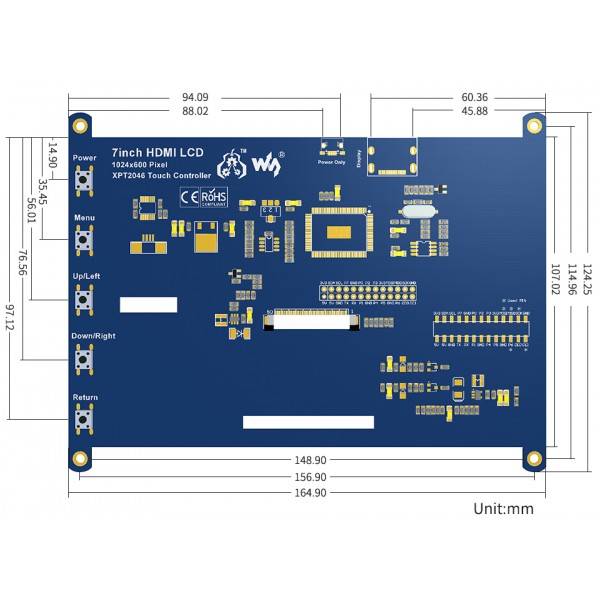

Dimension X [mm]	165
Dimension Y [mm]	125
Mounting options	Pin headers Mounting hole(s)
Diameter mounting hole(s) [mm]	3.2
Form factor	Module (general) Raspberry Pi SBC layout/HAT
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Communication
Hardware interface(s)	SPI HDMI
Display
Type	IPS
Screen diagonal [inch]	7
Number of pixels long side	1024
Number of pixels short side	600
Display shape	Rectangular
Pixel colors	RGB
Touchscreen
Touchscreen controller	XPT2046
Touch type	Resistive
Multi-touch support	No
Connectors
Power supply connector(s)	Pin header female (2.54mm) Solder pad(s) Micro USB female
IO-connector(s)	Pin header female (2.54mm) Solder pad(s) HDMI female
Package contents
Package contents	1x Display module 1x Mounting material 1x HDMI to HDMI adapter 1x HDMI to Micro HDMI adapter 1x Stylus
