Waveshare 7 inch HDMI IPS-TFT-LCD (H) Display 1024*600 with Touchscreen

Availability: Directly available from warehouse in Eindhoven
SKU: 004976

Based on 0 review(s) - Write a review

€48.00

Ex Tax: €39.67

Qty

Add to Cart

Add to wishlist

Only 9 pieces in stock

Description
Reviews

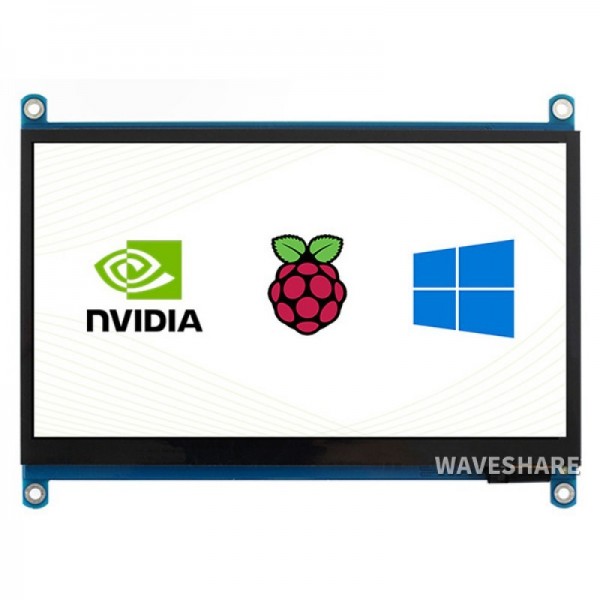

This display from Waveshare with touchscreen is connected to a computer (such as a Raspberry Pi or Windows computer) via HDMI and USB. In addition, it is also possible to connect the display via VGA, but for that the following specific adapter cable is required: Waveshare Mini HDMI to VGA Cable - VGA Protocol

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare 7 inch HDMI IPS-TFT-LCD (H) Display 1024*600 with Touchscreen

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare 7 inch HDMI IPS-TFT-LCD (H) Display 1024*600 with Touchscreen , WS-14628 , TFT

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	14628
Features	Display Touchscreen Audio amplifier
General physical appearance
Main color	Blue
Weight [g]	215

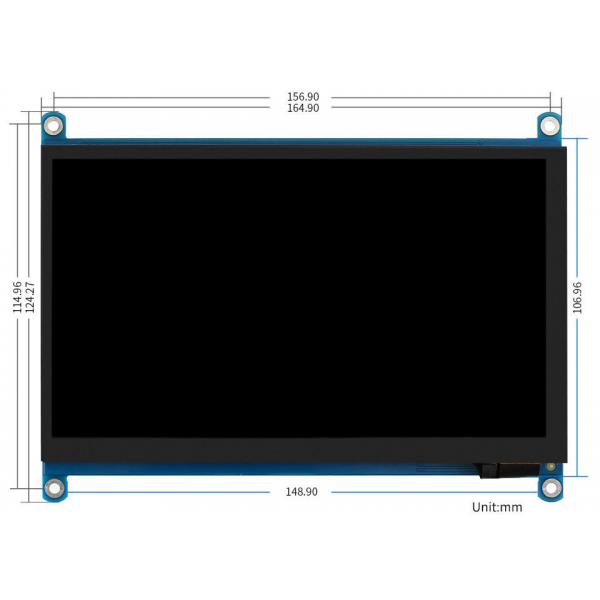

Dimension X [mm]	165
Dimension Y [mm]	124
Mounting options	Mounting hole(s)
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Communication
Hardware interface(s)	HDMI VGA USB
Display
Type	IPS
Screen diagonal [inch]	7
Number of pixels long side	1024
Number of pixels short side	600
Display shape	Rectangular
Pixel colors	RGB
Maximum viewing angle [°]	170
Touchscreen
Touch type	Capacitive
Multi-touch support	Yes
Audio amplifier
Amplifier chip	APA2068
Number of (normal) channels	2
Maximum power per (normal) channel [W]	2.6 (@4Ω)
Minimum speaker impedance per (normal) channel [Ω]	3
Maximum speaker impedance per (normal) channel [Ω]	8

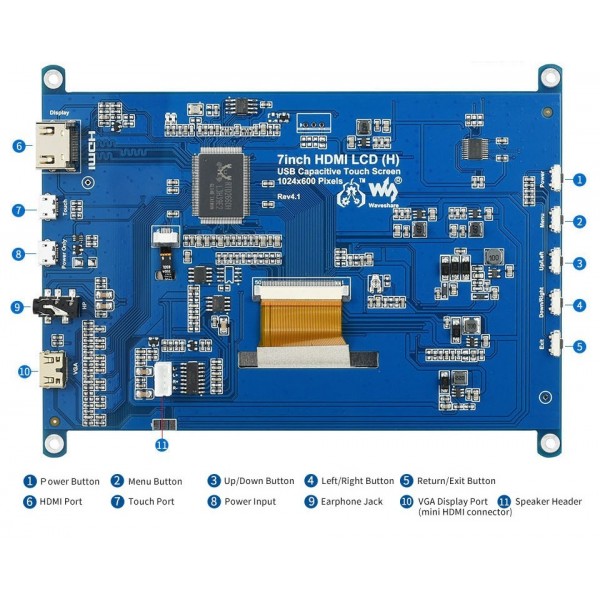

Connectors
Power supply connector(s)	Micro USB female
IO-connector(s)	Micro USB female HDMI female Audio jack 3.5mm female Mini HDMI female (VGA interface)
Speaker connector(s)	JST-PH (compatible) male
Package contents
Package contents	1x Display module 1x HDMI cable 1x HDMI to Micro HDMI adapter 1x USB-A to Micro USB cable 4x Spacer 4x Bolt
