Name: Waveshare 7 inch HDMI IPS-TFT-LCD (H) Display 1024*600 pixels with Touchscreen and Case - Raspberry Pi Compatible - WS-13857
Brand: Waveshare
SKU: 002618
Price: 70 EUR
Availability: InStock
Rating: 4 (2 reviews)

Waveshare 7 inch HDMI IPS-TFT-LCD (H) Display 1024*600 pixels with Touchscreen and Case - Raspberry Pi Compatible

Availability: Directly available from warehouse in Eindhoven
SKU: 002618

Based on 2 review(s) - Write a review

€70.00

Ex Tax: €57.85

Qty

Add to Cart

Add to wishlist

Only 4 pieces in stock

Description
Reviews

This 7 inch Waveshare display with touchscreen is connected via HDMI and USB to a computer (such as a Raspberry Pi or Windows computer).

For more information, see the following page: 7 inch HDMI LCD (H) (with case)

Please login or register to review

Reviews Over Waveshare 7 inch HDMI IPS-TFT-LCD (H) Display 1024*600 pixels with Touchscreen and Case - Raspberry Pi Compatible

Average Rating:

This product has 2 review(s) in total.

Tags: Waveshare 7 inch HDMI IPS-TFT-LCD (H) Display 1024*600 pixels with Touchscreen and Case - Raspberry Pi Compatible , WS-13857 , TFT

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	13857
Features	Display Touchscreen Enclosure
General physical appearance
Main color	Black

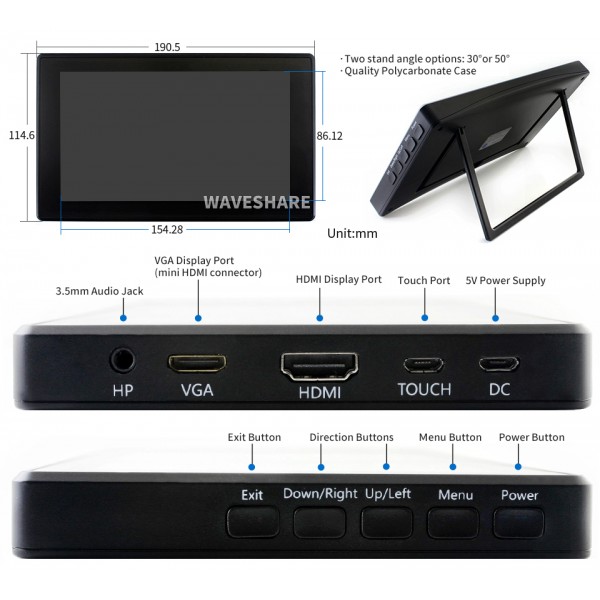

Dimension X [mm]	191
Dimension Y [mm]	115
Dimension Z [mm]	17
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Communication
Hardware interface(s)	DAC HDMI VGA
DAC type	Audio DAC
Maximum available analog output pins (DAC)	2
Display
Type	IPS
Screen diagonal [inch]	7
Number of pixels long side	1024
Number of pixels short side	600
Display shape	Rectangular
Pixel colors	RGB
Maximum viewing angle [°]	170
Touchscreen
Touch type	Capacitive
Multi-touch support	Yes (5 points)
Connectors
Power supply connector(s)	Micro USB female
IO-connector(s)	Micro USB female HDMI female Audio jack 3.5mm female Mini HDMI female (VGA interface)
Enclosure
Material	Polycarbonate (PC)
Package contents
Package contents	1x Display module 1x USB cable 1x HDMI to Micro HDMI Adapter 1x HDMI cable
