Name: Waveshare 7 inch DSI TFT-LCD Display 800*480 pixels with Touchscreen Adhesive Strip and Camera for Raspberry Pi - WS-20806
Brand: Waveshare
SKU: 004291
Price: 67 EUR
Availability: InStock

Waveshare 7 inch DSI TFT-LCD Display 800*480 pixels with Touchscreen Adhesive Strip and Camera for Raspberry Pi

Availability: Directly available from warehouse in Eindhoven
SKU: 004291

Based on 0 review(s) - Write a review

€67.00

Ex Tax: €55.37

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

Description
Reviews

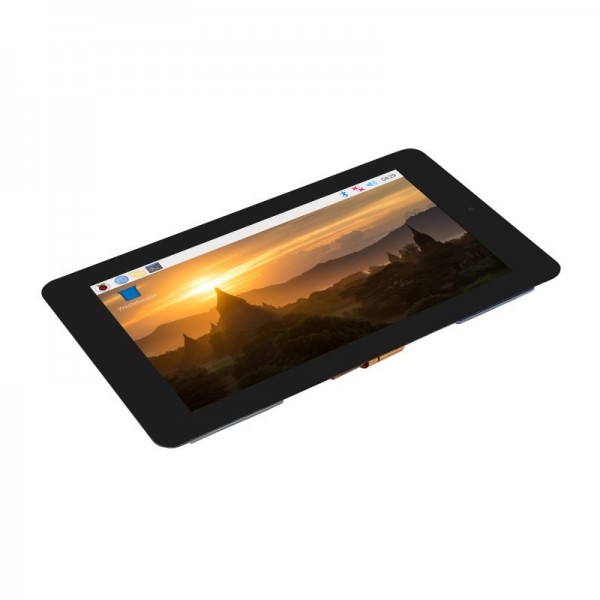

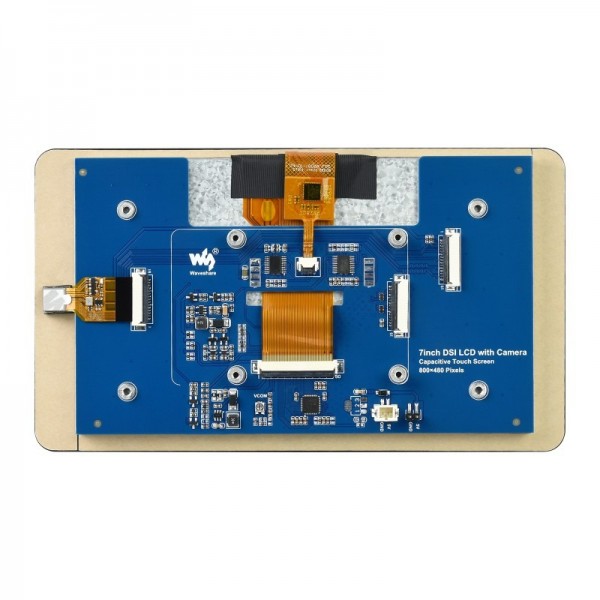

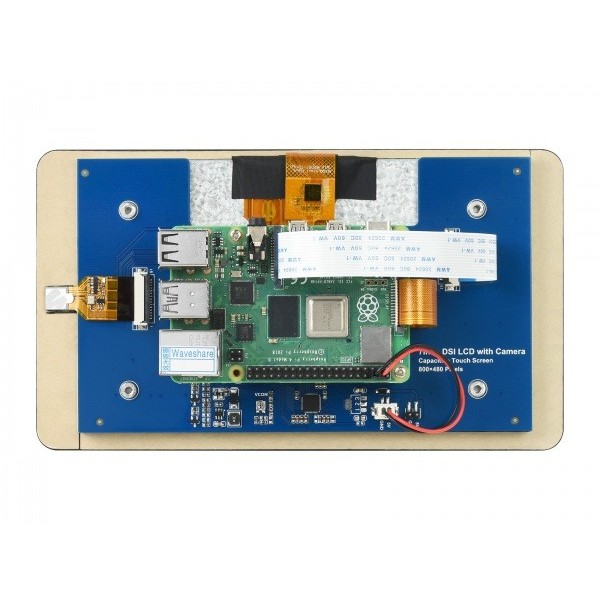

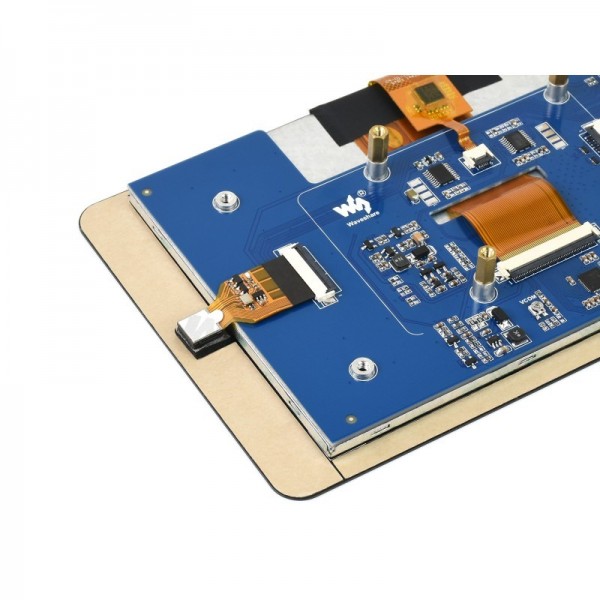

This Waveshare display with a capacitive touchscreen and a built-in camera is specially made to be placed on a Raspberry Pi (see images). The display communicates with the Raspberry Pi via DSI. In addition, this display has an adhesive strip along the edges of the screen, which makes it very easy to build in.

See the following page to get the display and touchscreen up and running: 7inch DSI LCD (with cam)

Note: This display is only supported by Raspberry Pi.

Note: Raspberry Pi is not included.

Please login or register to review

Reviews Over Waveshare 7 inch DSI TFT-LCD Display 800*480 pixels with Touchscreen Adhesive Strip and Camera for Raspberry Pi

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare 7 inch DSI TFT-LCD Display 800*480 pixels with Touchscreen Adhesive Strip and Camera for Raspberry Pi , WS-20806 , TFT

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	20806
Features	Display Camera Touchscreen
General physical appearance
Main color	Black
Weight [g]	269
Dimension X [mm]	193
Dimension Y [mm]	111
Mounting options	Screw thread Adhesive layer
Thread size	M2.5 (Raspberry Pi mount) M3 (Display mount)
Form factor	Module (general) Raspberry Pi SBC layout/HAT
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	CSI DSI
Display
Type	TFT
Screen diagonal [inch]	7
Number of pixels long side	800
Number of pixels short side	480
Display shape	Rectangular
Pixel colors	RGB
Touchscreen
Touch type	Capacitive
Multi-touch support	Yes
Scanner/camera
Type	Camera
Sensor(chip)	OV5647
Lense type	Normal
Number of pixels long side	2592
Number of pixels short side	1944
Maximum frame rate [Hz]	30
Focal length [mm]	3.89
Aperture	2.4
Maximum viewing angle (diagonal) [°]	72.9
Connectors
Power supply connector(s)	JST-PH (compatible) male Pin header male (2.54mm)
IO-connector(s)	FFC female 15p 1.00mm
Package contents
Package contents	1x Display module 1x Mounting material 1x JST-PH to DuPont 2p cable ~10cm 1x FFC 15p 1.00mm cable (long) 2x FFC 15p 1.00mm cable (short)
