Waveshare 5 inch HDMI TFT-LCD Display 800*480 pixels with Touchscreen - Raspberry Pi Compatible

Waveshare 5 inch HDMI TFT-LCD Display 800*480 pixels with Touchscreen - Raspberry Pi Compatible
Waveshare 5 inch HDMI TFT-LCD Display 800*480 pixels with Touchscreen - Raspberry Pi Compatible
Waveshare 5 inch HDMI TFT-LCD Display 800*480 pixels with Touchscreen - Raspberry Pi Compatible
Waveshare 5 inch HDMI TFT-LCD Display 800*480 pixels with Touchscreen - Raspberry Pi Compatible
Waveshare 5 inch HDMI TFT-LCD Display 800*480 pixels with Touchscreen - Raspberry Pi Compatible
Waveshare 5 inch HDMI TFT-LCD Display 800*480 pixels with Touchscreen - Raspberry Pi Compatible
Waveshare 5 inch HDMI TFT-LCD Display 800*480 pixels with Touchscreen - Raspberry Pi Compatible
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 003106
Based on 0 review(s) - Write a review
€39.00
Ex Tax: €32.23
Add to Cart
Add to wishlist

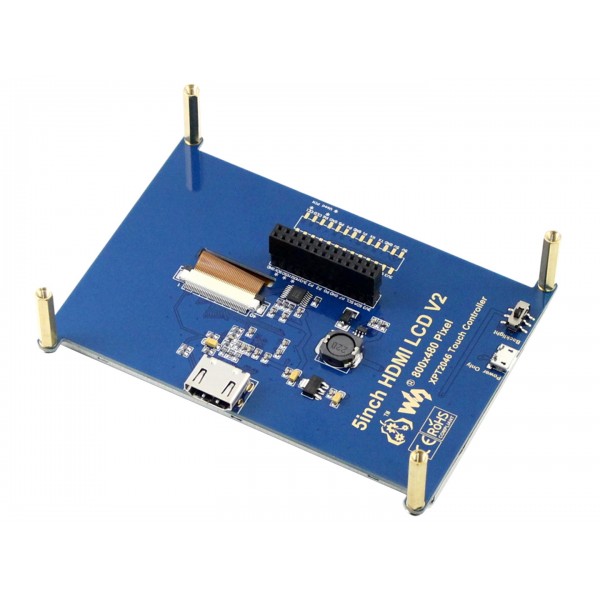

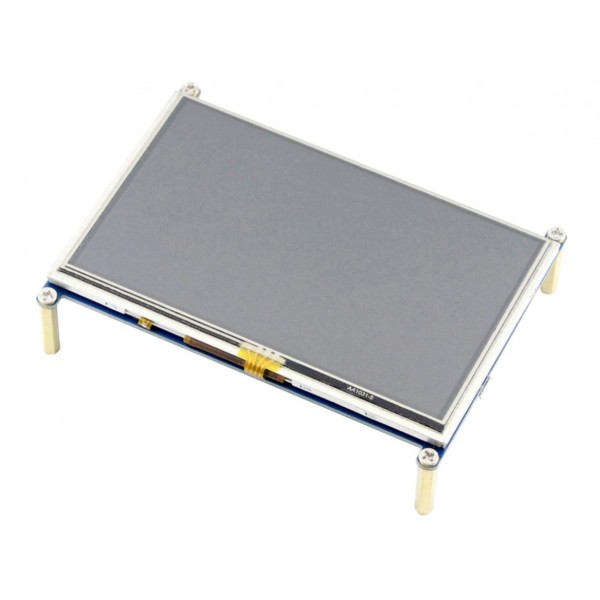

This 5 inch Waveshare display with touchscreen is connected via HDMI and  the GPIO pins of the Raspberry Pi.

Note: There is a chance that the touchscreen needs to be calibrated. Instructions on how to do this can be found through the link below.

For more information see the following page: 5 inch HDMI LCD

Please login or register to review
Tags: Displays , TFT , Waveshare 5 inch HDMI TFT-LCD Display 800*480 pixels with Touchscreen - Raspberry Pi Compatible , 003106 , Waveshare , 10563 , Display , Touchscreen , SPI , HDMI

Specifications

General
Brand Waveshare
Manufacturer model/SKU
Features Display
Touchscreen
General physical appearance
Main color Blue
Weight [g] 119

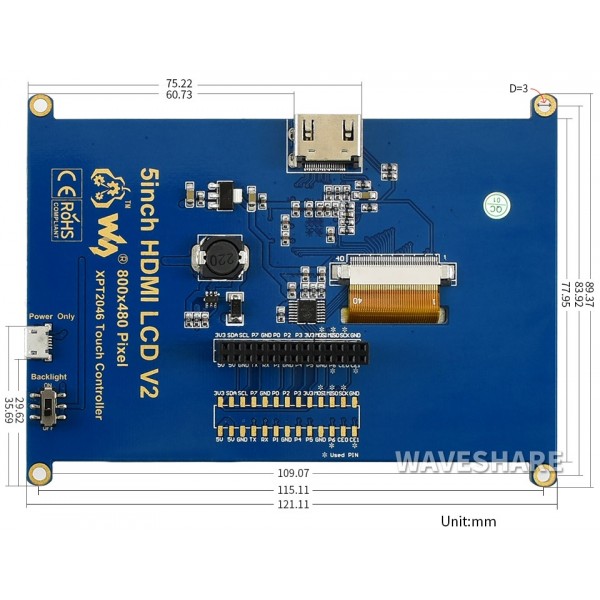

Dimension X [mm] 122
Dimension Y [mm] 90
Mounting options Pin headers
Mounting hole(s)
Diameter mounting hole(s) [mm] 3
Form factor Module (general)
Raspberry Pi SBC layout/HAT
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Communication
Hardware interface(s) SPI
HDMI
Display
Type TFT
Screen diagonal [inch] 5
Number of pixels long side 800
Number of pixels short side 480
Display shape Rectangular
Pixel colors RGB
Touchscreen
Touchscreen controller XPT2046
Touch type Resistive
Multi-touch support No
Connectors
Power supply connector(s) Solder pad(s)
Micro USB female
Pin header female (2.54mm)
IO-connector(s) HDMI female
Solder pad(s)
Pin header female (2.54mm)
Package contents
Package contents 1x Display module
1x Mounting material
