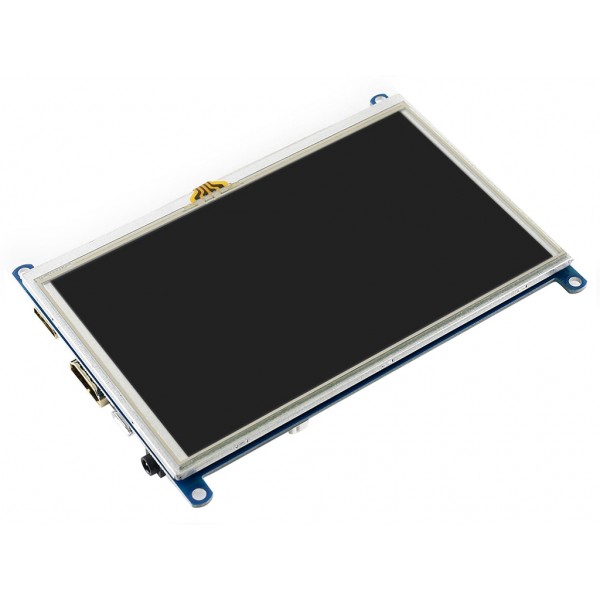

Waveshare 5 inch HDMI TFT-LCD (G) Display 800*480 pixels with Touchscreen - Raspberry Pi Compatible

Availability: Directly available from warehouse in Eindhoven
SKU: 002620

Based on 1 review(s) - Write a review

€47.50

Ex Tax: €39.26

Qty

Add to Cart

Add to wishlist

Only 5 pieces in stock

Description
Reviews

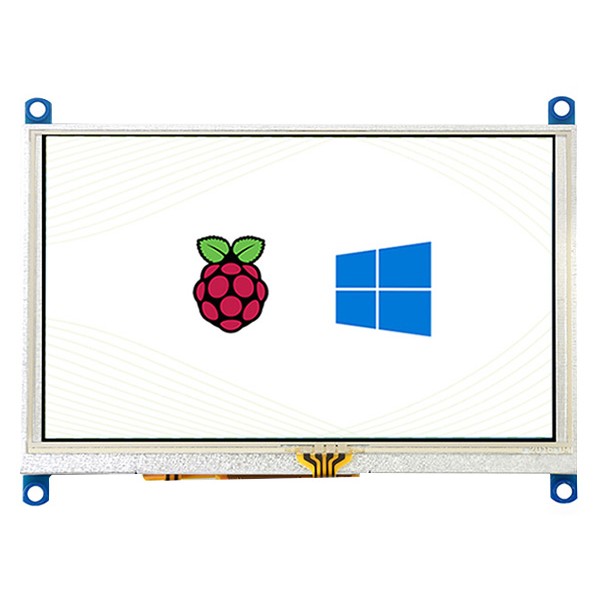

This 5 inch Waveshare display with touchscreen is connected via HDMI and USB to a computer (such as a Raspberry Pi or Windows computer).

Note: There is a chance that the touchscreen needs to be calibrated. Instructions on how to do this can be found through the link below.

For more information see the following page: 5 inch HDMI LCD (G)

Please login or register to review

Reviews Over Waveshare 5 inch HDMI TFT-LCD (G) Display 800*480 pixels with Touchscreen - Raspberry Pi Compatible

Average Rating:

This product has 1 review(s) in total.

Tags: Waveshare 5 inch HDMI TFT-LCD (G) Display 800*480 pixels with Touchscreen - Raspberry Pi Compatible , WS-14447 , TFT

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	14447
Features	Display Touchscreen Audio amplifier

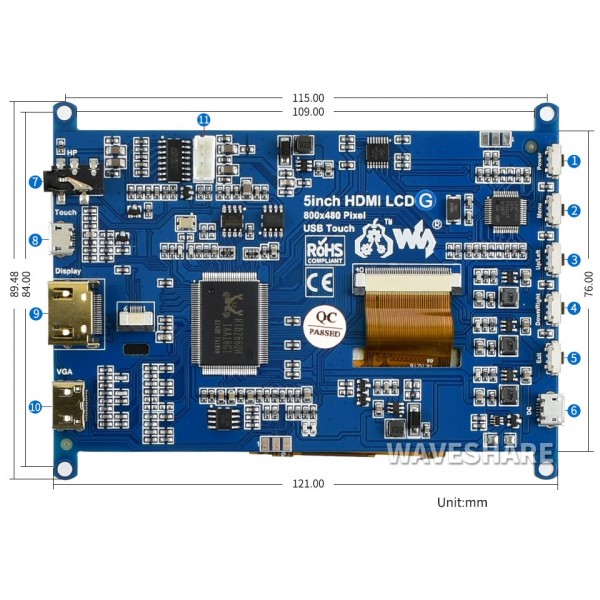

General physical appearance
Main color	Blue
Weight [g]	119
Dimension X [mm]	121
Dimension Y [mm]	90
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3.2
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Communication
Hardware interface(s)	Native USB HDMI VGA
Display
Type	TFT
Screen diagonal [inch]	5
Number of pixels long side	800
Number of pixels short side	480
Display shape	Rectangular
Pixel colors	RGB
Touchscreen
Touchscreen controller	XPT2046
Touch type	Resistive
Multi-touch support	No
Audio amplifier
Amplifier chip	APA2068
Number of (normal) channels	2
Maximum power per (normal) channel [W]	2.6 (@4Ω)
Minimum speaker impedance per (normal) channel [Ω]	3
Maximum speaker impedance per (normal) channel [Ω]	8
Connectors
Power supply connector(s)	Micro USB female
IO-connector(s)	Micro USB female HDMI female Audio jack 3.5mm female Mini HDMI female (VGA interface)
Speaker connector(s)	JST-PH (compatible) male
Package contents
Package contents	1x Display module 1x Mounting material 1x HDMI cable 1x HDMI to Micro HDMI adapter 1x USB A to Micro B cable 1x Stylus
