Name: Waveshare 5 inch HDMI TFT-LCD (B) Display 800*480 pixels with Touchscreen and Case - Raspberry Pi Compatible - WS-11018
Brand: Waveshare
SKU: 003101
Price: 47 EUR
Availability: InStock

Waveshare 5 inch HDMI TFT-LCD (B) Display 800*480 pixels with Touchscreen and Case - Raspberry Pi Compatible

Availability: Directly available from warehouse in Eindhoven
SKU: 003101

Based on 0 review(s) - Write a review

€47.00

Ex Tax: €38.84

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

Description
Reviews

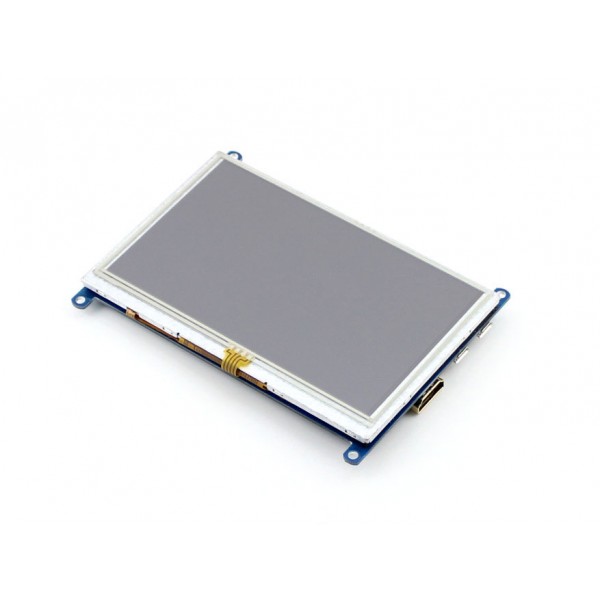

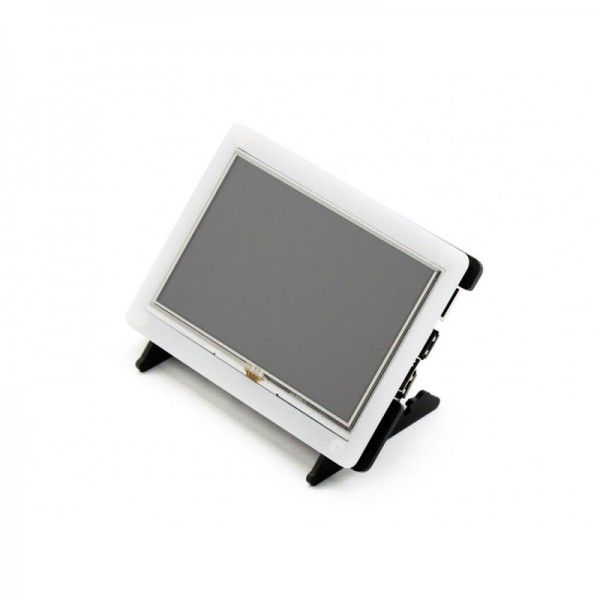

This 5 inch Waveshare display with touchscreen and case is connected via HDMI and USB to a computer (such as a Raspberry Pi or Windows computer).

Note: There is a chance that the touchscreen needs to be calibrated. Instructions on how to do this can be found through the link below.

For more information see the following page: 5 inch HDMI LCD (B)

Please login or register to review

Reviews Over Waveshare 5 inch HDMI TFT-LCD (B) Display 800*480 pixels with Touchscreen and Case - Raspberry Pi Compatible

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare 5 inch HDMI TFT-LCD (B) Display 800*480 pixels with Touchscreen and Case - Raspberry Pi Compatible , WS-11018 , TFT

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	11018
Features	Display Touchscreen
General physical appearance
Main color	White
Weight [g]	117 (without case)
Dimension X [mm]	121 (without case)
Dimension Y [mm]	90
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3.2
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Communication
Hardware interface(s)	Native USB HDMI
Display
Type	TFT
Screen diagonal [inch]	5
Number of pixels long side	800
Number of pixels short side	480
Display shape	Rectangular
Pixel colors	RGB
Touchscreen
Touchscreen controller	XPT2046
Touch type	Resistive
Multi-touch support	No
Connectors
Power supply connector(s)	Micro USB female
IO-connector(s)	Micro USB female HDMI female
Package contents

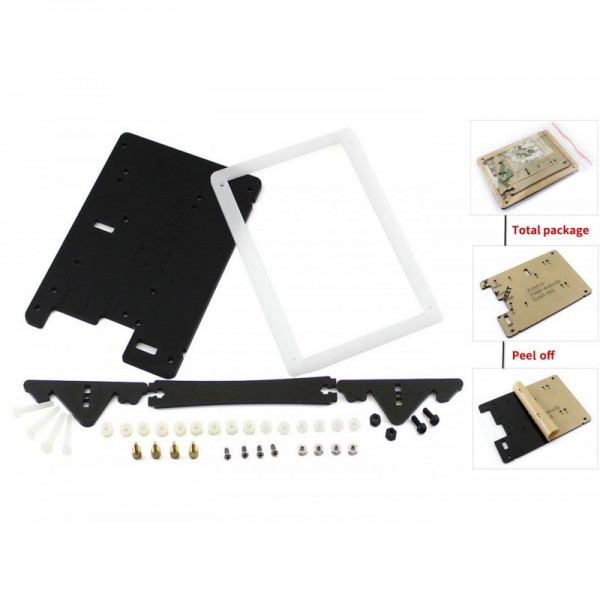

Package contents	1x Display module 1x Mounting material 1x Case parts 1x HDMI cable 1x HDMI to Micro HDMI adapter 1x USB A to Micro B cable 1x Stylus
