Name: Waveshare 5 inch DSI TFT-LCD Display 800*480 with Touchscreen - for Raspberry Pi - WS-18396
Brand: Waveshare
SKU: 004862
Price: 35.5 EUR
Availability: InStock

Waveshare 5 inch DSI TFT-LCD Display 800*480 with Touchscreen - for Raspberry Pi

Availability: Directly available from warehouse in Eindhoven
SKU: 004862

Based on 0 review(s) - Write a review

€35.50

Ex Tax: €29.34

Qty

Add to Cart

Add to wishlist

Only 8 pieces in stock

Description
Reviews

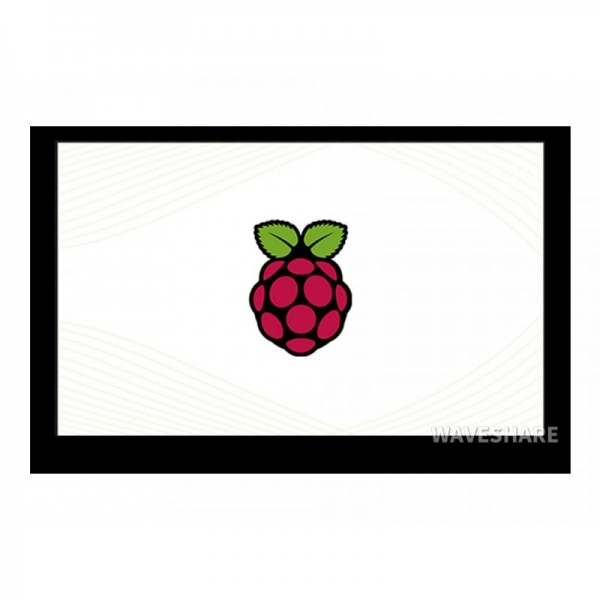

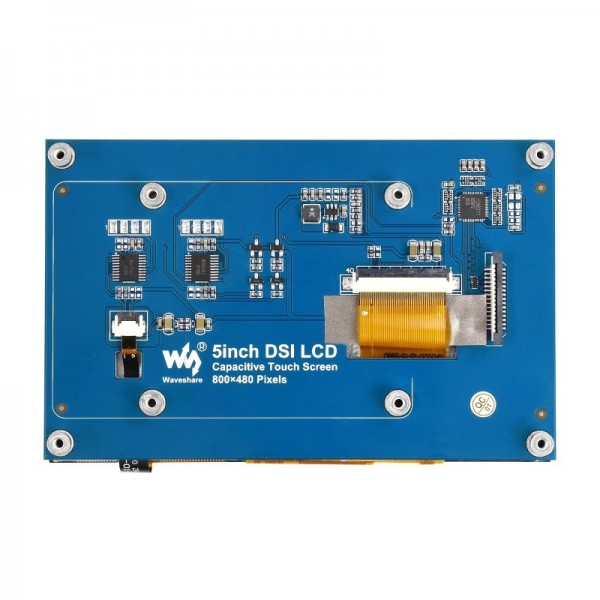

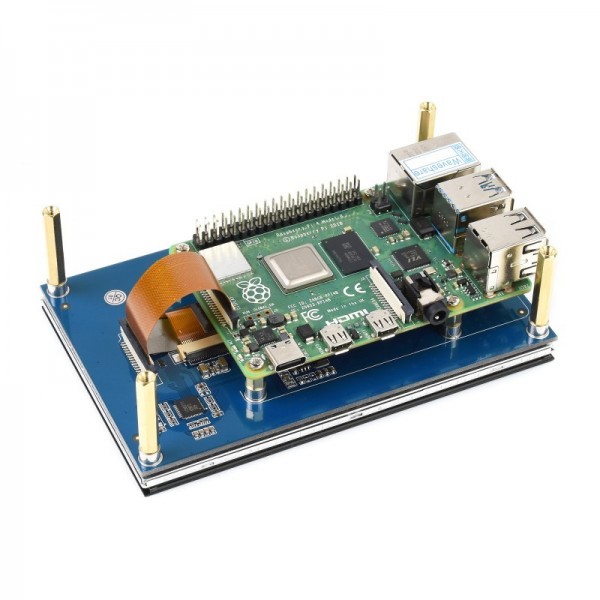

This Waveshare display with a capacitive touchscreen is specially made to be placed on a Raspberry Pi (see images). The display communicates with the Raspberry Pi via DSI.

Note: This display is only supported by Raspberry Pi.

Note: Raspberry Pi is not included.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare 5 inch DSI TFT-LCD Display 800*480 with Touchscreen - for Raspberry Pi

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare 5 inch DSI TFT-LCD Display 800*480 with Touchscreen - for Raspberry Pi , WS-18396 , TFT

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	18396
Features	Display Touchscreen
General physical appearance
Main color	Blue
Weight [g]	143

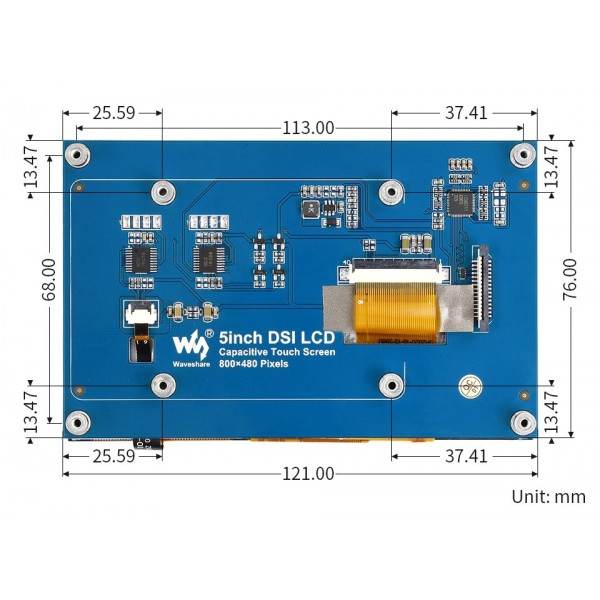

Dimension X [mm]	121
Dimension Y [mm]	76
Mounting options	Screw thread
Thread size	M2.5
Form factor	Module (general) Raspberry Pi SBC layout/HAT
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	I2C DSI
Display
Type	TFT
Screen diagonal [inch]	5
Number of pixels long side	800
Number of pixels short side	480
Display shape	Rectangular
Pixel colors	RGB
Touchscreen
Touch type	Capacitive
Multi-touch support	Yes
Connectors
Power supply connector(s)	FFC female 15p 1.00mm
IO-connector(s)	FFC female 15p 1.00mm
Package contents
Package contents	1x Display module 1x Mounting material 1x FFC 15p 1.00mm cable
