Waveshare 5 inch DSI TFT-LCD Display 800*480 pixels with Touchscreen and Adhesive Strip for Raspberry Pi

Waveshare 5 inch DSI TFT-LCD Display 800*480 pixels with Touchscreen and Adhesive Strip for Raspberry Pi
Waveshare 5 inch DSI TFT-LCD Display 800*480 pixels with Touchscreen and Adhesive Strip for Raspberry Pi
Waveshare 5 inch DSI TFT-LCD Display 800*480 pixels with Touchscreen and Adhesive Strip for Raspberry Pi
Waveshare 5 inch DSI TFT-LCD Display 800*480 pixels with Touchscreen and Adhesive Strip for Raspberry Pi
Waveshare 5 inch DSI TFT-LCD Display 800*480 pixels with Touchscreen and Adhesive Strip for Raspberry Pi
Waveshare 5 inch DSI TFT-LCD Display 800*480 pixels with Touchscreen and Adhesive Strip for Raspberry Pi
Waveshare 5 inch DSI TFT-LCD Display 800*480 pixels with Touchscreen and Adhesive Strip for Raspberry Pi
Waveshare 5 inch DSI TFT-LCD Display 800*480 pixels with Touchscreen and Adhesive Strip for Raspberry Pi
Waveshare 5 inch DSI TFT-LCD Display 800*480 pixels with Touchscreen and Adhesive Strip for Raspberry Pi
Waveshare 5 inch DSI TFT-LCD Display 800*480 pixels with Touchscreen and Adhesive Strip for Raspberry Pi
Waveshare 5 inch DSI TFT-LCD Display 800*480 pixels with Touchscreen and Adhesive Strip for Raspberry Pi
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 004288
Based on 3 review(s) - Write a review
€43.00
Ex Tax: €35.54
10 or more €42.00
20 or more €41.00
50 or more €40.00
100 or more €39.00
Add to Cart
Add to wishlist

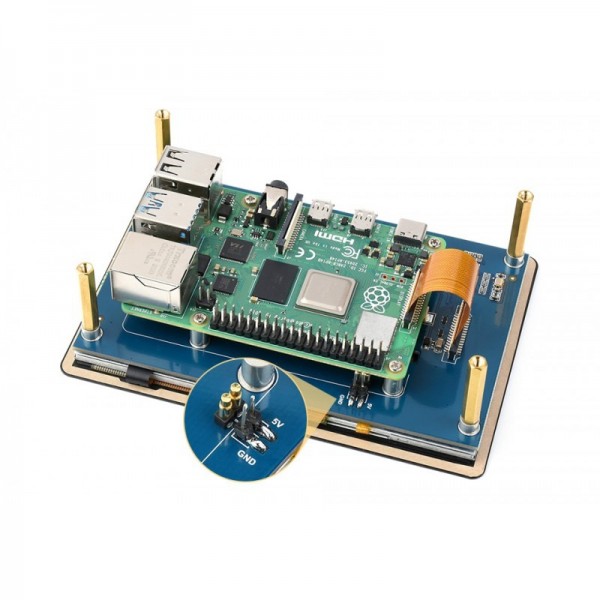

This Waveshare display with a capacitive touchscreen is specially made to be placed on a Raspberry Pi (see images). The display communicates with the Raspberry Pi via DSI. In addition, this display has an adhesive strip along the edges of the screen, which makes it very easy to build in.

See the following page to get the display and touchscreen up and running: 5inch DSI LCD (B)

Note: This screen is only supported by Raspberry Pi.

Note: Raspberry Pi is not included.

Please login or register to review
Tags: Displays , TFT , Waveshare 5 inch DSI TFT-LCD Display 800*480 pixels with Touchscreen and Adhesive Strip for Raspberry Pi , 004288 , Waveshare , 21973 , Display , Touchscreen , MIPI (DSI)

Specifications

General
Brand Waveshare
Manufacturer model/SKU
Features Display
Touchscreen
General physical appearance
Main color Black
Weight [g] 135

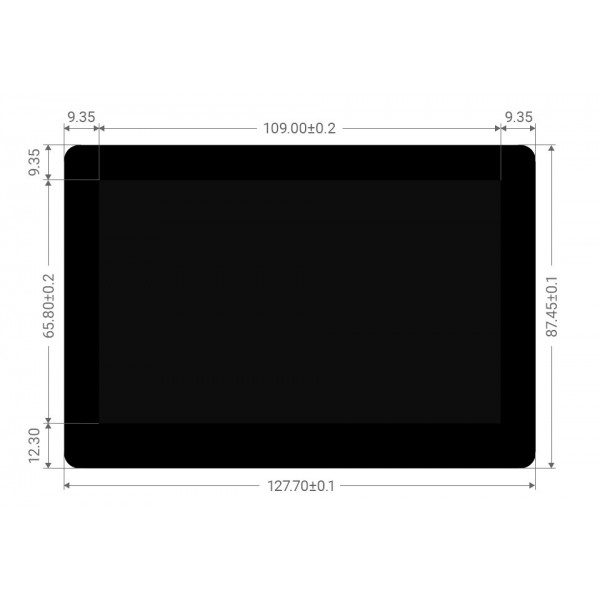

Dimension X [mm] 128
Dimension Y [mm] 88
Mounting options Screw thread
Adhesive layer
Thread size M2.5
Form factor Module (general)
Raspberry Pi SBC layout/HAT
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) MIPI (DSI)
Display
Type TFT
Screen diagonal [inch] 5
Number of pixels long side 800
Number of pixels short side 480
Display shape Rectangular
Pixel colors RGB
Touchscreen
Touch type Capacitive
Multi-touch support Yes
Connectors
Power supply connector(s) Pogo pin(s)
Pin header male (2.54mm)
IO-connector(s) FFC female 15p 1.00mm
Package contents
Package contents 1x Display module
1x Mounting material
