  • Availability: 2-4 Weeks
  • SKU: 003842
Based on 0 review(s) - Write a review
€35.50
Ex Tax: €29.34
Add to Cart
Add to wishlist

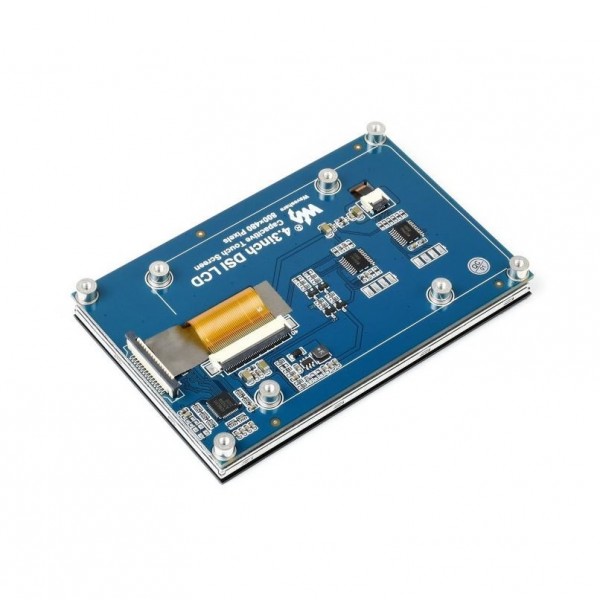

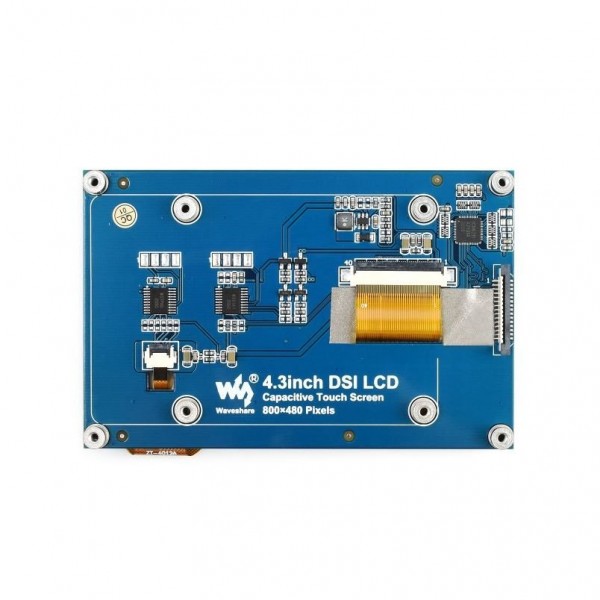

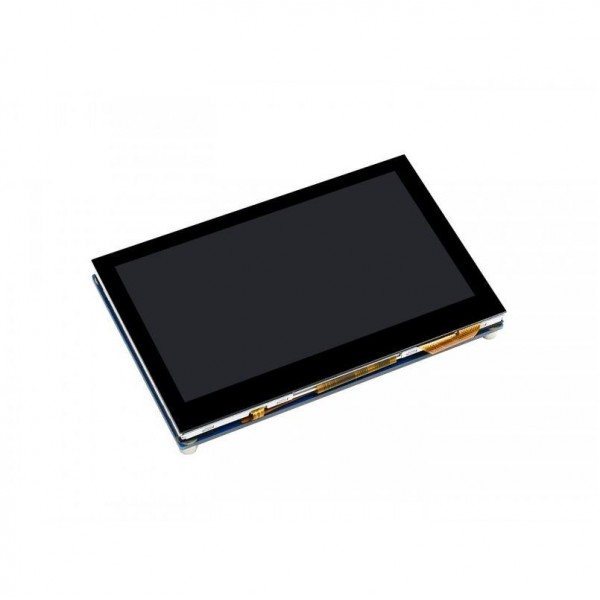

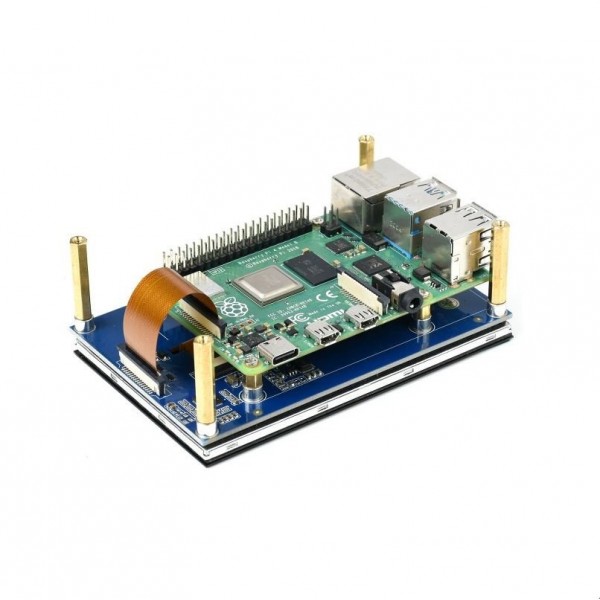

This Waveshare display with a capacitive touchscreen is specially made to be placed on a Raspberry Pi (see images). The display communicates with the Raspberry Pi via DSI.

Note: This display is only supported by Raspberry Pi.

Note: Raspberry Pi is not included.

Note: Modifications are required for Rev 2.1 in combination with a Raspberry Pi 5. See the page below for instructions.

See the following page for more information: Wiki

Please login or register to review
Tags: Displays , TFT , Waveshare 4.3 inch DSI IPS-TFT-LCD Display 800*480 with Touchscreen - for Raspberry Pi , 003842 , Waveshare , 16239 , Display , Touchscreen , MIPI (DSI)

Specifications

General
Brand Waveshare
Manufacturer model/SKU
Model revision
Features Display
Touchscreen
General physical appearance
Main color Blue
Weight [g] 103

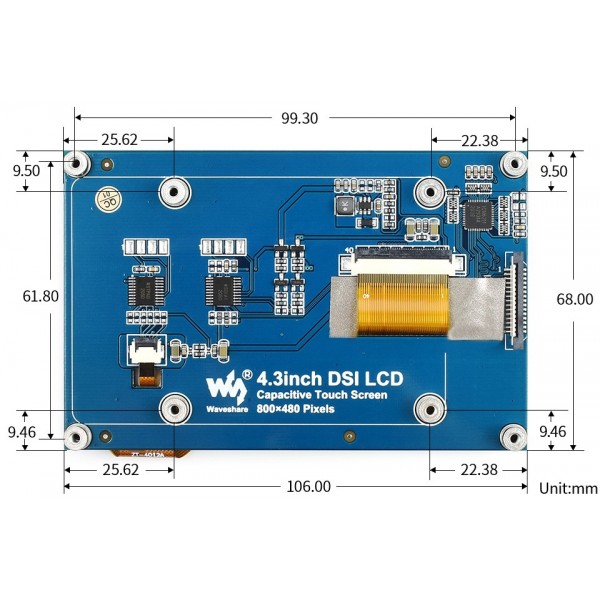

Dimension X [mm] 106
Dimension Y [mm] 68
Mounting options Screw thread
Thread size M2.5
Form factor Module (general)
Raspberry Pi SBC layout/HAT
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 3.3
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) MIPI (DSI)
Display
Type IPS
Screen diagonal [inch] 4.3
Number of pixels long side 800
Number of pixels short side 480
Display shape Rectangular
Pixel colors RGB
Touchscreen
Touch type Capacitive
Multi-touch support Yes
Connectors
Power supply connector(s) FFC female 15p 1.00mm
IO-connector(s) FFC female 15p 1.00mm
Package contents
Package contents 1x Display module
1x Mounting material
