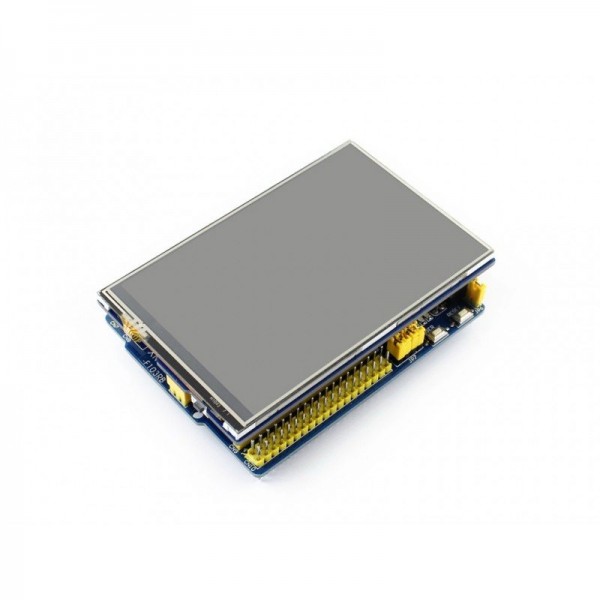

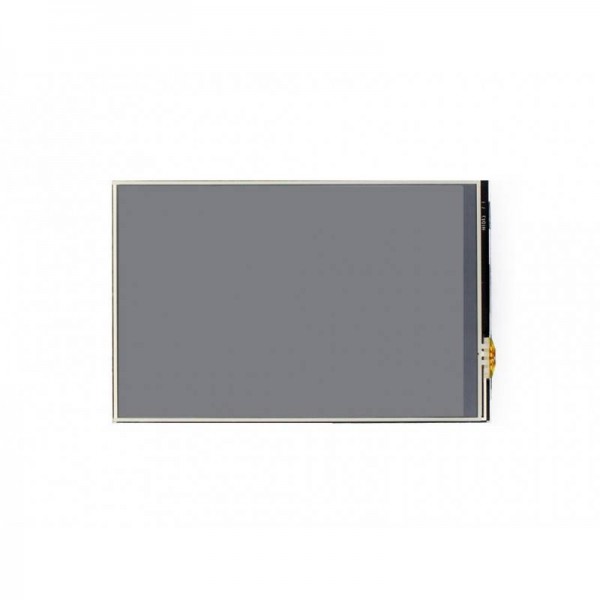

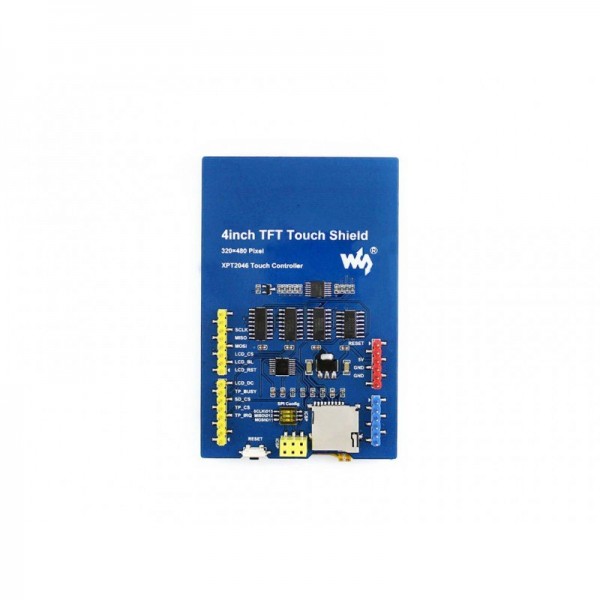

Waveshare 4 inch TFT Display Shield - 480*320 Pixels - with Touchscreen - for Arduino

Waveshare 4 inch TFT Display Shield - 480*320 Pixels - with Touchscreen - for Arduino
Waveshare 4 inch TFT Display Shield - 480*320 Pixels - with Touchscreen - for Arduino
Waveshare 4 inch TFT Display Shield - 480*320 Pixels - with Touchscreen - for Arduino
Waveshare 4 inch TFT Display Shield - 480*320 Pixels - with Touchscreen - for Arduino
Waveshare 4 inch TFT Display Shield - 480*320 Pixels - with Touchscreen - for Arduino
Waveshare 4 inch TFT Display Shield - 480*320 Pixels - with Touchscreen - for Arduino
Waveshare 4 inch TFT Display Shield - 480*320 Pixels - with Touchscreen - for Arduino
Waveshare 4 inch TFT Display Shield - 480*320 Pixels - with Touchscreen - for Arduino
Waveshare 4 inch TFT Display Shield - 480*320 Pixels - with Touchscreen - for Arduino
Waveshare 4 inch TFT Display Shield - 480*320 Pixels - with Touchscreen - for Arduino
Waveshare 4 inch TFT Display Shield - 480*320 Pixels - with Touchscreen - for Arduino
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 003560
€29.00
Ex Tax: €23.97

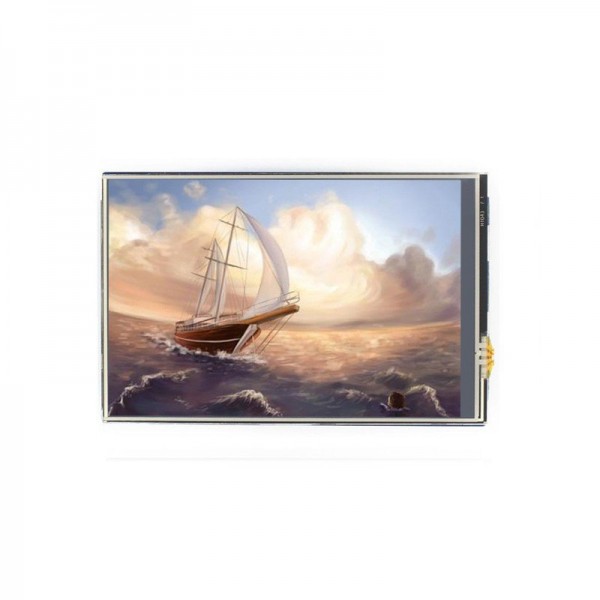

With this display shield for Arduino, images and/or animations can be displayed.

See the following page for more information: 4 inch TFT Touch Shield

Note: Waveshare claims that this product works with an Arduino Uno, however the touchscreen controller and SD cards officially cannot handle the 5V signals of the Uno. Although it will work, we cannot guarantee that it will continue to work (stable) over time. We certainly do not recommend using SD cards in combination with a 5V micrcontroller (such as the Uno).

Please login or register to review

Specifications

General
Brand Waveshare
Manufacturer model/SKU 13587
Features Display
Touchscreen
SD-card adapter
General physical appearance
Main color Blue
Weight [g] 88

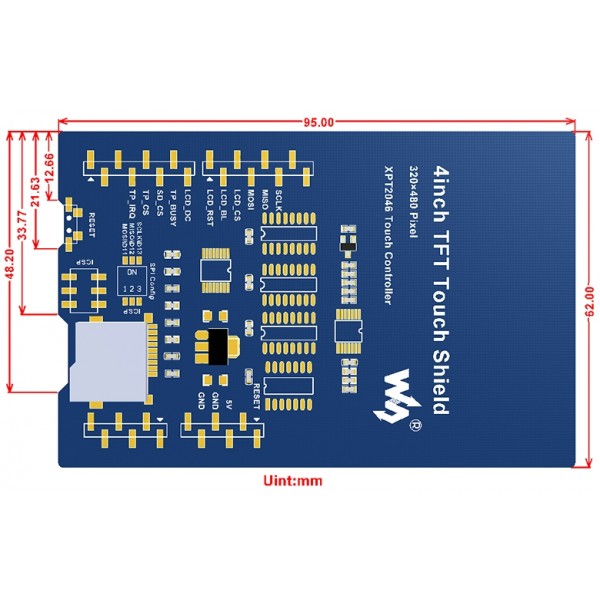

Dimension X [mm] 95
Dimension Y [mm] 62
Mounting options Pin headers
Form factor Uno layout/shield
Experiment PCB friendly No
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) SPI
PWM
(PWM backlight control)
Supported SD card size Micro SD
Display
Type TFT
Driver ILI9486
Screen diagonal [inch] 4
Number of pixels long side 480
Number of pixels short side 320
Display shape Rectangular
Pixel colors RGB
Touchscreen
Touchscreen controller XPT2046
Touch type Resistive
Multi-touch support No
Connectors
Power supply connector(s) Pin header male (2.54mm)
IO-connector(s) Pin header male (2.54mm)
Pin header female (2.54mm)
Package contents
Package contents 1x Display module
