Waveshare 3.5 inch IPS-TFT-LCD Display 480*320 pixels - with Touchscreen - For Raspberry Pi Pico

Waveshare 3.5 inch IPS-TFT-LCD Display 480*320 pixels - with Touchscreen - For Raspberry Pi Pico
Waveshare 3.5 inch IPS-TFT-LCD Display 480*320 pixels - with Touchscreen - For Raspberry Pi Pico
Waveshare 3.5 inch IPS-TFT-LCD Display 480*320 pixels - with Touchscreen - For Raspberry Pi Pico
Waveshare 3.5 inch IPS-TFT-LCD Display 480*320 pixels - with Touchscreen - For Raspberry Pi Pico
Waveshare 3.5 inch IPS-TFT-LCD Display 480*320 pixels - with Touchscreen - For Raspberry Pi Pico
Waveshare 3.5 inch IPS-TFT-LCD Display 480*320 pixels - with Touchscreen - For Raspberry Pi Pico
Waveshare 3.5 inch IPS-TFT-LCD Display 480*320 pixels - with Touchscreen - For Raspberry Pi Pico
Waveshare 3.5 inch IPS-TFT-LCD Display 480*320 pixels - with Touchscreen - For Raspberry Pi Pico
Waveshare 3.5 inch IPS-TFT-LCD Display 480*320 pixels - with Touchscreen - For Raspberry Pi Pico
Waveshare 3.5 inch IPS-TFT-LCD Display 480*320 pixels - with Touchscreen - For Raspberry Pi Pico
Waveshare 3.5 inch IPS-TFT-LCD Display 480*320 pixels - with Touchscreen - For Raspberry Pi Pico
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 004754
€20.50
Ex Tax: €16.94

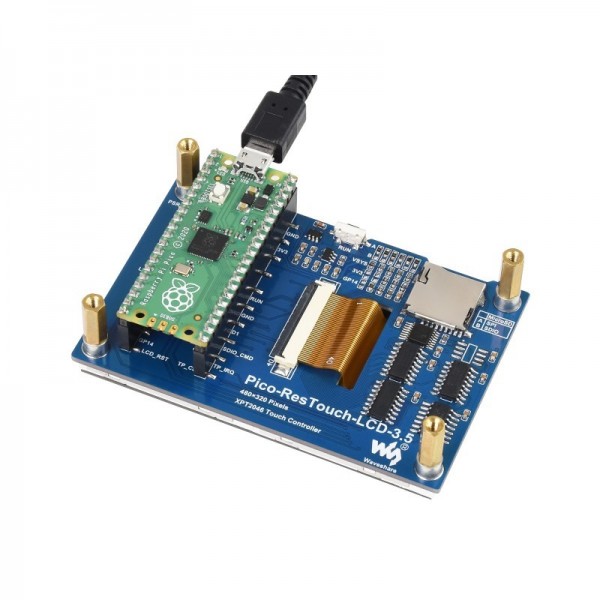

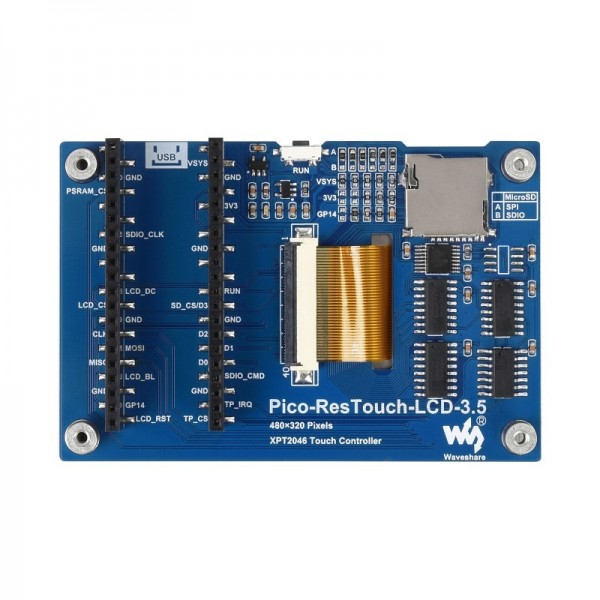

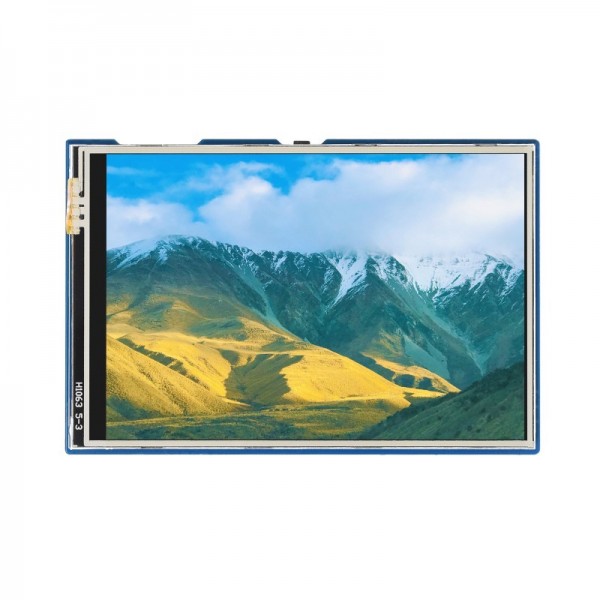

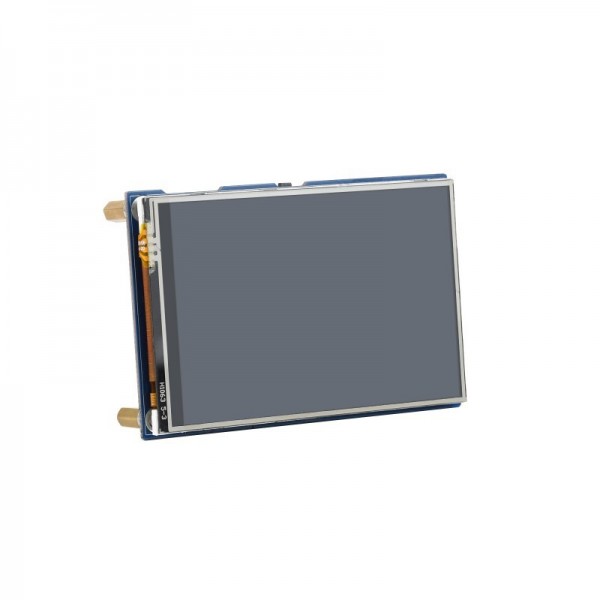

A handy 3.5-inch display with touch screen for your Raspberry Pi Pico.

In combination with the TFT_eSPI library (as indicated in the link below) the colors of the screen may not be correct. To solve it, find te following line in the setup:

tft.init();

and add the following line directly after it:

tft.invertDisplay(1);

See the following page for more information: Wiki

Please login or register to review

Specifications

General
Brand Waveshare
Manufacturer model/SKU 19907
Features Display
Touchscreen
SD-card adapter
General physical appearance
Main color Blue
Weight [g] 56

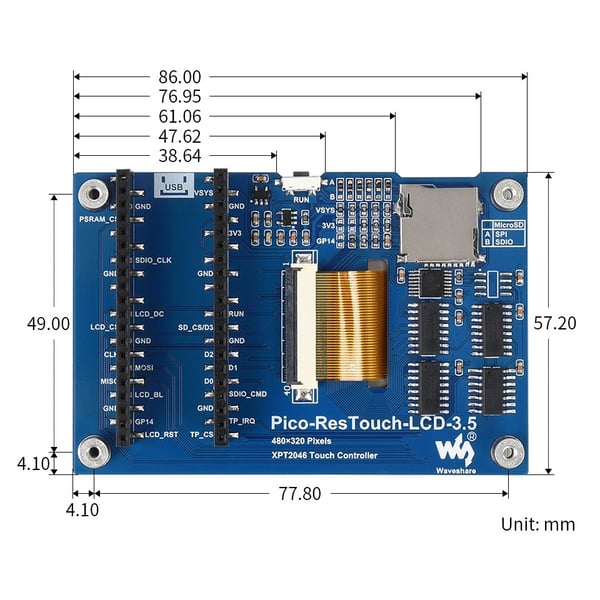

Dimension X [mm] 86
Dimension Y [mm] 57
Mounting options Screw thread
Form factor Module (general)
Raspberry Pi Pico layout/shield
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) SPI
Supported SD card size Micro SD
Display
Type IPS
Driver ILI9488
Screen diagonal [inch] 3.5
Number of pixels long side 480
Number of pixels short side 320
Pixel colors RGB
Touchscreen
Touchscreen controller XPT2046
Touch type Resistive
Multi-touch support No
Connectors
Power supply connector(s) Pin header female (2.54mm)
IO-connector(s) Pin header female (2.54mm)
Package contents
Package contents 1x Display module
4x Spacer
1x Touch pen
