Name: Waveshare 1.44 inch SPI TFT-LCD Display 128*128 pixels - Raspberry Pi Compatible - WS-13891
Brand: Waveshare
SKU: 002622
Price: 12 EUR
Availability: InStock

Waveshare 1.44 inch SPI TFT-LCD Display 128*128 pixels - Raspberry Pi Compatible

Availability: Directly available from warehouse in Eindhoven
SKU: 002622

Based on 0 review(s) - Write a review

€12.00

Ex Tax: €9.92

10 or more €11.75

20 or more €11.50

50 or more €11.25

Qty

Add to Cart

Add to wishlist

Only 4 pieces in stock

Description
Reviews

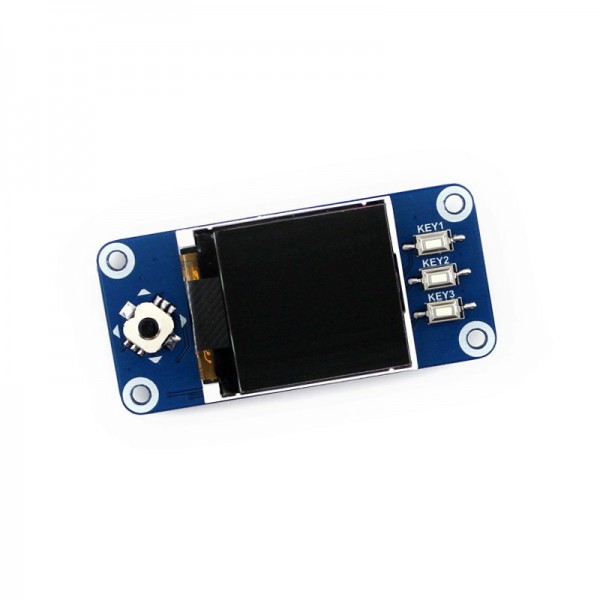

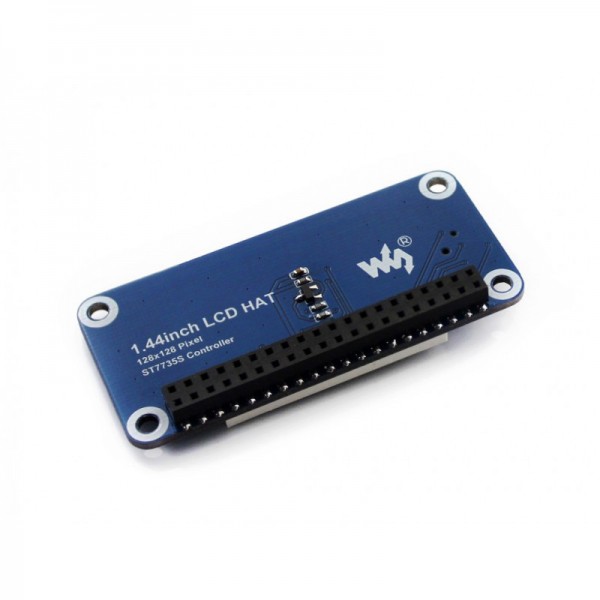

This 1.44 inch Waveshare display is connected via the SPI interface of Raspberry Pi. The HAT has an integrated joystick and three tactile push buttons

For more information, see the following page: 1.44 inch LCD HAT

Please login or register to review

Reviews Over Waveshare 1.44 inch SPI TFT-LCD Display 128*128 pixels - Raspberry Pi Compatible

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare 1.44 inch SPI TFT-LCD Display 128*128 pixels - Raspberry Pi Compatible , WS-13891 , TFT

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	13891
Features	Display Programmable button(s)
General physical appearance
Main color	Blue
Weight [g]	13

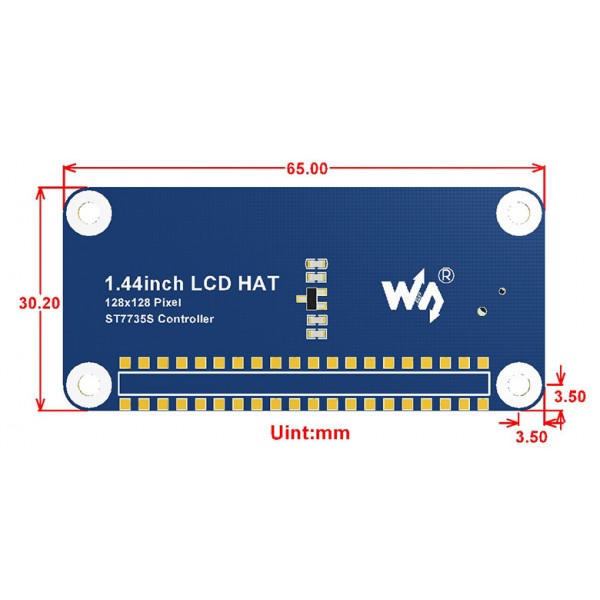

Dimension X [mm]	65
Dimension Y [mm]	31
Mounting options	Pin headers Mounting hole(s)
Diameter mounting hole(s) [mm]	3
Form factor	Module (general) Raspberry Pi SBC layout/HAT
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	3.3
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	SPI
Display
Type	TFT
Driver	ST7735S
Screen diagonal [inch]	1.44
Number of pixels long side	128
Number of pixels short side	128
Display shape	Square
Pixel colors	RGB
Switch
Switching method	Physical (sensor switch)
Switch type	Push
Number of channels/gangs	8
Connectors
Power supply connector(s)	Pin header female (2.54mm)
IO-connector(s)	Pin header female (2.54mm)
Package contents
Package contents	1x Display module 1x Mounting material
