Name: Waveshare 1.3 inch SPI IPS-TFT-LCD Display 240*240 pixels - for Raspberry Pi Pico - WS-19650
Brand: Waveshare
SKU: 004815
Price: 8.5 EUR
Availability: InStock

Waveshare 1.3 inch SPI IPS-TFT-LCD Display 240*240 pixels - for Raspberry Pi Pico

Availability: Directly available from warehouse in Eindhoven
SKU: 004815

Based on 0 review(s) - Write a review

€8.50

Ex Tax: €7.02

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

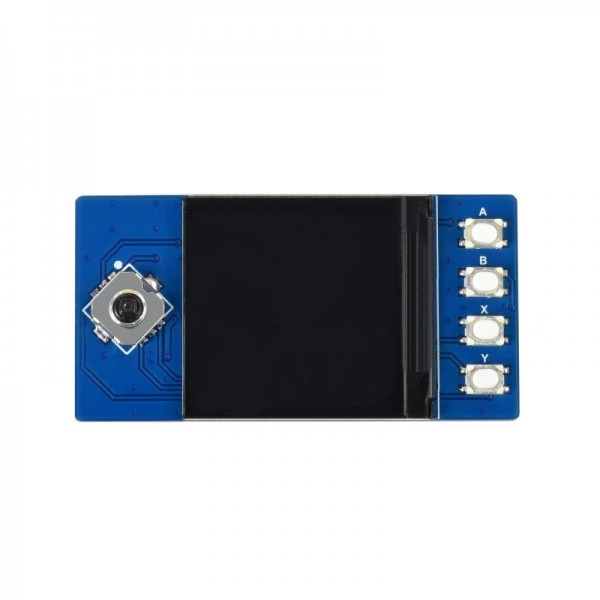

This 1.3 inch Waveshare display HAT is connected via the SPI interface of Raspberry Pi Pico. The HAT has an integrated joystick and four tactile push buttons.

Note: No Raspberry Pi Pico is included.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare 1.3 inch SPI IPS-TFT-LCD Display 240*240 pixels - for Raspberry Pi Pico

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare 1.3 inch SPI IPS-TFT-LCD Display 240*240 pixels - for Raspberry Pi Pico , WS-19650 , TFT

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	19650
Features	Display Programmable button(s)
General physical appearance
Main color	Blue
Weight [g]	12

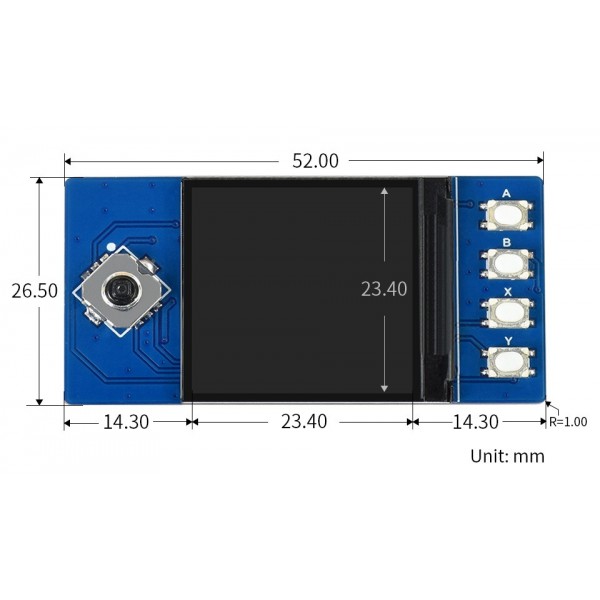

Dimension X [mm]	52
Dimension Y [mm]	27
Form factor	Module (general) Raspberry Pi Pico layout/shield
General electrical properties
Minimum supply voltage [V DC]	2.6
Maximum supply voltage [V DC]	5.5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	SPI
Display
Type	IPS
Driver	ST7789
Screen diagonal [inch]	1.3
Number of pixels long side	240
Number of pixels short side	240
Display shape	Square
Pixel colors	RGB
Switch
Switching method	Physical (sensor switch)
Switch type	Push
Number of channels/gangs	9
Connectors
Power supply connector(s)	Pin header female (2.54mm)
IO-connector(s)	Pin header female (2.54mm)
Package contents
Package contents	1x Display module
