Name: Waveshare 1.14 inch IPS-TFT-LCD Display - 240*135 Pixels - SPI - WS-18231
Brand: Waveshare
SKU: 003480
Price: 8.5 EUR
Availability: InStock

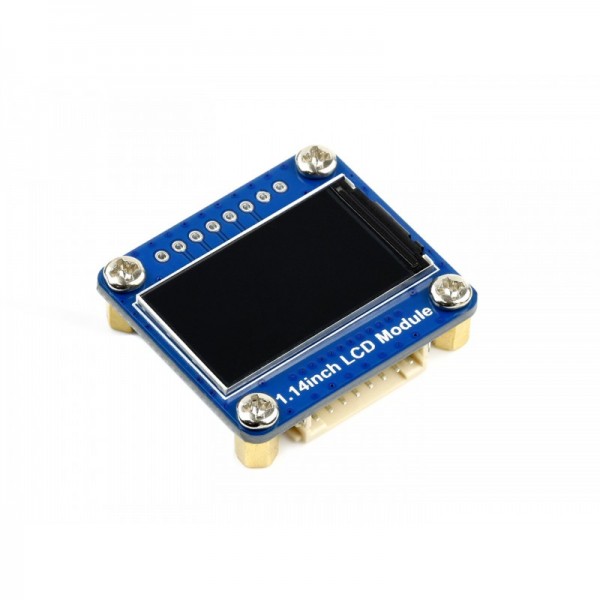

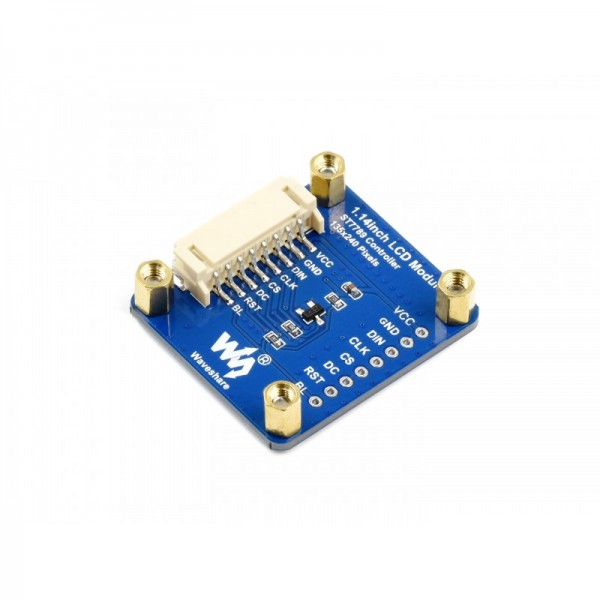

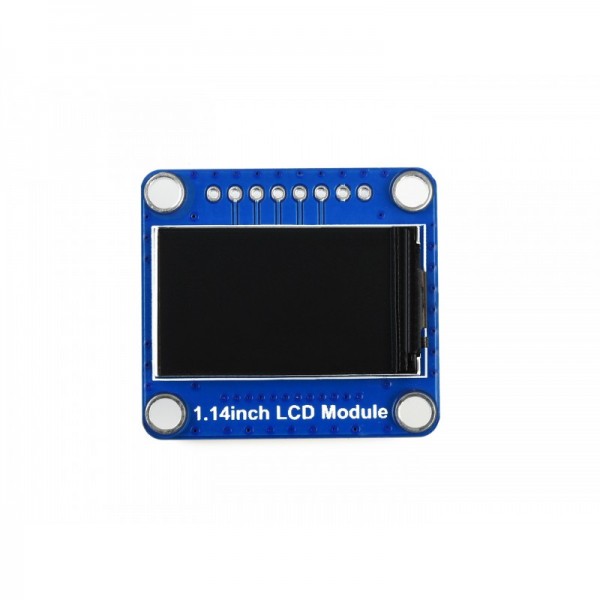

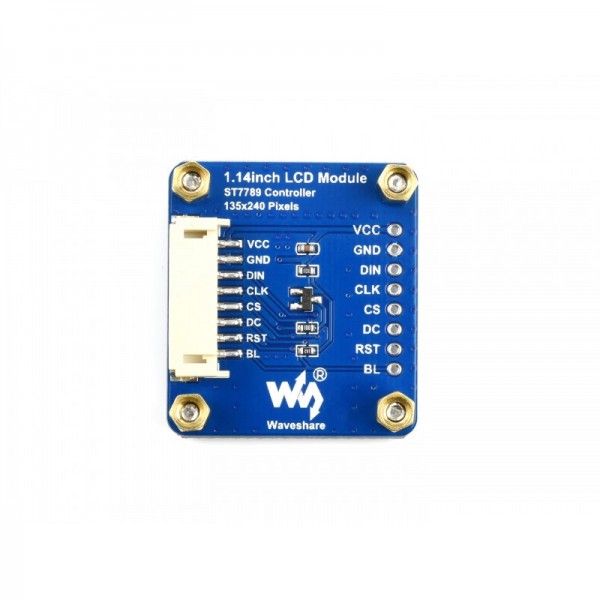

Waveshare 1.14 inch IPS-TFT-LCD Display - 240*135 Pixels - SPI

Availability: Directly available from warehouse in Eindhoven
SKU: 003480

Based on 0 review(s) - Write a review

€8.50

Ex Tax: €7.02

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

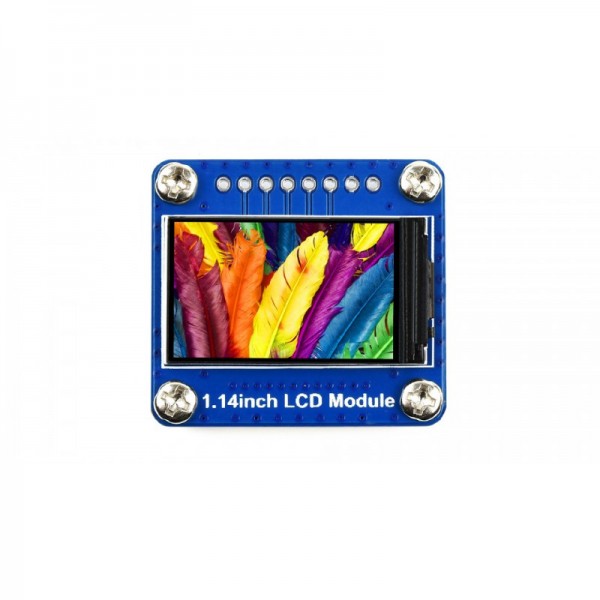

With this display for Arduino, Raspberry Pi, STM32, or other microcontroller, images and/or animations can be displayed.

See the following page for more information: 1.14 inch SPI IPS-TFT-LCD Display Module

Please login or register to review

Reviews Over Waveshare 1.14 inch IPS-TFT-LCD Display - 240*135 Pixels - SPI

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare 1.14 inch IPS-TFT-LCD Display - 240*135 Pixels - SPI , WS-18231 , TFT

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	18231
Features	Display
General physical appearance
Main color	Blue
Weight [g]	7
Dimension X [mm]	36
Dimension Y [mm]	32
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3.0
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	3.3
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	SPI
Display
Type	IPS
Driver	ST7789
Screen diagonal [inch]	1.14
Number of pixels long side	240
Number of pixels short side	135
Display shape	Rectangular
Pixel colors	RGB
Connectors
Power supply connector(s)	JST-PH (compatible) male Through hole solder pin(s) (2.54mm)
IO-connector(s)	JST-PH (compatible) male Through hole solder pin(s) (2.54mm)
Package contents
Package contents	1x Display module 1x Mounting material 1x JST-PH 8p to DuPont cable (~20cm)
