Waveshare 0.96 inch SPI IPS-TFT-LCD Display 160*80 pixels - for Raspberry Pi Pico

Waveshare 0.96 inch SPI IPS-TFT-LCD Display 160*80 pixels - for Raspberry Pi Pico
Waveshare 0.96 inch SPI IPS-TFT-LCD Display 160*80 pixels - for Raspberry Pi Pico
Waveshare 0.96 inch SPI IPS-TFT-LCD Display 160*80 pixels - for Raspberry Pi Pico
Waveshare 0.96 inch SPI IPS-TFT-LCD Display 160*80 pixels - for Raspberry Pi Pico
Waveshare 0.96 inch SPI IPS-TFT-LCD Display 160*80 pixels - for Raspberry Pi Pico
2-4 Weeks
Waveshare 0.96 inch SPI IPS-TFT-LCD Display 160*80 pixels - for Raspberry Pi Pico
Waveshare 0.96 inch SPI IPS-TFT-LCD Display 160*80 pixels - for Raspberry Pi Pico
Waveshare 0.96 inch SPI IPS-TFT-LCD Display 160*80 pixels - for Raspberry Pi Pico
Waveshare 0.96 inch SPI IPS-TFT-LCD Display 160*80 pixels - for Raspberry Pi Pico
Waveshare 0.96 inch SPI IPS-TFT-LCD Display 160*80 pixels - for Raspberry Pi Pico
Waveshare 0.96 inch SPI IPS-TFT-LCD Display 160*80 pixels - for Raspberry Pi Pico
  • Availability: 2-4 Weeks
  • SKU: 004817
Based on 0 review(s) - Write a review
€7.50
Ex Tax: €6.20
Add to Cart
Add to wishlist

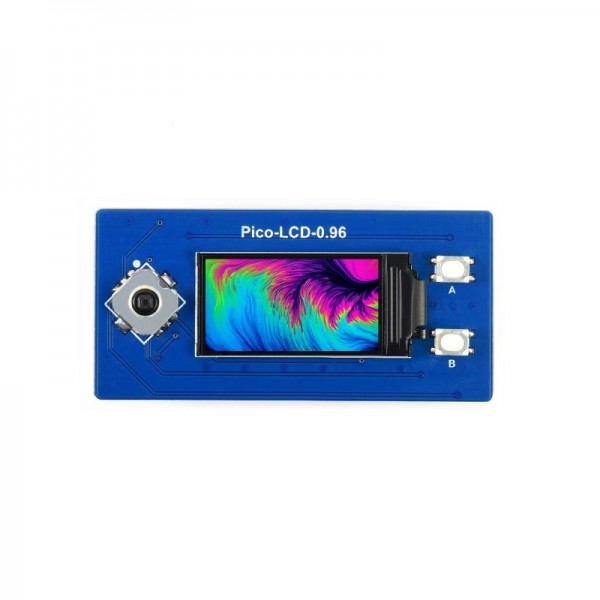

This 0.96 inch Waveshare display HAT is connected via the SPI interface of Raspberry Pi. The HAT has an integrated joystick and two push buttons.

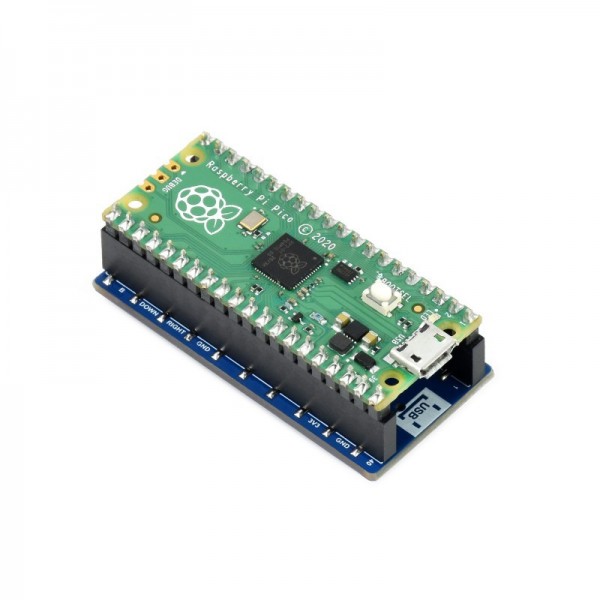

Note: No Raspberry Pi Pico is included.

See the following page for more information: Wiki

Please login or register to review
Tags: Displays , TFT , Waveshare 0.96 inch SPI IPS-TFT-LCD Display 160*80 pixels - for Raspberry Pi Pico , 004817 , Waveshare , 19653 , Display , Programmable button(s) , SPI

Specifications

General
Brand Waveshare
Manufacturer model/SKU 19653
Features Display
Programmable button(s)
General physical appearance
Main color Blue
Weight [g] 10

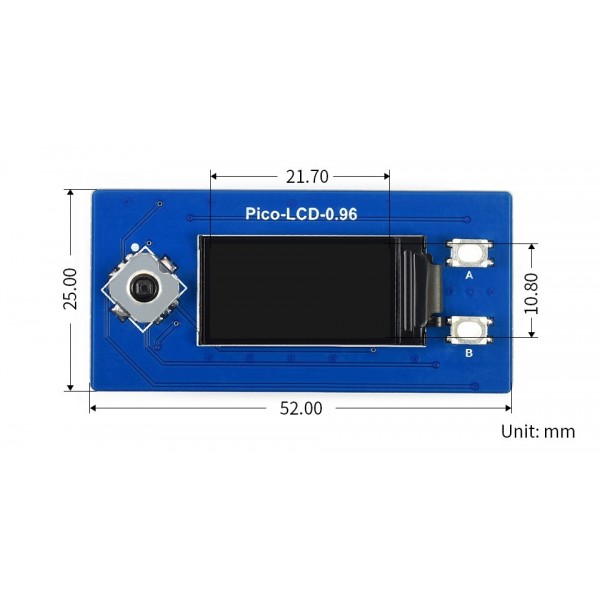

Dimension X [mm] 52
Dimension Y [mm] 25
Form factor Module (general)
Raspberry Pi Pico layout/shield
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) SPI
Display
Type IPS
Driver ST7735S
Screen diagonal [inch] 0.96
Number of pixels long side 160
Number of pixels short side 80
Display shape Rectangular
Pixel colors RGB
Switch
Switching method Physical (sensor switch)
Switch type Push
Number of channels/gangs 7
Connectors
Power supply connector(s) Pin header female (2.54mm)
IO-connector(s) Pin header female (2.54mm)
Package contents
Package contents 1x Display module
