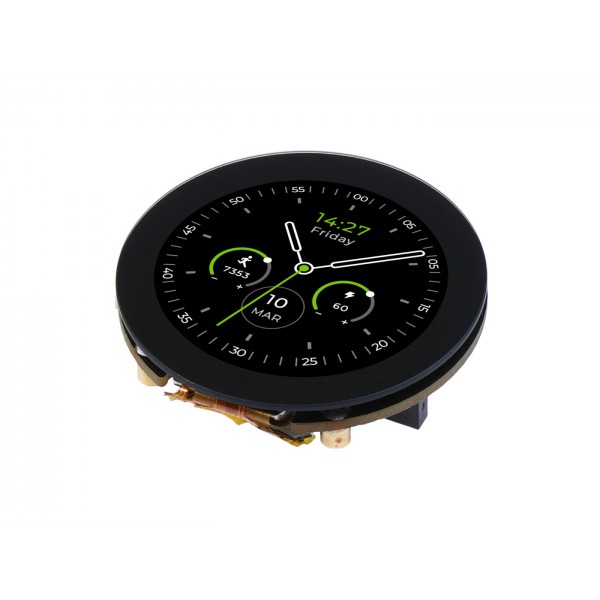

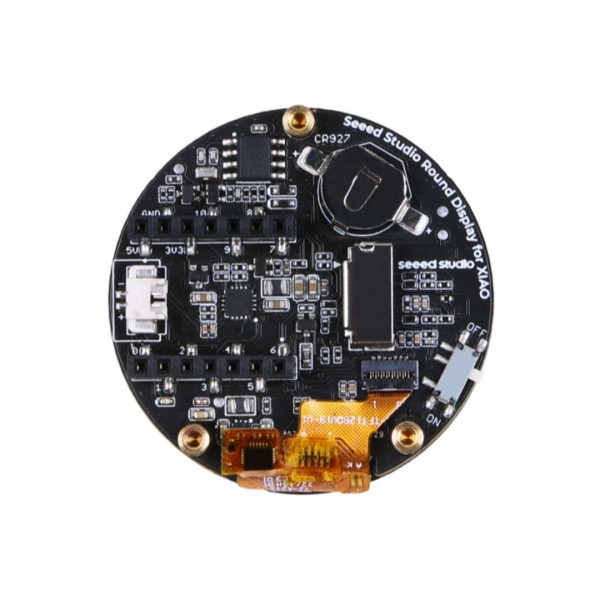

Seeed Studio Round Display for XIAO - Expansion Module with 1.28 inch Touchscreen

Availability: Directly available from warehouse in Eindhoven
SKU: 005382

Based on 0 review(s) - Write a review

€25.00

Ex Tax: €20.66

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

Description
Reviews

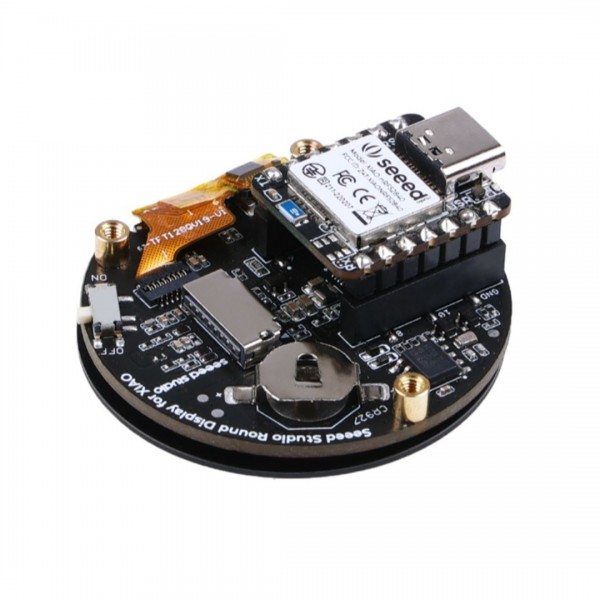

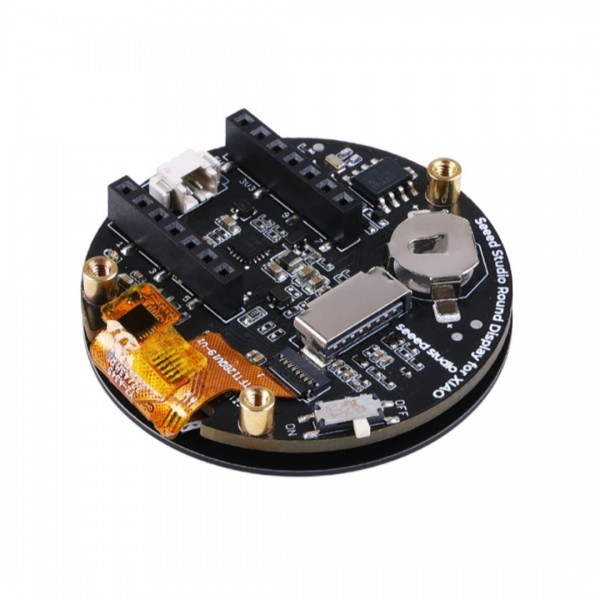

An expansion module with numerous features for the XIAO series (or other development board with the same pin layout) from Seeed Studio.

Note: The battery for the RTC is not charged when the module is powered.

Note: No XIAO is included.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Seeed Studio Round Display for XIAO - Expansion Module with 1.28 inch Touchscreen

Average Rating:

This product has 0 review(s) in total.

Tags: Seeed Studio Round Display for XIAO - Expansion Module with 1.28 inch Touchscreen , SEEED-104030087 , TFT

Specifications

General
Brand	Seeed Studio
Manufacturer model/SKU	104030087
Features	Battery charger Display Touchscreen SD-card adapter Battery holder RTC Battery
General physical appearance
Main color	Black
Weight [g]	15
Dimension X [mm]	43
Dimension Y [mm]	43
Mounting options	Pin headers Screw thread
Thread size	M2
Form factor	Module (general) XIAO/QT layout/shield
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	I2C SPI
Default I2C address	0x51 (RTC) 0x2E (touchscreen)
Adjustable I2C address	No
Built-in pull-up resistor(s) [kΩ]	4.7
Supported SD card size	Micro SD
Display
Type	TFT
Driver	GC9A01
Screen diagonal [inch]	1.28
Number of pixels long side	240
Number of pixels short side	240
Display shape	Round
Pixel colors	RGB
Maximum viewing angle [°]	160
Touchscreen
Touchscreen controller	CHSC6X
Touch type	Capacitive
RTC
RTC chip	PCF8563
Back-up battery/capacitor	Optional
Battery circuit
Battery charger chip/SoC	ETA6003
Supported battery chemistry	Li-ion Li-Po
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	500
Adjustable charging current	No
Protection circuit	No
Battery holder
Suitable battery form factor	Button cell 927 (for RTC backup)
Suitable number of batteries	1
Connectors
Power supply connector(s)	Pin header female (2.54mm)
IO-connector(s)	Pin header female (2.54mm)
Battery connector(s)	Molex Picoblade (compatible) male (for Li-ion/Li-Po)
Package contents
Package contents	1x Round Display for XIAO
