LilyGO T-Beam 2.3 Inch IPS-TFT Display Shield - with Touchscreen
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005944
€20.50
Ex Tax: €16.94
Your shopping cart is empty!

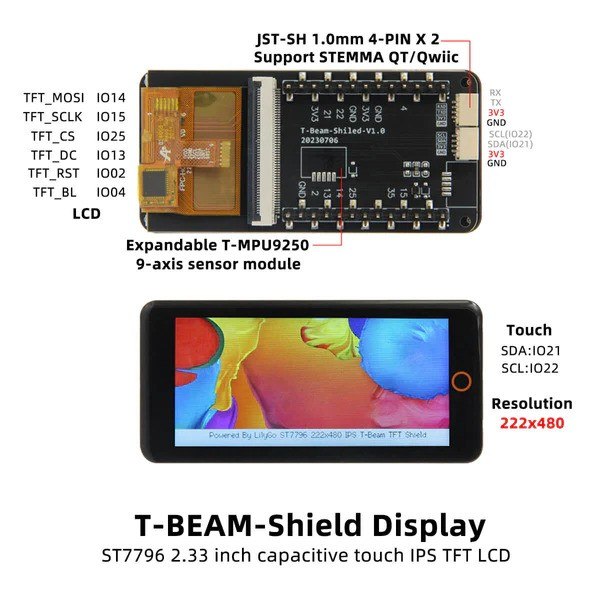

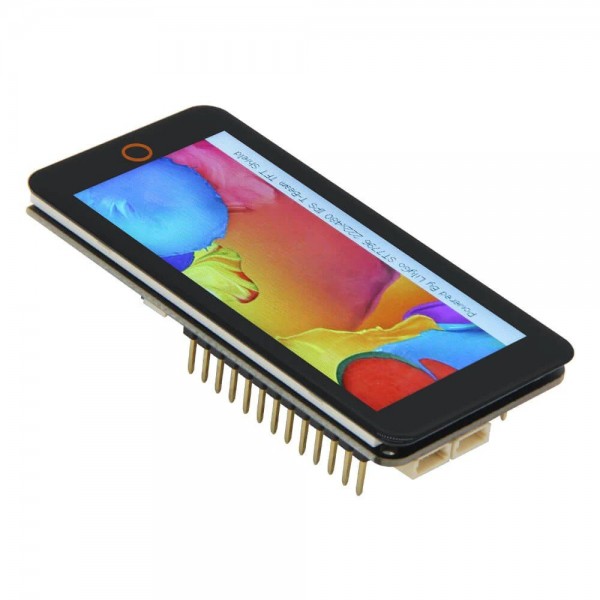

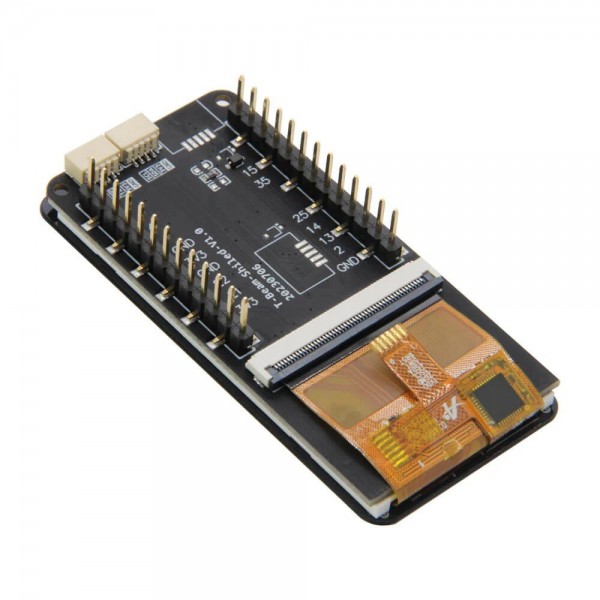

This is a display shield for the LilyGO T-Beam with touchscreen.
See the following page for more information: GitHub
This product has 0 review(s) in total.
| General | |
| Brand | LilyGO TTGO |
| Manufacturer model/SKU | H655 |
| Features | Display Touchscreen |

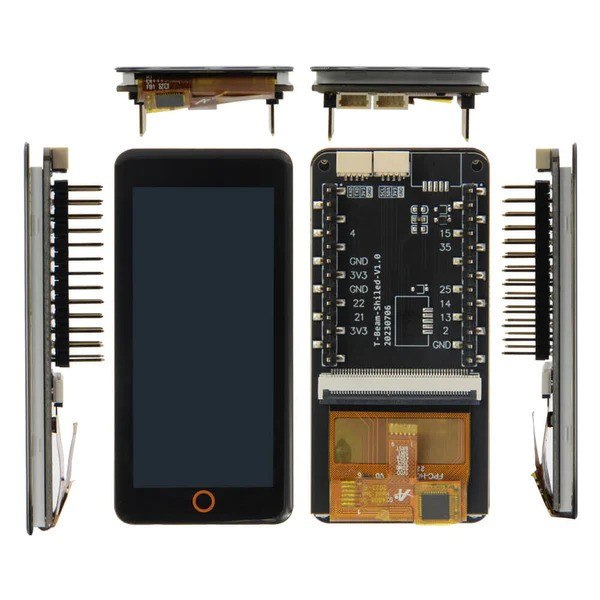

| General physical appearance | |
| Main color | Black |
| Weight [g] | 20 |
| Dimension X [mm] | 69 |
| Dimension Y [mm] | 33 |
| Mounting options | Pin headers |
| Form factor | Module (general) T-Beam layout/shield |
| General electrical properties | |
| Minimum supply voltage [V DC] | 3.3 |
| Maximum supply voltage [V DC] | 3.3 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Communication | |
| Hardware interface(s) | I2C SPI |
| Display | |
| Type | IPS |
| Driver | ST7796 |
| Screen diagonal [inch] | 2.33 |
| Number of pixels long side | 480 |
| Number of pixels short side | 222 |
| Display shape | Rectangular |
| Pixel colors | RGB |
| Touchscreen | |
| Touchscreen controller | CST226SE |
| Touch type | Capacitive |
| Connectors | |
| Power supply connector(s) | JST-SH (compatible) male Pin header male (2.54mm) |
| IO-connector(s) | JST-SH (compatible) male Pin header male (2.54mm) |
| Package contents | |

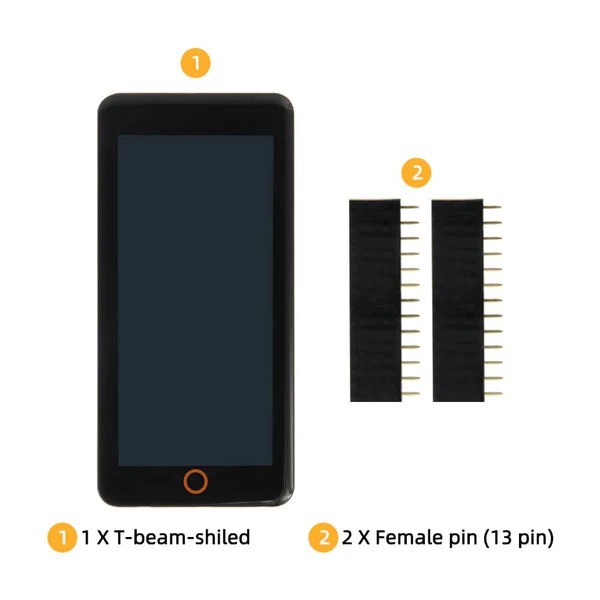

| Package contents | 1x T-Beam Display Shield 2x Female pin header 13p |
