LilyGO 0.85 inch IPS-TFT-LCD Display - 128*128 Pixels - SPI
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005004
€7.00
Ex Tax: €5.79
Your shopping cart is empty!

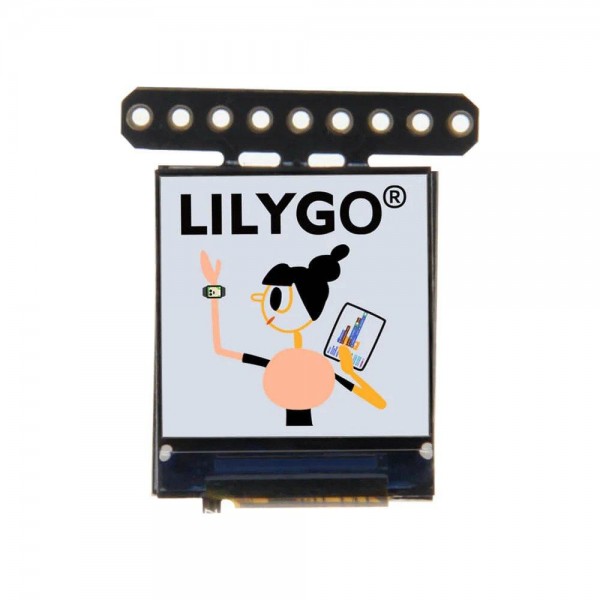

A small display from LilyGO.
See the following page for an Arduino library for this display: Arduino_GFX
This product has 0 review(s) in total.
| General | |
| Brand | LilyGO TTGO |
| Manufacturer model/SKU | H566 |
| Features | Display |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 3 |

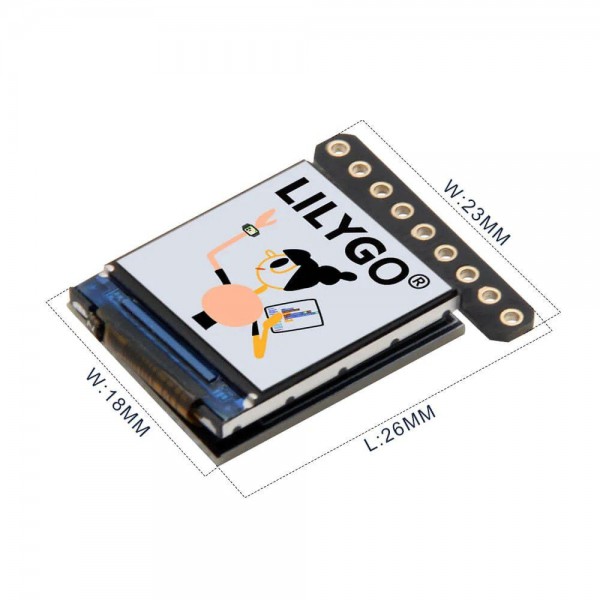

| Dimension X [mm] | 26 |
| Dimension Y [mm] | 23 |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 3.3 |
| Maximum supply voltage [V DC] | 3.3 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Communication | |
| Hardware interface(s) | SPI |
| Display | |
| Type | IPS |

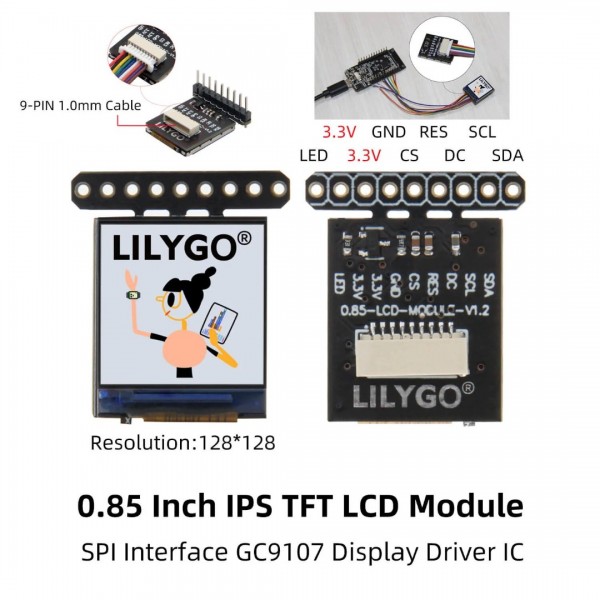

| Driver | GC9107 |
| Screen diagonal [inch] | 0.85 |
| Number of pixels long side | 128 |
| Number of pixels short side | 128 |
| Display shape | Square |
| Pixel colors | RGB |
| Connectors | |
| Power supply connector(s) | JST-SH (compatible) male Through hole solder pin(s) (2.54mm) |
| IO-connector(s) | JST-SH (compatible) male Through hole solder pin(s) (2.54mm) |
| Package contents | |

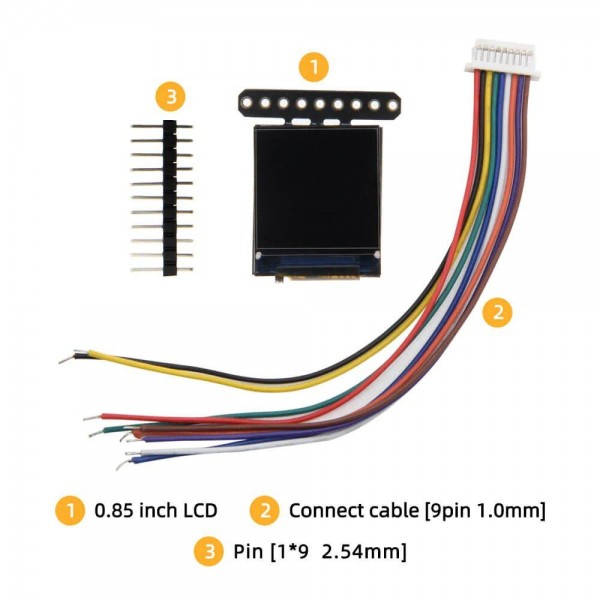

| Package contents | 1x Display module 1x Male pin header 9p 1x JST-SH to loose wire cable |
