Name: DFRobot Fermion 2.2 (1.26) inch TFT SPI Interface LCD Display - DFROBOT-DFR0529
Brand: DFRobot
SKU: 004020
Price: 17.25 EUR
Availability: InStock

DFRobot Fermion 2.2 (1.26) inch TFT SPI Interface LCD Display

Availability: Directly available from warehouse in Eindhoven
SKU: 004020

Based on 0 review(s) - Write a review

€17.25

Ex Tax: €14.26

Qty

Add to Cart

Add to wishlist

Only 1 piece in stock

Description
Reviews

There is no product description available yet.

See the following page for more information: Wiki

Please login or register to review

Reviews Over DFRobot Fermion 2.2 (1.26) inch TFT SPI Interface LCD Display

Average Rating:

This product has 0 review(s) in total.

Tags: DFRobot Fermion 2.2 (1.26) inch TFT SPI Interface LCD Display , DFROBOT-DFR0529 , TFT

Specifications

General
Brand	DFRobot
Manufacturer model/SKU	DFR0529
Features	Display
General physical appearance
Main color	Black
Weight [g]	14

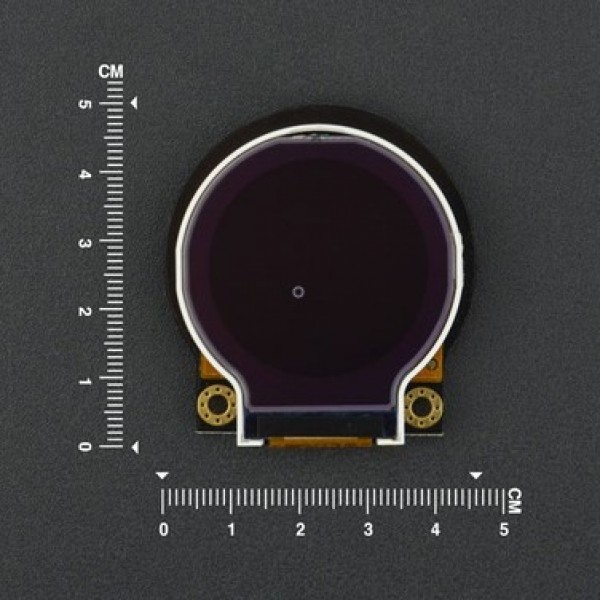

Dimension X [mm]	49
Dimension Y [mm]	46
Mounting options	Pin headers Mounting hole(s)
Diameter mounting hole(s) [mm]	3.2
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5.5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	SPI
Display
Type	TFT
Driver	ST7687S
Screen diagonal [inch]	1.26
Number of pixels long side	128
Number of pixels short side	128
Display shape	Round
Pixel colors	RGB
Connectors
Power supply connector(s)	Pin header male (2.54mm)
IO-connector(s)	Pin header male (2.54mm)
Package contents
Package contents	1x Display module
