Name: Arduino GIGA Display Shield - 3.97 inch TFT Display 480*800 pixels - Touchscreen - IMU - Microphone - ASX00039
SKU: 005533
Price: 71.25 EUR
Availability: InStock

Arduino GIGA Display Shield - 3.97 inch TFT Display 480*800 pixels - Touchscreen - IMU - Microphone

Availability: Directly available from warehouse in Eindhoven
SKU: 005533

Based on 0 review(s) - Write a review

€71.25

Ex Tax: €58.88

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

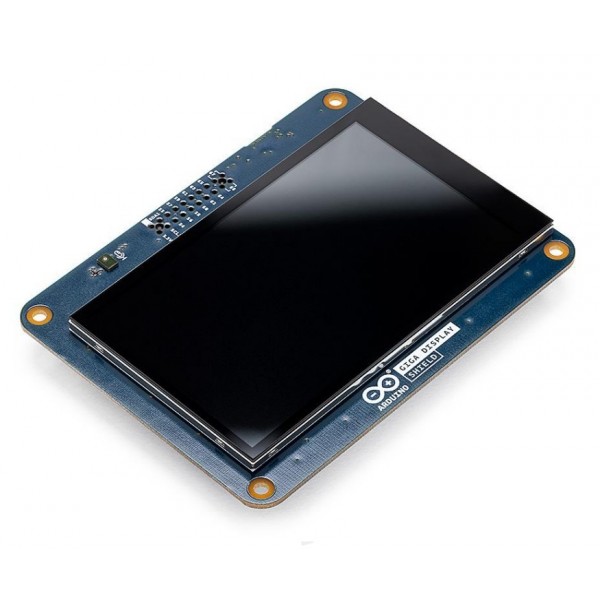

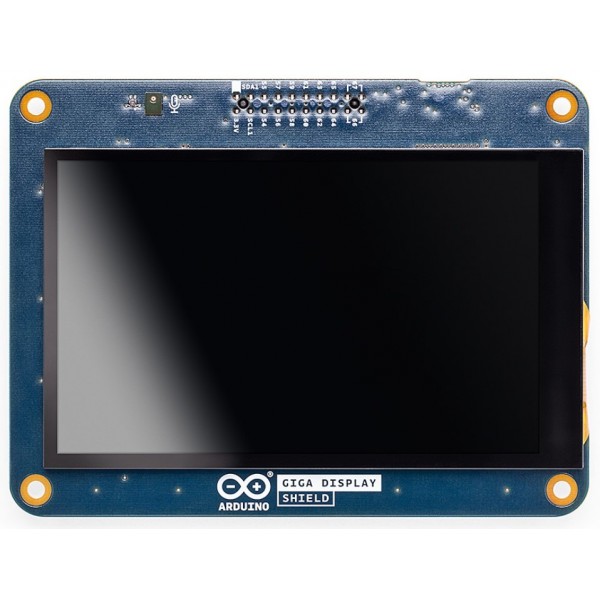

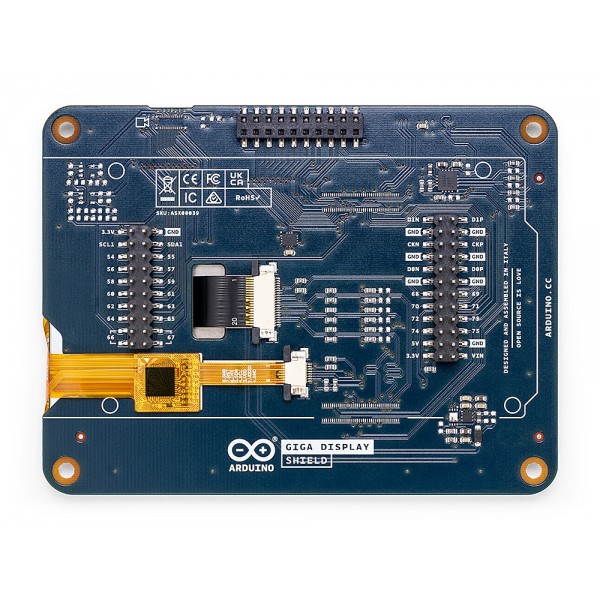

This display shield can be used to easilly expand the Arduino GIGA Wi-Fi R1 with a graphical interface.This module has a 3.97-inch TFT display with capacitive touchscreen. Other features of the display shield include a built-in microphone, RGB LED and IMU (acceleration sensor and gyroscope). The display shield also has a 20-pin connector to connect an Arducam camera.

See the following page for more information: Wiki

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Arduino GIGA Display Shield - 3.97 inch TFT Display 480*800 pixels - Touchscreen - IMU - Microphone

Average Rating:

This product has 0 review(s) in total.

Datasheet: 005533_ASX00039-datasheet.pdf

Tags: Arduino GIGA Display Shield - 3.97 inch TFT Display 480*800 pixels - Touchscreen - IMU - Microphone , ASX00039 , TFT

Specifications

General
Brand	Arduino
Manufacturer model/SKU	ASX00039
Norm conformity	RoHS CE FCC
Minimum operating temperature [°C]	0
Maximum operating temperature [°C]	65
Features	Display Touchscreen Microphone Acceleration sensor Gyroscope Digital LED(s)
General physical appearance
Main color	Blue
Weight [g]	82
Dimension X [mm]	106
Dimension Y [mm]	80
Mounting options	Pin headers Mounting hole(s)
Diameter mounting hole(s) [mm]	3
Form factor	Module (general) Giga layout/shield
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	3.3
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	I2C DSI
Display
Type	TFT
Screen diagonal [inch]	3.97
Number of pixels long side	800
Number of pixels short side	480
Display shape	Rectangular
Pixel colors	RGB
Touchscreen
Touchscreen controller	GT911
Touch type	Capacitive
Multi-touch support	Yes (5 points)
LED
LED (driver) chip	IS31FL3197-QFLS2-TR
LED color	RGB
Acceleration sensor
Sensor chip/SoC	BMI270
Degrees of freedom (DOF)	3
Maximum measuring range [±g]	16
Maximum resolution [bit]	16
Gyroscope
Sensor chip/SoC	BMI270
Degrees of freedom (DOF)	3
Maximum measuring range [±°/s]	2000
Maximum resolution [bit]	16
Sound sensor
Sensor (chip(s))	MP34DT06JTR
Type	Microphone
Sensor technology	MEMS
SNR [dB]	64
Connectors
Power supply connector(s)	Pin header male (2.54mm)
IO-connector(s)	Pin header male (2.54mm) Pin header female (2.54mm)
Package contents
Package contents	1x Arduino GIGA Display Shield
