4 inch TFT Display 320*480 pixels with Touchscreen - SPI - ST7796S - 3.3V

4 inch TFT Display 320*480 pixels with Touchscreen - SPI - ST7796S - 3.3V
4 inch TFT Display 320*480 pixels with Touchscreen - SPI - ST7796S - 3.3V
4 inch TFT Display 320*480 pixels with Touchscreen - SPI - ST7796S - 3.3V
4 inch TFT Display 320*480 pixels with Touchscreen - SPI - ST7796S - 3.3V
4 inch TFT Display 320*480 pixels with Touchscreen - SPI - ST7796S - 3.3V
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005272
Based on 0 review(s) - Write a review
€18.00
Ex Tax: €14.88
10 or more €17.75
20 or more €17.50
50 or more €17.25
100 or more €17.00
Add to Cart
Add to wishlist

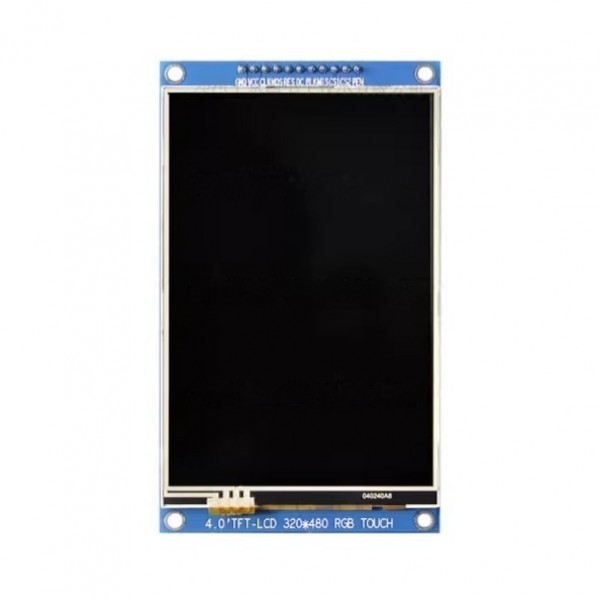

A TFT display with resistive touchscreen based on the ST7796S driver.

Instructions display and touchscreen:
To get the display working you can use the Adafruit_ST7796S_kbv library. This library works with the Adafruit-GFX-Library.
For the touchscreen the XPT2046_Touchscreen library can be used.

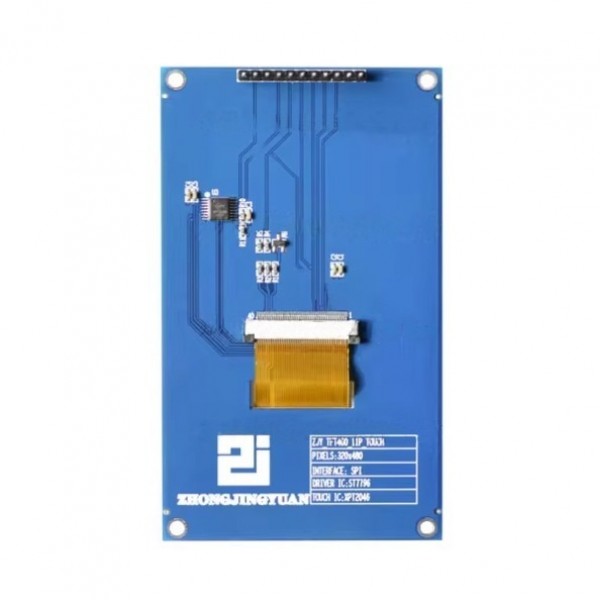

Note: The wrong driver chip may be written on the PCB.

Please login or register to review
Tags: Displays , TFT , 4 inch TFT Display 320*480 pixels with Touchscreen - SPI - ST7796S - 3.3V , 005272 , ZHONGJINGYUAN , Display , Touchscreen , SPI

Specifications

General
Brand ZHONGJINGYUAN
Minimum operating temperature [°C] -20
Maximum operating temperature [°C] 70
Features Display
Touchscreen
General physical appearance
Main color Blue
Weight [g] 59
Dimension X [mm] 107
Dimension Y [mm] 62
Mounting options Pin headers
Mounting hole(s)
Diameter mounting hole(s) [mm] 3
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 2.8
Maximum supply voltage [V DC] 3.5
Minimum IO-pin input voltage [V] 2.8
Maximum IO-pin input voltage [V] 3.5
IO-pin output voltage [V] Equal to supply voltage
Communication
Hardware interface(s) SPI
Display
Type TFT
Driver ST7796S
Screen diagonal [inch] 4
Number of pixels long side 480
Number of pixels short side 320
Display shape Rectangular
Pixel colors RGB
Touchscreen
Touchscreen controller XPT2046
Touch type Resistive
Multi-touch support No
Connectors
Power supply connector(s) Pin header male (2.54mm)
IO-connector(s) Pin header male (2.54mm)
Pinout
Power supply pin VCC
Ground/min GND
SPI MISO/CIPO MIS
SPI MOSI/COPI MOS
SPI CLK CLK
SPI data command DC
Chip select (CC/SS) CS1 (display)
CS2 (touchscreen)
Reset RES
Backlight on/off BLK
Interrupt PEN
Package contents
Package contents 1x Display module
