Name: 3.5 inch TFT Display 320*480 pixels with Touchscreen - Raspberry Pi Compatible - 3.5TFT320X480TOUCHRPI-MPI3511
SKU: 000884
Price: 14.5 EUR
Availability: InStock
Rating: 4.5 (4 reviews)

3.5 inch TFT Display 320*480 pixels with Touchscreen - Raspberry Pi Compatible

Availability: Directly available from warehouse in Eindhoven
SKU: 000884

Based on 4 review(s) - Write a review

€14.50

Ex Tax: €11.98

10 or more €14.00

20 or more €13.50

50 or more €13.25

100 or more €13.00

200 or more €12.75

500 or more €12.50

1000 or more €12.25

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

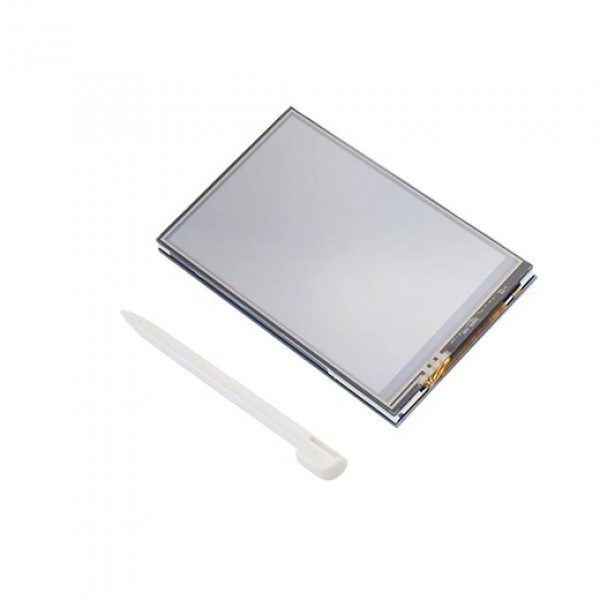

This display can be mounted directly on a Raspberry Pi 1, 2, 3 or 4, but requires additional installation of drivers. The display has a resolution of 320*480 pixels and is 3.5 inches diagonally. A resistive touchscreen is mounted on top of the display, for which a small stylus is included.

See the following page for more information: 3.5inch RPi Display

Note: A working internet connection, an external display and mouse and keyboard are required for installation.

Note: The driver for the display does not work with Raspberry Pi OS 12 (Bookworm), therefore use OS 11 (Bullseye) or lower.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over 3.5 inch TFT Display 320*480 pixels with Touchscreen - Raspberry Pi Compatible

Average Rating:

This product has 4 review(s) in total.

More documents: 000884_3.5 Inch Raspberry LCD Screen.zip

Tags: 3.5 inch TFT Display 320*480 pixels with Touchscreen - Raspberry Pi Compatible , 3.5TFT320X480TOUCHRPI-MPI3511 , TFT

Specifications

General
Brand	No brand
Features	Display Touchscreen
General physical appearance
Main color	Blue
Weight [g]	52
Dimension X [mm]	86
Dimension Y [mm]	56
Mounting options	Pin headers Mounting hole(s)
Form factor	Module (general) Raspberry Pi SBC layout/HAT
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	SPI
Display
Type	TFT
Driver	ILI9486
Screen diagonal [inch]	3.5
Number of pixels long side	480
Number of pixels short side	320
Display shape	Rectangular
Pixel colors	RGB
Touchscreen
Touchscreen controller	XPT2046
Touch type	Resistive
Multi-touch support	No
Connectors
Power supply connector(s)	Pin header female (2.54mm)
IO-connector(s)	Pin header male (2.54mm) Pin header female (2.54mm)
Package contents
Package contents	1x Display module 1x Stylus
