2.4 inch TFT Display 240*320 pixels with Touchscreen - SPI - ILI9341 - 3.3V

Based on 0 review(s) - Write a review

€9.50

Ex Tax: €7.85

10 or more €9.25

20 or more €9.00

50 or more €8.75

100 or more €8.50

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

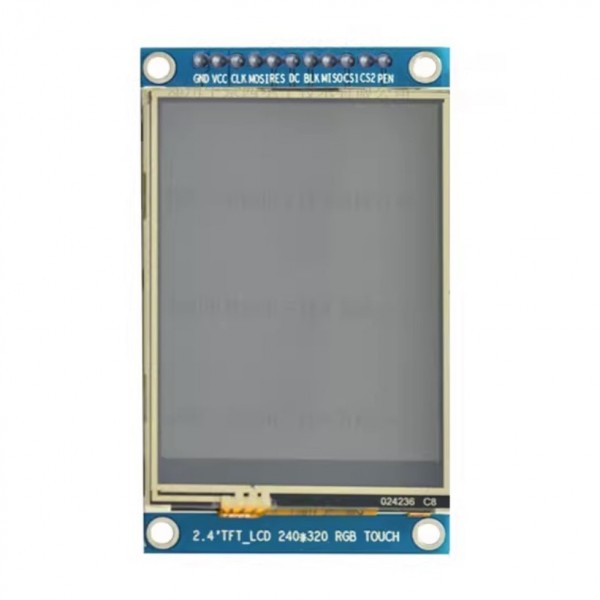

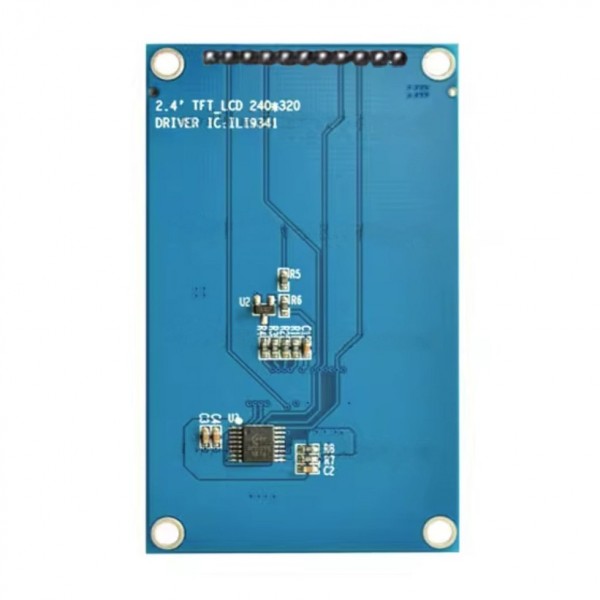

A TFT display with resistive touchscreen based on the ILI9341 driver.

Instructions display and touchscreen:
To get the display working you can use the Adafruit_ILI9341 library. This library works with the Adafruit-GFX-Library.
For the touchscreen the XPT2046_Touchscreen library can be used.

Please login or register to review

This product has 0 review(s) in total.

Tags: 2.4 inch TFT Display 240*320 pixels with Touchscreen - SPI - ILI9341 - 3.3V , ZJY-TFT240-11P-TOUCH-ILI9341 , TFT

General
Brand	ZHONGJINGYUAN
Minimum operating temperature [°C]	-20
Maximum operating temperature [°C]	70
Features	Display Touchscreen
General physical appearance
Main color	Blue
Weight [g]	28
Dimension X [mm]	72
Dimension Y [mm]	43
Mounting options	Pin headers Mounting hole(s)
Diameter mounting hole(s) [mm]	3
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	2.8
Maximum supply voltage [V DC]	3.3
Indication average current consumption [mA]	60
Minimum IO-pin input voltage [V]	2.8
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	SPI
Display
Type	TFT
Driver	ILI9341
Screen diagonal [inch]	2.4
Number of pixels long side	320
Number of pixels short side	240
Display shape	Rectangular
Pixel colors	RGB
Touchscreen
Touchscreen controller	XPT2046
Touch type	Resistive
Multi-touch support	No
Connectors
Power supply connector(s)	Pin header male (2.54mm)
IO-connector(s)	Pin header male (2.54mm)
Pinout
Power supply pin	VCC
Ground/min	GND
SPI MISO/CIPO	MISO
SPI MOSI/COPI	MOSI
SPI CLK	CLK
SPI data command	DC
Chip select (CC/SS)	CS1 (display) CS2 (touchscreen)
Reset	RES
Backlight on/off	BLK
Interrupt	PEN
Package contents
Package contents	1x Display module
