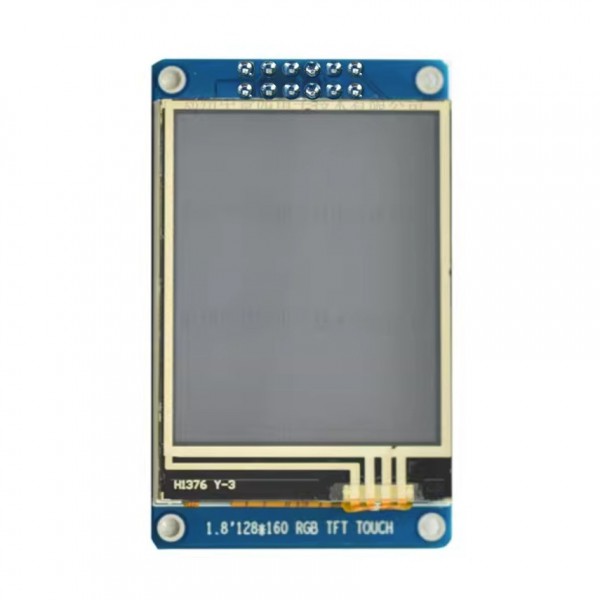

1.8 inch TFT Display 128*160 pixels with Touchscreen - SPI - ST7735S - 3.3V

Based on 0 review(s) - Write a review

€7.75

Ex Tax: €6.41

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

A TFT display with resistive touchscreen based on the ST7735S driver.

Instructions display and touchscreen:
To get the display working you can use the Adafruit-ST7735-Library. This library works with the Adafruit-GFX-Library.
For the touchscreen the XPT2046_Touchscreen library can be used.

Please login or register to review

This product has 0 review(s) in total.

Tags: 1.8 inch TFT Display 128*160 pixels with Touchscreen - SPI - ST7735S - 3.3V , ZJY180-TV2.0 , TFT

General
Brand	ZHONGJINGYUAN
Features	Display Touchscreen
General physical appearance
Main color	Blue
Weight [g]	15
Dimension X [mm]	56
Dimension Y [mm]	35
Mounting options	Pin headers Mounting hole(s)
Diameter mounting hole(s) [mm]	2
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	2.8
Maximum supply voltage [V DC]	3.3
Minimum IO-pin input voltage [V]	2.8
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	SPI
Display
Type	TFT
Driver	ST7735S
Screen diagonal [inch]	1.8
Number of pixels long side	160
Number of pixels short side	128
Display shape	Rectangular
Pixel colors	RGB
Touchscreen
Touchscreen controller	XPT2046
Touch type	Resistive
Multi-touch support	No
Connectors
Power supply connector(s)	Pin header male (2.54mm)
IO-connector(s)	Pin header male (2.54mm)

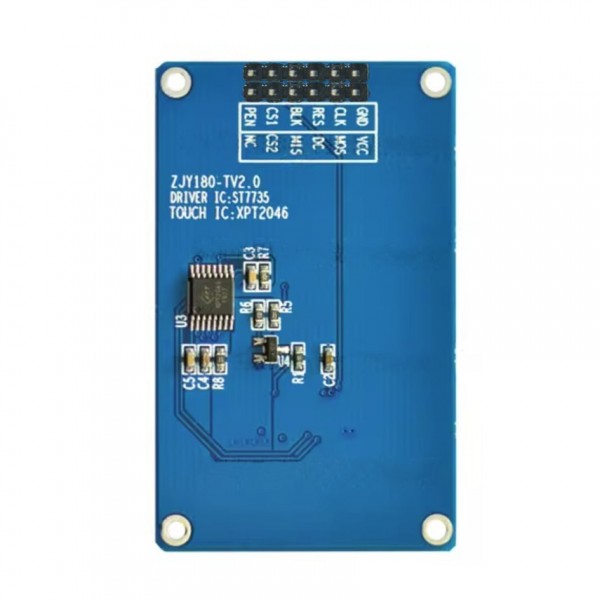

Pinout
Power supply pin	VCC
Ground/min	GND
SPI MISO/CIPO	MIS
SPI MOSI/COPI	MOS
SPI CLK	CLK
SPI data command	DC
Chip select (CC/SS)	CS1 (display) CS2 (touchscreen)
Reset	RES
Backlight on/off	BLK
Interrupt	PEN
Package contents
Package contents	1x Display module
