1.44 inch TFT Display 128*128 pixels - SPI - ST7735S - 5V

1.44 inch TFT Display 128*128 pixels - SPI - ST7735S - 5V
1.44 inch TFT Display 128*128 pixels - SPI - ST7735S - 5V
1.44 inch TFT Display 128*128 pixels - SPI - ST7735S - 5V
1.44 inch TFT Display 128*128 pixels - SPI - ST7735S - 5V
1.44 inch TFT Display 128*128 pixels - SPI - ST7735S - 5V
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005274
Based on 0 review(s) - Write a review
€6.50
Ex Tax: €5.37
Add to Cart
Add to wishlist

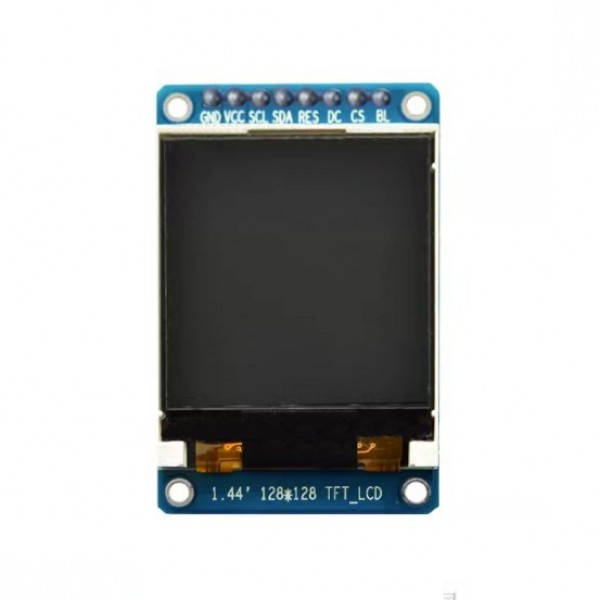

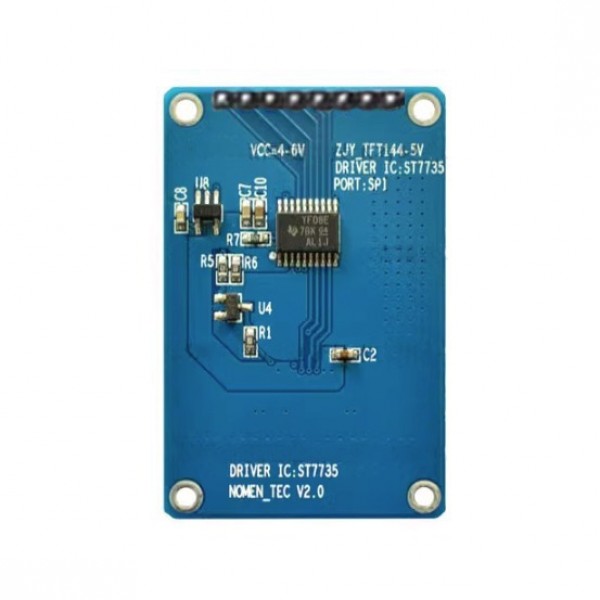

A small TFT display based on the ST7735S driver. This version of the display works at 5V.

Instructions display:
To get the display working you can use the Adafruit-ST7735-Library. This library works with the Adafruit-GFX-Library. This library may need to be installed separately.

Please login or register to review

Reviews Over 1.44 inch TFT Display 128*128 pixels - SPI - ST7735S - 5V

This product has 0 review(s) in total.

Tags: Displays , TFT , 1.44 inch TFT Display 128*128 pixels - SPI - ST7735S - 5V , 005274 , ZHONGJINGYUAN , Display , SPI

Specifications

General
Brand ZHONGJINGYUAN
Minimum operating temperature [°C] -20
Maximum operating temperature [°C] 70
Features Display
General physical appearance
Main color Blue
Weight [g] 9
Dimension X [mm] 47
Dimension Y [mm] 30
Mounting options Pin headers
Mounting hole(s)
Diameter mounting hole(s) [mm] 2
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 4
Maximum supply voltage [V DC] 6
Minimum IO-pin input voltage [V] 4
Maximum IO-pin input voltage [V] 6
Communication
Hardware interface(s) SPI
Display
Type TFT
Driver ST7735S
Screen diagonal [inch] 1.44
Number of pixels long side 128
Number of pixels short side 128
Display shape Square
Pixel colors RGB
Connectors
Power supply connector(s) Pin header male (2.54mm)
IO-connector(s) Pin header male (2.54mm)
Pinout
Power supply pin VCC
Ground/min GND
SPI MOSI/COPI SDA
SPI CLK SCL
SPI data command DC
Chip select (CC/SS) CS
Reset RES
Backlight on/off BLK
Package contents
Package contents 1x Display module
