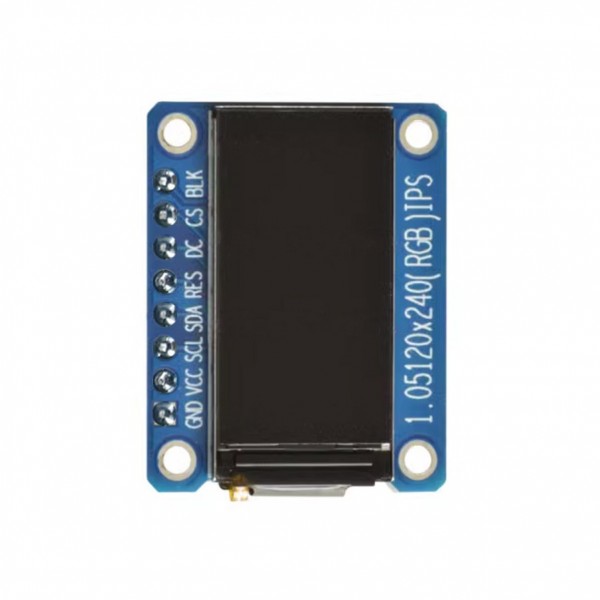

1.05 inch IPS-TFT Display 120*240 pixels - SPI - GC9A01 - 3.3V

Based on 0 review(s) - Write a review

€7.00

Ex Tax: €5.79

Qty

Add to Cart

Add to wishlist

Only 7 pieces in stock

A IPS-TFT display based on the GC9A01 driver.

Instructions display:
To get the display working you can use the Adafruit-GC9A01A library. This library works with the Adafruit-GFX-Library.

Please login or register to review

This product has 0 review(s) in total.

Tags: 1.05 inch IPS-TFT Display 120*240 pixels - SPI - GC9A01 - 3.3V , ZJY105S0800TG01-GC9A01 , TFT

General
Brand	ZHONGJINGYUAN
Minimum operating temperature [°C]	-20
Maximum operating temperature [°C]	70
Features	Display
General physical appearance
Main color	Blue
Weight [g]	4
Dimension X [mm]	30
Dimension Y [mm]	24
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	2
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	3.3
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
Communication
Hardware interface(s)	SPI
Display
Type	IPS
Driver	GC9A01
Screen diagonal [inch]	1.05
Number of pixels long side	240
Number of pixels short side	120
Display shape	Rectangular
Pixel colors	RGB
Connectors
Power supply connector(s)	Pin header male (2.54mm)
IO-connector(s)	Pin header male (2.54mm)
Pinout
Power supply pin	VCC
Ground/min	GND
SPI MOSI/COPI	SDA
SPI CLK	SCL
SPI data command	DC
Chip select (CC/SS)	CS
Reset	RES
Backlight on/off	BLK
Package contents
Package contents	1x Display module
