Waveshare 1.51 inch Transparent OLED Display 128*64 pixels - Blue - SPI

Based on 0 review(s) - Write a review

€19.00

Ex Tax: €15.70

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

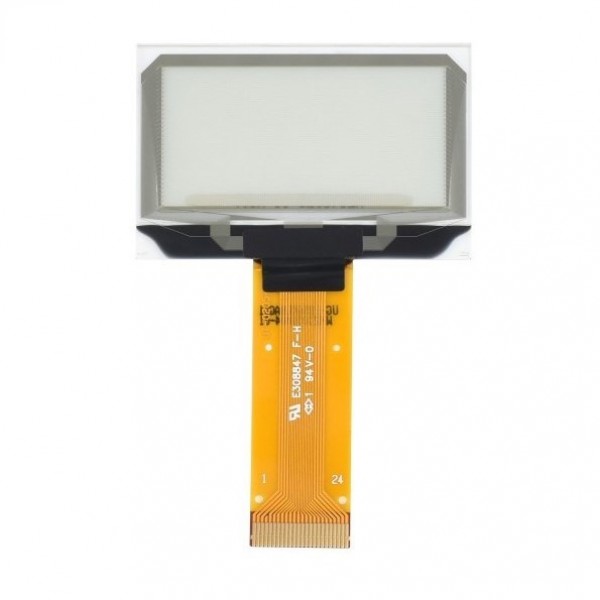

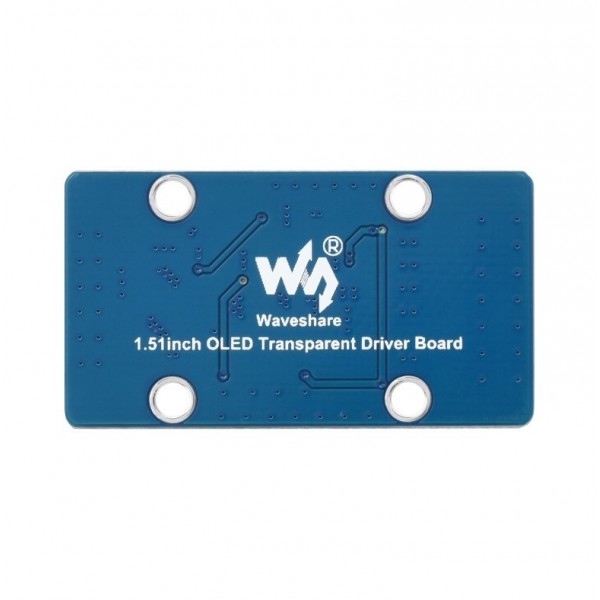

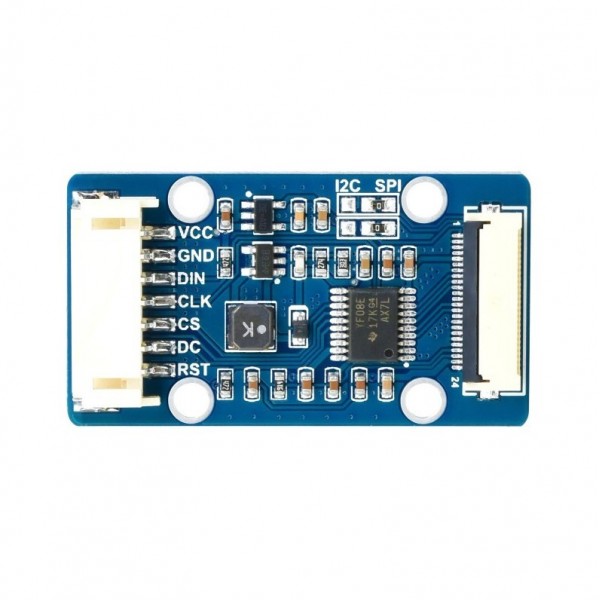

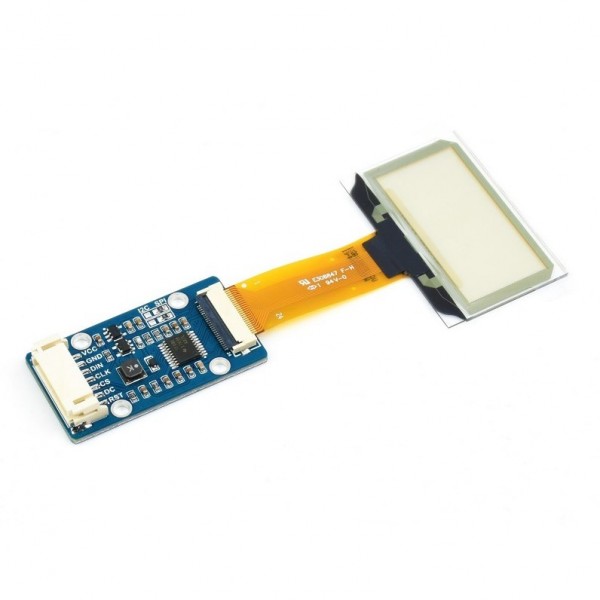

A transparent OLED display from Waveshare. The display comes with a driver board, and can be controlled via SPI.

See the following page for more information: Wiki

Please login or register to review

This product has 0 review(s) in total.

Tags: Waveshare 1.51 inch Transparent OLED Display 128*64 pixels - Blue - SPI , WS-22545 , OLED

General
Brand	Waveshare
Manufacturer model/SKU	22545
Features	Display
General physical appearance
Main color	Blue
Weight [g]	8 (driver PCB + display)

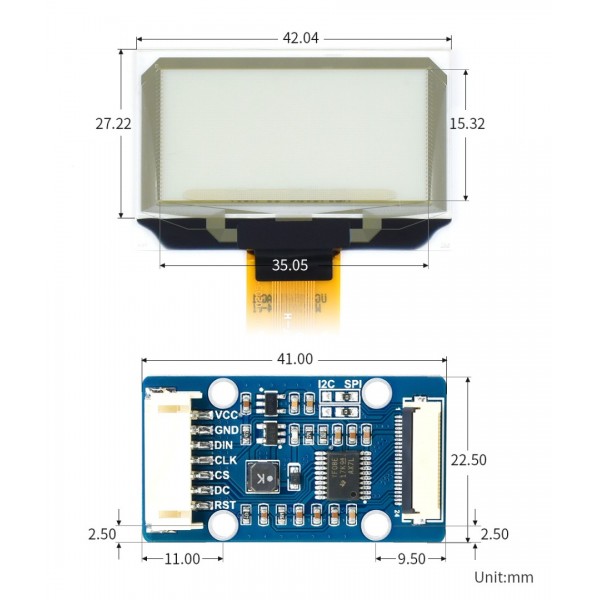

Dimension X [mm]	42 (display) 41 (PCB)
Dimension Y [mm]	27 (display) 22.5 (PCB)
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3.1
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	5
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	SPI I2C (requires modification)
Display
Type	OLED
Driver	SSD1309
Screen diagonal [inch]	1.51
Number of pixels long side	128
Number of pixels short side	64
Display shape	Rectangular
Pixel colors	Blue
Connectors
Power supply connector(s)	JST-PH (compatible) male
IO-connector(s)	JST-PH (compatible) male
Package contents
Package contents	1x 1.51 inch transparent OLED display 1x JST-PH to DuPont (compatible) cable 7p 4x Spacer 4x Bolt
