Seeed Studio Grove OLED Display 1.12 inch - 128*128 pixels - White - SH1107

Availability: Directly available from warehouse in Eindhoven
SKU: 003773

Based on 0 review(s) - Write a review

€16.00

Ex Tax: €13.22

Qty

Add to Cart

Add to wishlist

Only 7 pieces in stock

Description
Reviews

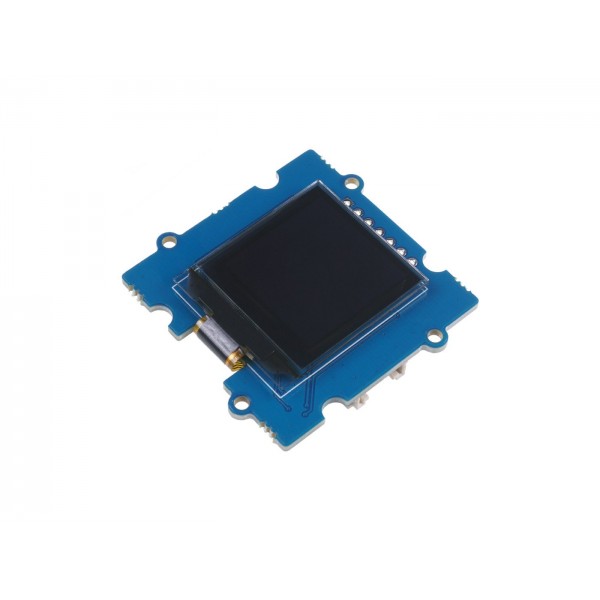

A module with an OLED display from Seeed Studio. With the built-in Grove connection and included Grove cable, the module can easily be connected to the microcontroller boards from Seeed Studio.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Seeed Studio Grove OLED Display 1.12 inch - 128*128 pixels - White - SH1107

Average Rating:

This product has 0 review(s) in total.

Tags: Seeed Studio Grove OLED Display 1.12 inch - 128*128 pixels - White - SH1107 , SEEED-104020250 , OLED

Specifications

General
Brand	Seeed Studio
Manufacturer model/SKU	104020250
Features	Display
General physical appearance
Main color	Blue
Weight [g]	5

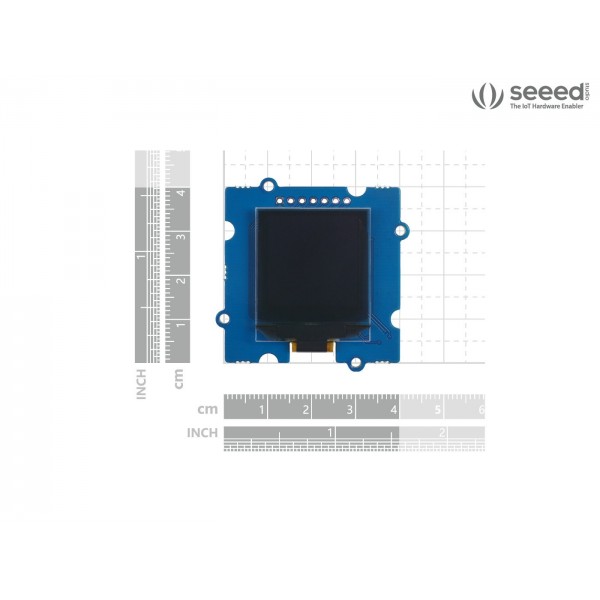

Dimension X [mm]	40
Dimension Y [mm]	40
Mounting options	Mounting hole(s)
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	5
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	I2C
Default I2C address	0x3C

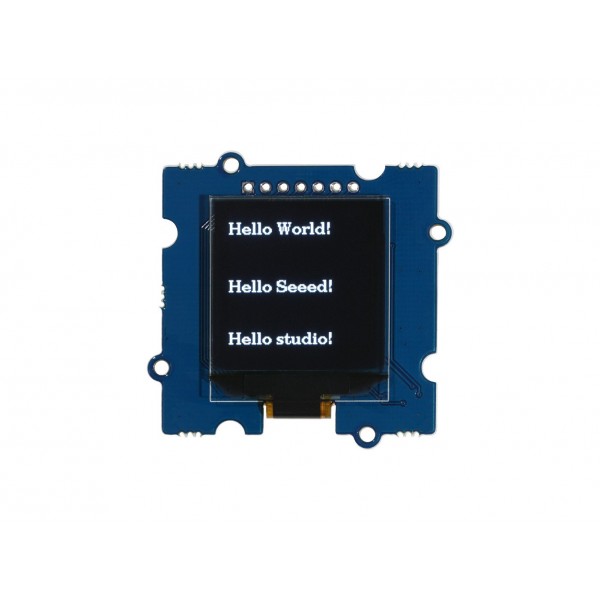

Display
Type	OLED
Driver	SH1107
Screen diagonal [inch]	1.12
Number of pixels long side	128
Number of pixels short side	128
Display shape	Square
Pixel colors	White
Connectors

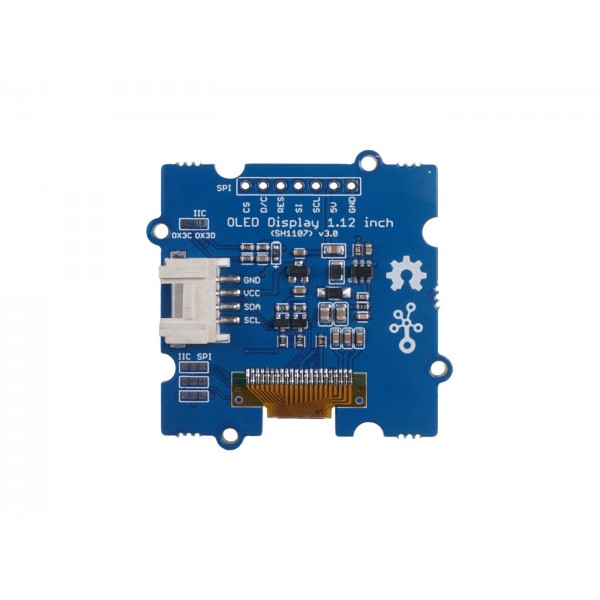

Power supply connector(s)	HY2.0 (Grove) male Through hole solder pin(s) (2.54mm)
IO-connector(s)	HY2.0 (Grove) male Through hole solder pin(s) (2.54mm)
Package contents

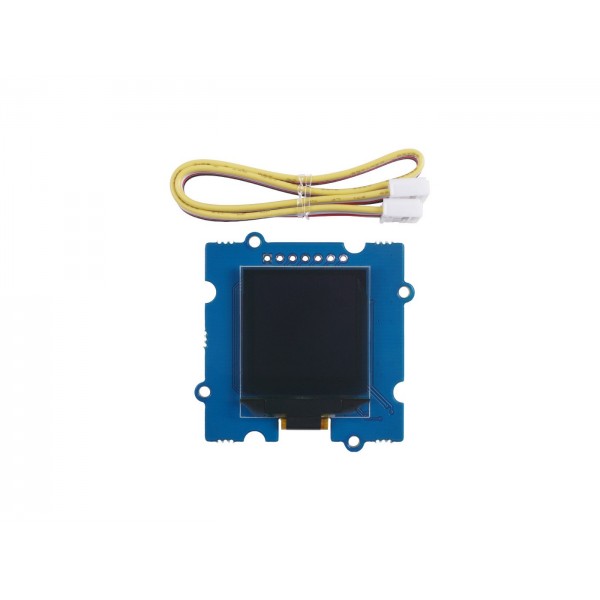

Package contents	1x Display module 1x Grove cable
