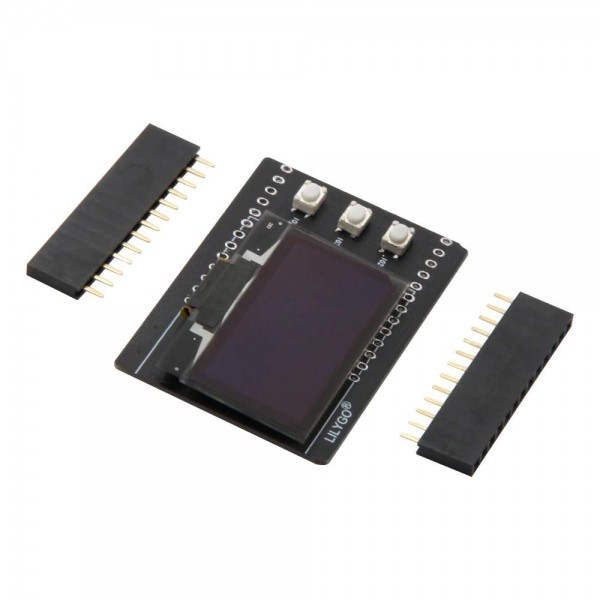

LilyGO T-Beam 1.3 Inch OLED Display Shield

Based on 0 review(s) - Write a review

€9.50

Ex Tax: €7.85

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

This is a shield for the LilyGO T-Beam with a display and 3 programmable buttons.

Please login or register to review

This product has 0 review(s) in total.

Tags: LilyGO T-Beam 1.3 Inch OLED Display Shield , LILYGO-H531 , OLED

General
Brand	LilyGO TTGO
Manufacturer model/SKU	H531
Features	Display Programmable button(s)
General physical appearance
Main color	Black
Weight [g]	7
Dimension X [mm]	48
Dimension Y [mm]	33
Form factor	Module (general) T-Beam layout/shield
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	I2C
Display
Type	OLED
Driver	SH1106
Screen diagonal [inch]	1.3
Number of pixels long side	128
Number of pixels short side	64
Display shape	Rectangular
Pixel colors	White
Switch
Switching method	Physical (sensor switch)
Switch type	Push
Number of channels/gangs	3
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm)
IO-connector(s)	Through hole solder pin(s) (2.54mm)
Package contents
Package contents	1x T-Beam OLED Shield 1x Female pin header set
