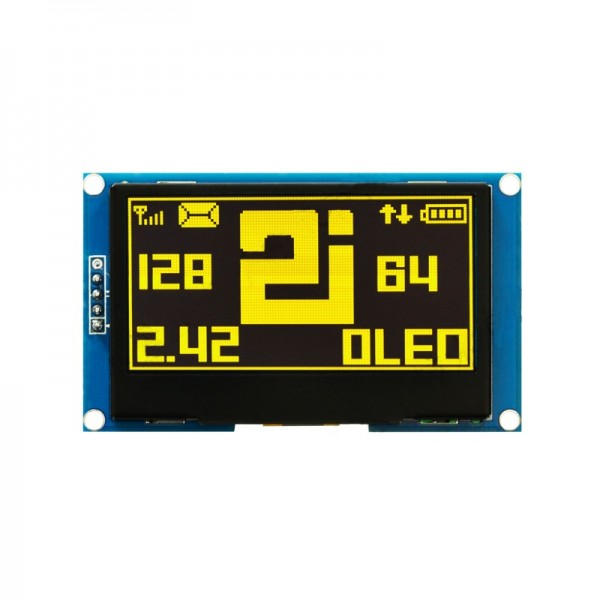

2.42 inch OLED Display 128*64 pixels - Yellow - I2C

Availability: Directly available from warehouse in Eindhoven
SKU: 004990

Based on 2 review(s) - Write a review

€13.00

Ex Tax: €10.74

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

An OLED display with I2C communication. This display works on 3.3V, so use a level converter if you have a 5V microcontroller.

See the following page for an Arduino library: Adafruit SSD1305
In the example, the SPI initialization is set by default, but use the I2C initialization a few lines below. The OLED_RESET pin can be set to -1.
This library is written for the SSD1305 driver, but it's also compatible with the SSD1309 used in this display.

Please login or register to review

Reviews Over 2.42 inch OLED Display 128*64 pixels - Yellow - I2C

Average Rating:

This product has 2 review(s) in total.

Tags: 2.42 inch OLED Display 128*64 pixels - Yellow - I2C , ZJY-2.42OLEDYELLOW , OLED

Specifications

General
Brand	ZHONGJINGYUAN
Features	Display
General physical appearance
Main color	Blue
Weight [g]	23

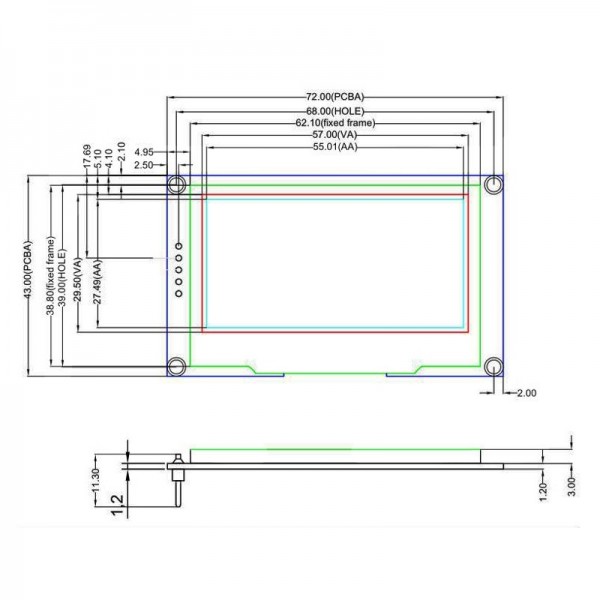

Dimension X [mm]	72
Dimension Y [mm]	43
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	2.8
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	3.3
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	I2C
Default I2C address	0x3C
Adjustable I2C address	No
Built-in pull-up resistor(s) [kΩ]	4.7
Display
Type	OLED
Driver	SSD1309
Screen diagonal [inch]	2.42
Number of pixels long side	128
Number of pixels short side	64
Display shape	Rectangular
Pixel colors	Yellow
Connectors
Power supply connector(s)	Pin header male (2.54mm)
IO-connector(s)	Pin header male (2.54mm)
Package contents
Package contents	1x Display module
