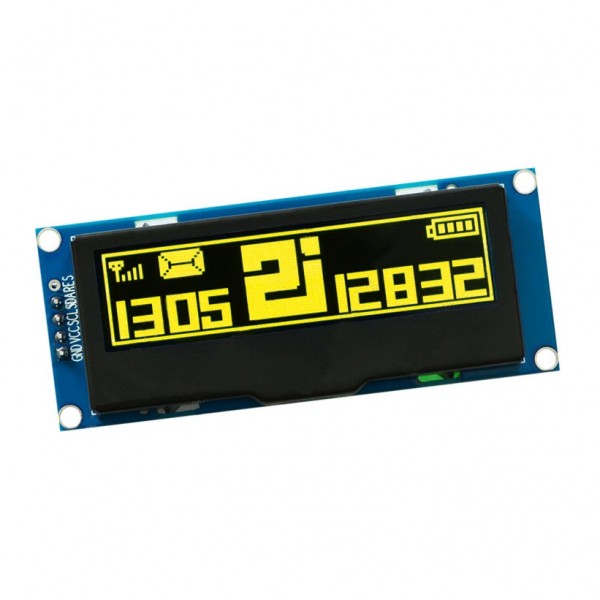

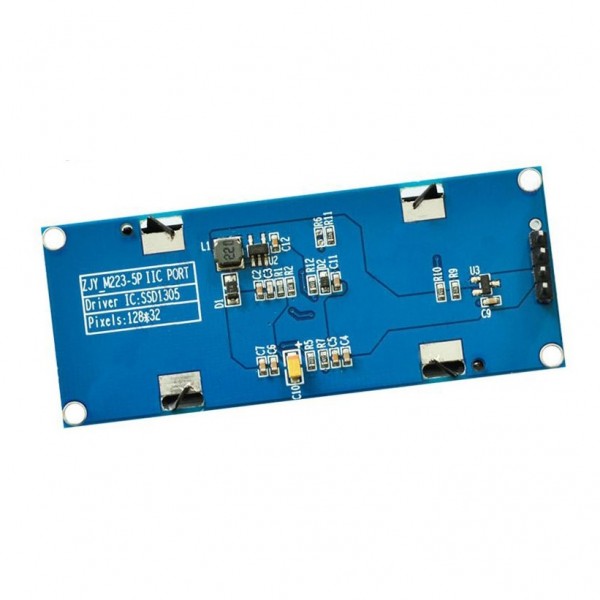

2.23 inch OLED Display 128*32 pixels - Yellow - I2C

Availability: Directly available from warehouse in Eindhoven
SKU: 004961

Based on 0 review(s) - Write a review

€11.50

Ex Tax: €9.50

Qty

Add to Cart

Add to wishlist

Only 9 pieces in stock

Description
Reviews

An OLED display with I2C communication. This display works on 3.3V, so use a level converter if you have a 5V microcontroller.

See the following page for an Arduino library: Adafruit SSD1305
In the example, the SPI initialization is set by default, but use the I2C initialization a few lines below. The OLED_RESET pin can be set to -1.

Please login or register to review

Reviews Over 2.23 inch OLED Display 128*32 pixels - Yellow - I2C

Average Rating:

This product has 0 review(s) in total.

Tags: 2.23 inch OLED Display 128*32 pixels - Yellow - I2C , ZJY-2.23OLEDYELLOW , OLED

Specifications

General
Brand	ZHONGJINGYUAN
Features	Display
General physical appearance
Main color	Blue
Weight [g]	19
Dimension X [mm]	74
Dimension Y [mm]	30
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	2.8
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	3.3
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	I2C
Default I2C address	0x3C
Adjustable I2C address	No
Built-in pull-up resistor(s) [kΩ]	4.7
Display
Type	OLED
Driver	SSD1305
Screen diagonal [inch]	2.23
Number of pixels long side	128
Number of pixels short side	32
Display shape	Rectangular
Pixel colors	Yellow
Connectors
Power supply connector(s)	Pin header male (2.54mm)
IO-connector(s)	Pin header male (2.54mm)
Package contents
Package contents	1x Display module
