Name: 0.96 inch OLED Display 128*64 pixels White - I2C - I2C0.96OLEDWHITE
SKU: 001256
Price: 7 EUR
Availability: InStock

0.96 inch OLED Display 128*64 pixels White - I2C

Based on 0 review(s) - Write a review

€7.00

Ex Tax: €5.79

10 or more €6.50

25 or more €6.00

50 or more €5.50

100 or more €5.00

Qty

Add to Cart

Add to wishlist

200+ pieces in stock

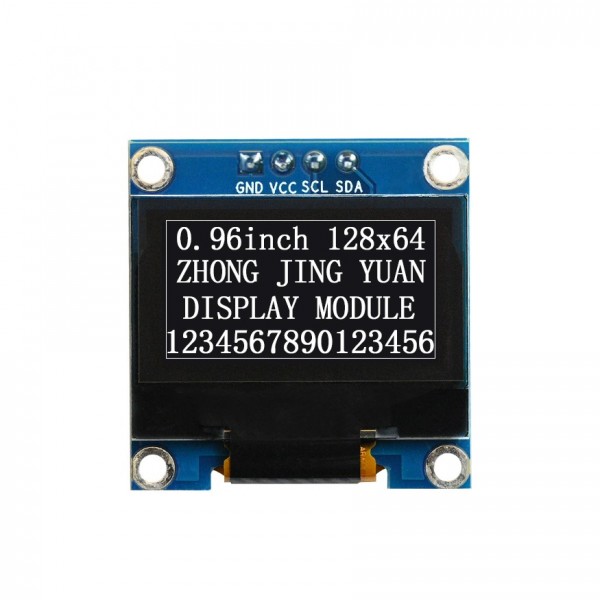

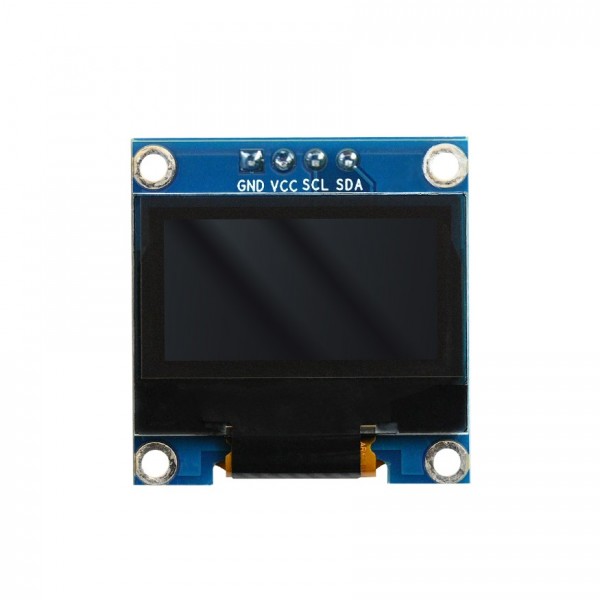

A 0.96 inch I2C OLED display with 128*64 white pixels and very good viewing angles of at least 160 degrees.

See the following pages for libraries for the Arduino IDE:

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

This product has 0 review(s) in total.

Tags: 0.96 inch OLED Display 128*64 pixels White - I2C , I2C0.96OLEDWHITE , OLED

General
Brand	ZHONGJINGYUAN
Manufacturer model/SKU	ZJY096I0400WG01
Features	Display
General physical appearance
Main color	Blue
Weight [g]	4
Dimension X [mm]	28
Dimension Y [mm]	28
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	2
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	I2C
Default I2C address	0x3C (=0x78)

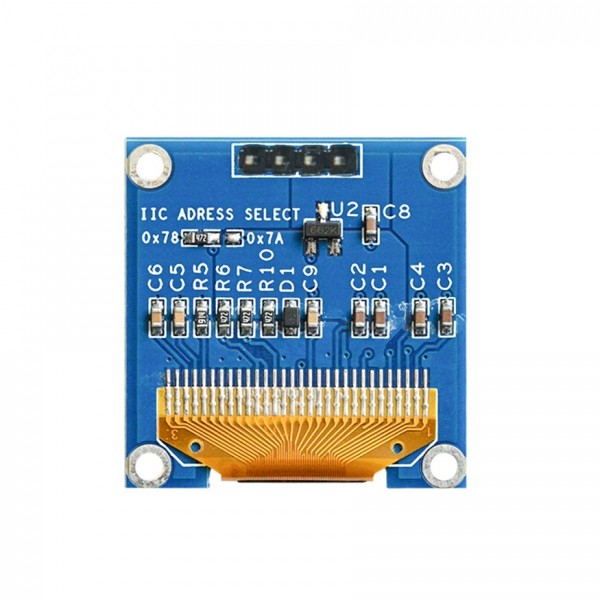

Adjustable I2C address	Yes (via resistor modification)
Built-in pull-up resistor(s) [kΩ]	4.7
Display
Type	OLED
Driver	SSD1306
Screen diagonal [inch]	0.96
Number of pixels long side	128
Number of pixels short side	64
Display shape	Rectangular
Pixel colors	White
Connectors
Power supply connector(s)	Pin header male (2.54mm)
IO-connector(s)	Pin header male (2.54mm)
Pinout
Power supply pin	VCC
Ground/min	GND
I2C SDA	SDA
I2C SCL	SCL
Package contents
Package contents	1x Display module
