Keyestudio 16x2 1602 I2C LCD Display - White Characters and Blue Background

Based on 0 review(s) - Write a review

€7.50

Ex Tax: €6.20

Qty

Add to Cart

Add to wishlist

100+ pieces in stock

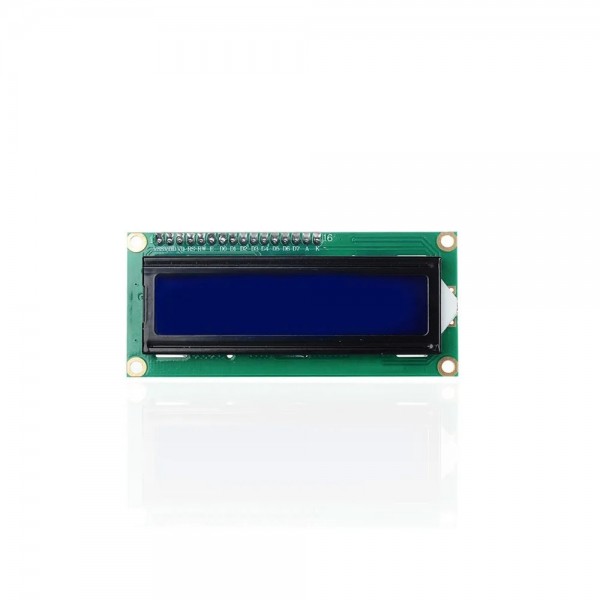

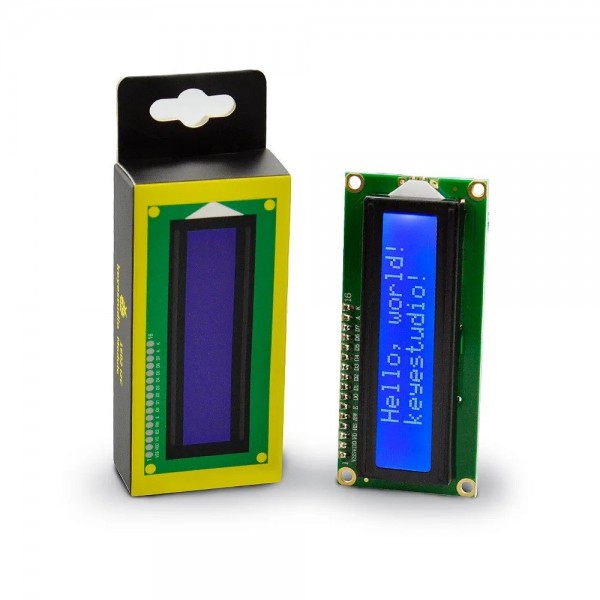

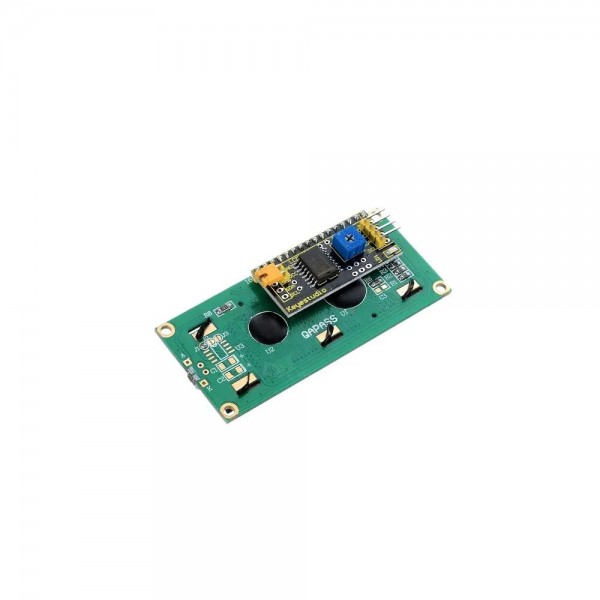

An LCD display with an I2C backback from Keyestudio.

See the following page for more information: Wiki

Please login or register to review

This product has 0 review(s) in total.

Tags: Keyestudio 16x2 1602 I2C LCD Display - White Characters and Blue Background , KS0061 , LCD

General
Brand	Keyestudio
Manufacturer model/SKU	KS0061
Features	Display
General physical appearance
Main color	Green
Weight [g]	35
Dimension X [mm]	80
Dimension Y [mm]	36
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	5
Maximum IO-pin input voltage [V]	5
IO-pin output voltage [V]	5
Communication
Hardware interface(s)	I2C
Default I2C address	0x27
Built-in pull-up resistor(s) [kΩ]	None
Display
Type	LCD
Driver	HD44780 (via PCF8574 IO-expander)
Number of characters	32
Display shape	Rectangular
Pixel colors	White
Backlight color	Blue
Connectors
Power supply connector(s)	Pin header male (2.54mm)
IO-connector(s)	Pin header male (2.54mm)
Package contents
Package contents	1x Display module
