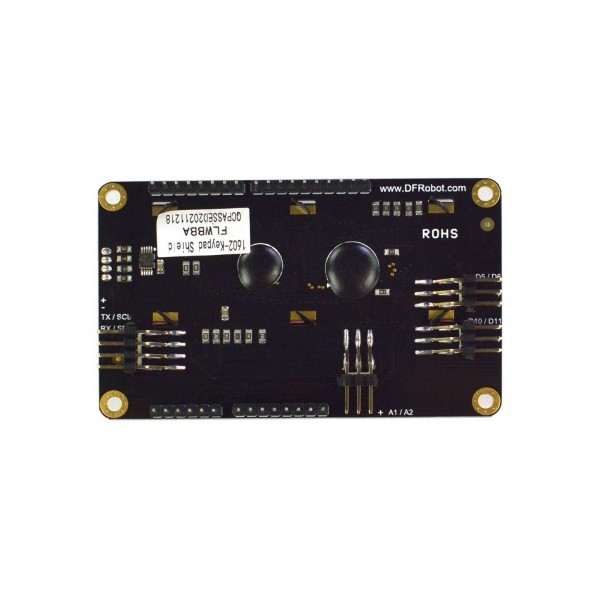

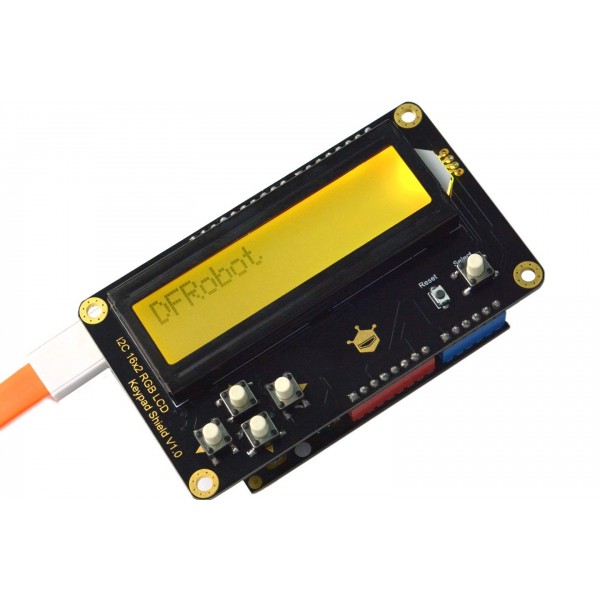

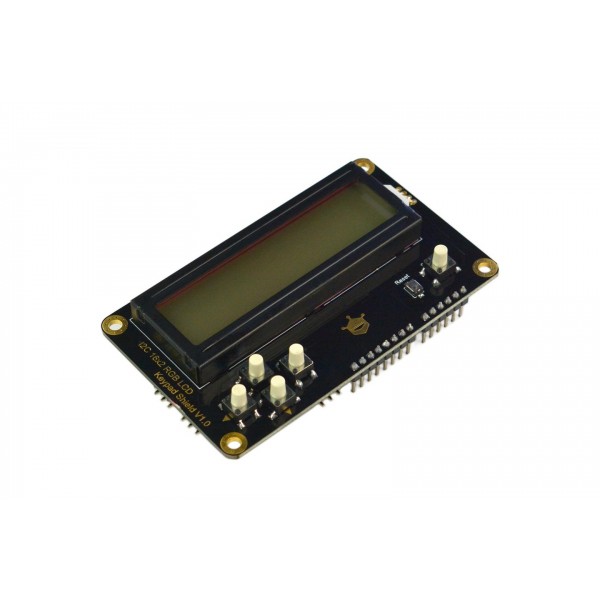

DFRobot I2C 16x2 RGB LCD Keypad Shield with Black Font - for Arduino
- Availability: Directly available from warehouse in Eindhoven
- SKU: 004027
€14.50
Ex Tax: €11.98
Your shopping cart is empty!
This LCD display shield has RGB backlighting. In addition, the module has 5 usable buttons that can be read via a single analog pin. The form factor makes the shield quick and easy to place on an Arduino Uno.
See the following page for more information: Wiki
This product has 0 review(s) in total.
| General | |
| Brand | DFRobot |
| Manufacturer model/SKU | DFR0374 |
| Minimum operating temperature [°C] | -20 |
| Maximum operating temperature [°C] | 70 |
| Features | Display Programmable button(s) |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 47 |
| Dimension X [mm] | 87 |
| Dimension Y [mm] | 52 |
| Mounting options | Pin headers Mounting hole(s) |
| Diameter mounting hole(s) [mm] | 3 |
| Form factor | Module (general) Uno layout/shield |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 5 |
| Maximum IO-pin input voltage [V] | 5 |
| IO-pin output voltage [V] | 5 |
| Communication | |
| Hardware interface(s) | I2C Analog |
| Adjustable I2C address | No |
| Display | |
| Type | LCD |
| Number of characters | 32 |
| Display shape | Rectangular |
| Pixel colors | Black |
| Backlight color | RGB |
| Switch | |
| Switching method | Physical (sensor switch) |
| Switch type | Push |
| Number of channels/gangs | 5 |
| Connectors | |
| Power supply connector(s) | Pin header male (2.54mm) |
| IO-connector(s) | Pin header male (2.54mm) |
| Package contents | |
| Package contents | 1x LCD keypad shield |
